Datasheet Wago 221 — Даташит

Производитель	Wago
Серия	221

Цены

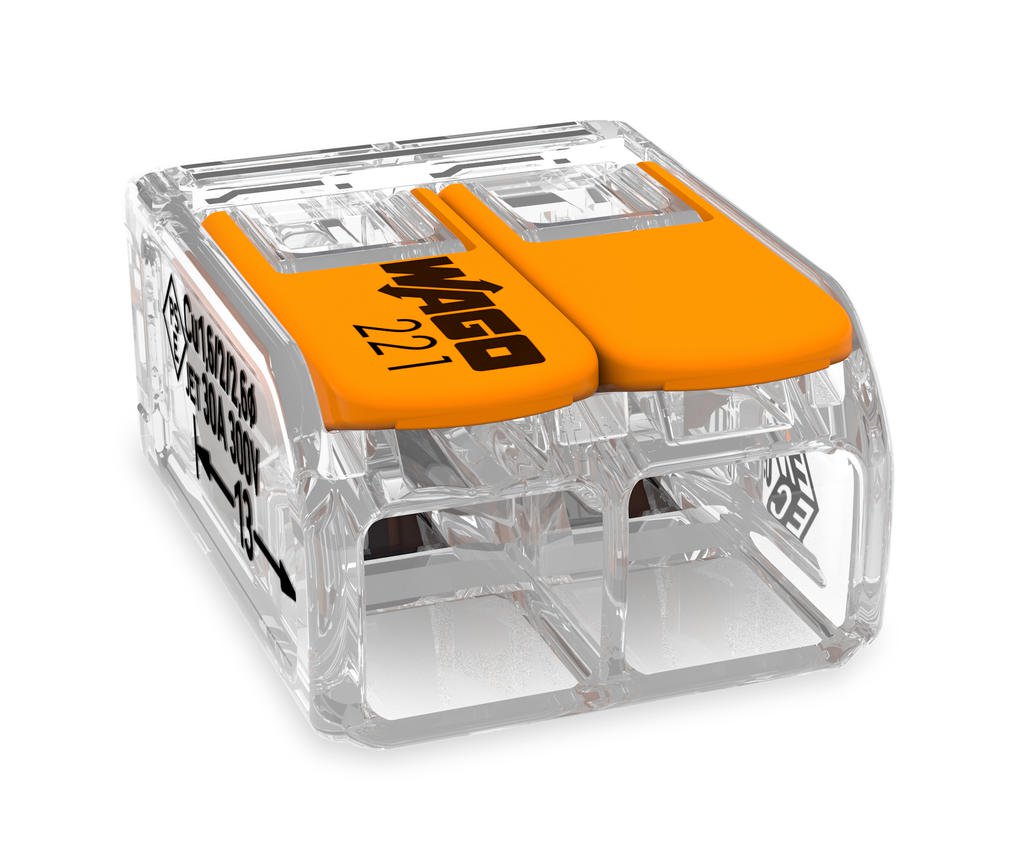

Купить 221-412 на РадиоЛоцман.Цены — от 0.59 до 1 786 ₽ 55 предложений от 27 поставщиков Съемная клеммная колодка, 2 вывод(-ов), 24AWG до 12AWG, 4 мм², Вставной Замок, 32 А
Элитан Россия	LD221-412	13 ₽
Оптулс Россия	221-412 WAGO Wago	44 ₽
TradeElectronics Россия	3405.2214.12 Schurter	по запросу
AllElco Electronics Весь мир	221-412 Wago	по запросу

Параметры

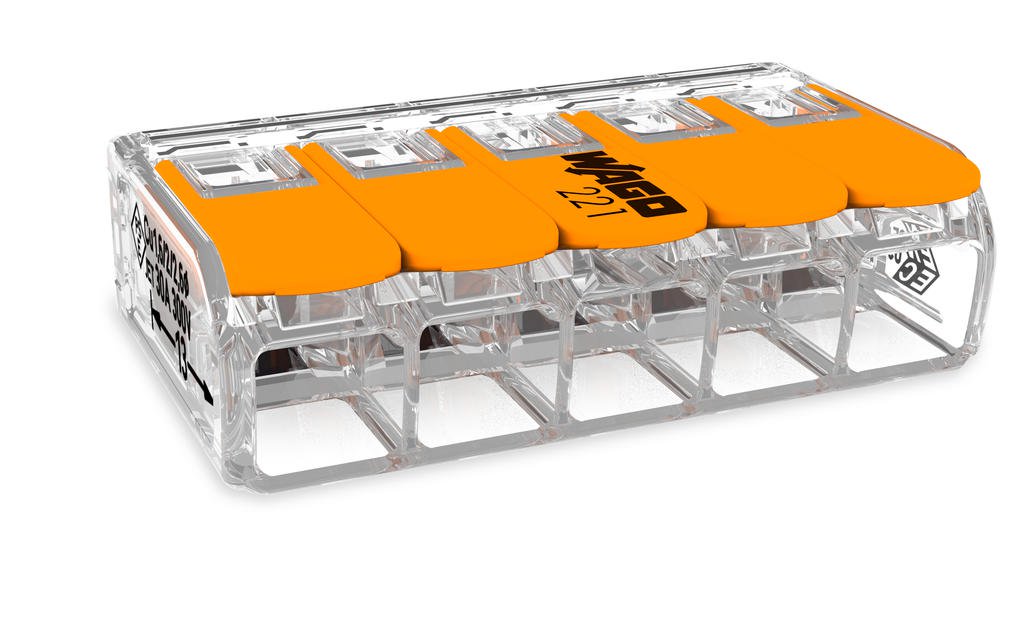

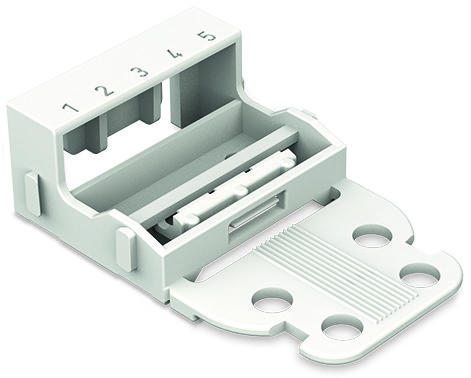

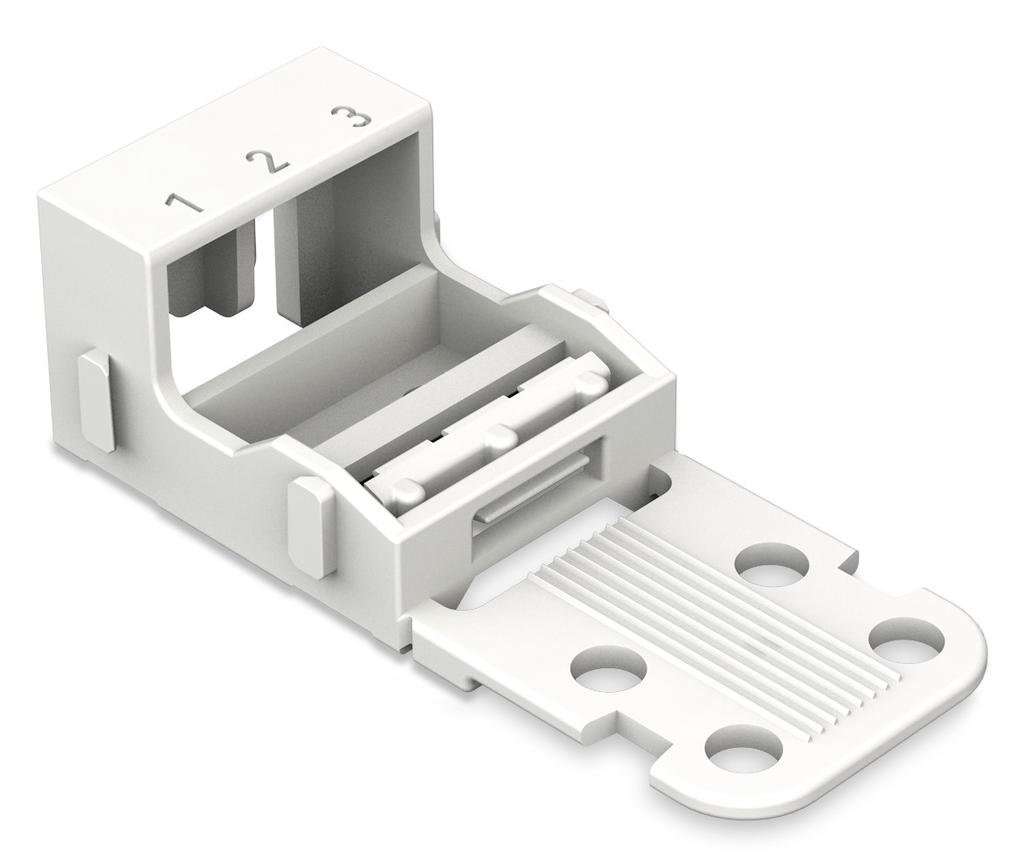

Parameters / Models	221-412	221-413	221-415	221-500	221-502	221-502/000-004	221-503	221-503/000-004	221-505	221-505/000-004	221-510	221-512	221-512/000-004	221-513	221-513/000-004	221-515	221-515/000-004	221-522	221-522/000-004	221-523	221-523/000-004	221-525	221-525/000-004	221-612	221-613	221-615
Actuation type	Lever	Lever	Lever																					Lever	Lever	Lever
Цвет	transparent	transparent	transparent	orange	white	black	white	black	white	black	orange	white	black	white	black	white	black	white	black	white	black	white	black	transparent	transparent	transparent
Connectable conductor materials	Copper	Copper	Copper																					Copper	Copper	Copper
Connection technology	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®																					CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®
Country of origin	DE	DE	DE	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	CN	DE	DE	DE
Габариты: глубина	18.6 mm / 0.732 inch	18.6 mm / 0.732 inch	18.6 mm / 0.732 inch	77.6 mm / 3.055 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	94.2 mm / 3.709 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	21.1 mm / 0.831 inch	21.1 mm / 0.831 inch	21.1 mm / 0.831 inch
Fine-stranded conductor	0.14 … 4 mm² / 24 … 12 AWG	0.14 … 4 mm² / 24 … 12 AWG	0.14 … 4 mm² / 24 … 12 AWG																					0.5 … 6 mm² / 20 … 10 AWG	0.5 … 6 mm² / 20 … 10 AWG	0.5 … 6 mm² / 20 … 10 AWG
Fire load, MJ					0.078	0.079	0.103	0.103	0.143	0.143		0.083	0.083	0.106	0.106	0.146	0.146	0.083	0.081	0.106	0.106	0.146	0.146
Flammability class per UL94	V2	V2	V2	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V2	V2	V2
GTIN	4050821808435	4050821808442	4055143234658	4055143421942	4055143595827	4055143595865	4055143640794	4055143640800	4055143640831	4055143640848	4055143736695	4055143595834	4055143595872	4055143640855	4055143640916	4055143640893	4055143640923	4055143595858	4055143595889	4055143640930	4055143640954	4055143640961	4055143640978	4055143704168	4055143715416	4055143715478
Height	8.3 mm / 0.327 inch	8.3 mm / 0.327 inch	8.3 mm / 0.327 inch									21.4 mm / 0.843 inch	21.4 mm / 0.843 inch	21.4 mm / 0.843 inch	21.4 mm / 0.843 inch	21.4 mm / 0.843 inch	21.4 mm / 0.843 inch	57.3 mm / 2.256 inch	57.3 mm / 2.256 inch	57.3 mm / 2.256 inch	57.3 mm / 2.256 inch	57.3 mm / 2.256 inch	57.3 mm / 2.256 inch	10.1 mm / 0.398 inch	10.1 mm / 0.398 inch	10.1 mm / 0.398 inch
Height from the surface					16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch		16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	16.9 mm / 0.665 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch	52.8 mm / 2.079 inch

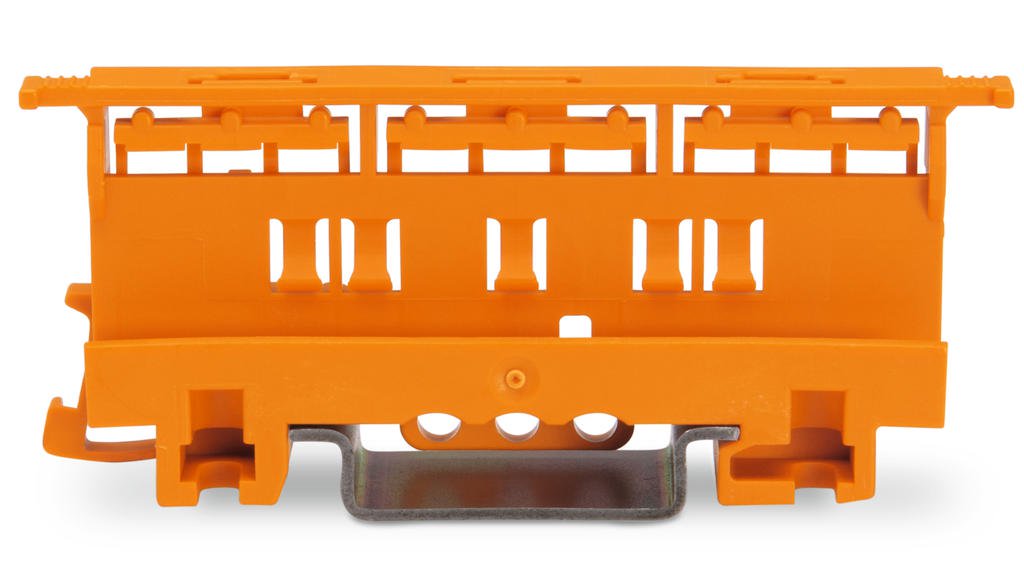

Height from upper-edge of DIN-35 rail				25.5 mm / 1.004 inch							28.3 mm / 1.114 inch
Insulating material				Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(II / 2) ≙ Overvoltage category II / Pollution degree 2	(II / 2) ≙ Overvoltage category II / Pollution degree 2	(II / 2) ≙ Overvoltage category II / Pollution degree 2																					(II / 2) ≙ Overvoltage category II / Pollution degree 2	(II / 2) ≙ Overvoltage category II / Pollution degree 2	(II / 2) ≙ Overvoltage category II / Pollution degree 2
Nominal cross section	4 mm²	4 mm²	4 mm²																					6 mm²	6 mm²	6 mm²
Packaging type											BOX													BOX	BOX	BOX
Product Group	7 (Push Wire Conn.)	7 (Push Wire Conn.)	7 (Push Wire Conn.)
Rated current, A	32	32	32																					41	41	41
Rated impulse voltage (II / 2), kV	4	4	4																					4	4	4
Rated voltage (II / 2), В	450	450	450																					450	450	450
Solid conductor	0.2 … 4 mm² / 24 … 12 AWG	0.2 … 4 mm² / 24 … 12 AWG	0.2 … 4 mm² / 24 … 12 AWG																					0.5 … 6 mm² / 20 … 10 AWG	0.5 … 6 mm² / 20 … 10 AWG	0.5 … 6 mm² / 20 … 10 AWG
Stranded conductor	0.2 … 4 mm² / 24 … 12 AWG	0.2 … 4 mm² / 24 … 12 AWG	0.2 … 4 mm² / 24 … 12 AWG																					0.5 … 6 mm² / 20 … 10 AWG	0.5 … 6 mm² / 20 … 10 AWG	0.5 … 6 mm² / 20 … 10 AWG
Strip length	11 mm / 0.43 Inch	11 mm / 0.43 Inch	11 mm / 0.43 Inch																					12 … 14 mm / 0.47 … 0.55 Inch	12 … 14 mm / 0.47 … 0.55 Inch	12 … 14 mm / 0.47 … 0.55 Inch
Surrounding air (operating) temperature	85 °C	85 °C	85 °C																					85 °C	85 °C	85 °C
T-Marking per EN 60998	T85	T85	T85																					T85	T85	T85
Total number of connection points	2	3	5																					2	3	5
Total number of potentials	1	1	1																					1	1	1
Type of wiring	Side-entry wiring	Side-entry wiring	Side-entry wiring																					Side-entry wiring	Side-entry wiring	Side-entry wiring
Вес, г	1.6	2.527	4.048	9.57	2.72	2.632	3.6	3.6	4.91	4.91	11.89	2.76	2.76	3.58	3.58	4.95	4.95	2.86	2.696	3.75	3.75	5.06	5.06	2.55	4.014	7.13
Ширина	13.1 mm / 0.516 inch	18.7 mm / 0.736 inch	29.9 mm / 1.177 inch	17.5 mm / 0.689 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	23.7 mm / 0.933 inch	23.7 mm / 0.933 inch	35 mm / 1.378 inch	35 mm / 1.378 inch	19.3 mm / 0.76 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	23.7 mm / 0.933 inch	23.7 mm / 0.933 inch	35 mm / 1.378 inch	35 mm / 1.378 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	23.7 mm / 0.933 inch	23.7 mm / 0.933 inch	35 mm / 1.378 inch	35 mm / 1.378 inch	16 mm / 0.63 inch	22.9 mm / 0.902 inch	36.7 mm / 1.445 inch
