Datasheet Wago 224 — Даташит
| Производитель | Wago |
| Серия | 224 |
Цены
 Купить 224-101 на РадиоЛоцман.Цены — от 11 до 681 ₽48 предложений от 22 поставщиков 224-101, Клемма для освет. оборудования, (От 1,0 до 2,5) / (0,5 - 2,5) мм.кв. | |||
| Строительно-монтажная клемма СМК 224-101 для светильника на 1 проводник (1,0-2,5)/(0,5-2,5) мм², серая (100 шт./уп.) REXANT | 18 ₽ | ||
| 224-101 Wago | от 47 ₽ | ||
| 224-101 | от 47 ₽ | ||
| 224-101 Mitsubishi | по запросу | ||
Параметры

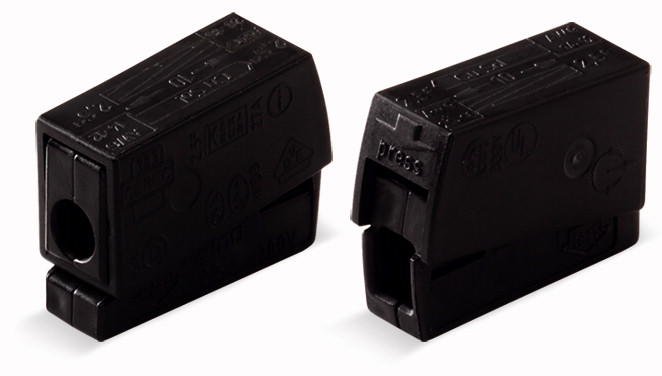

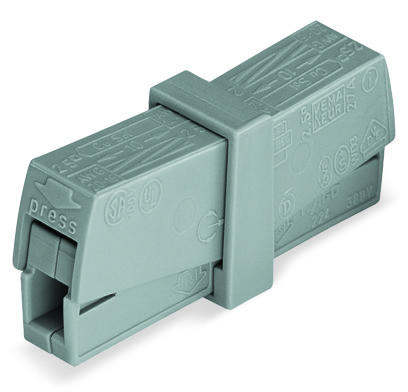

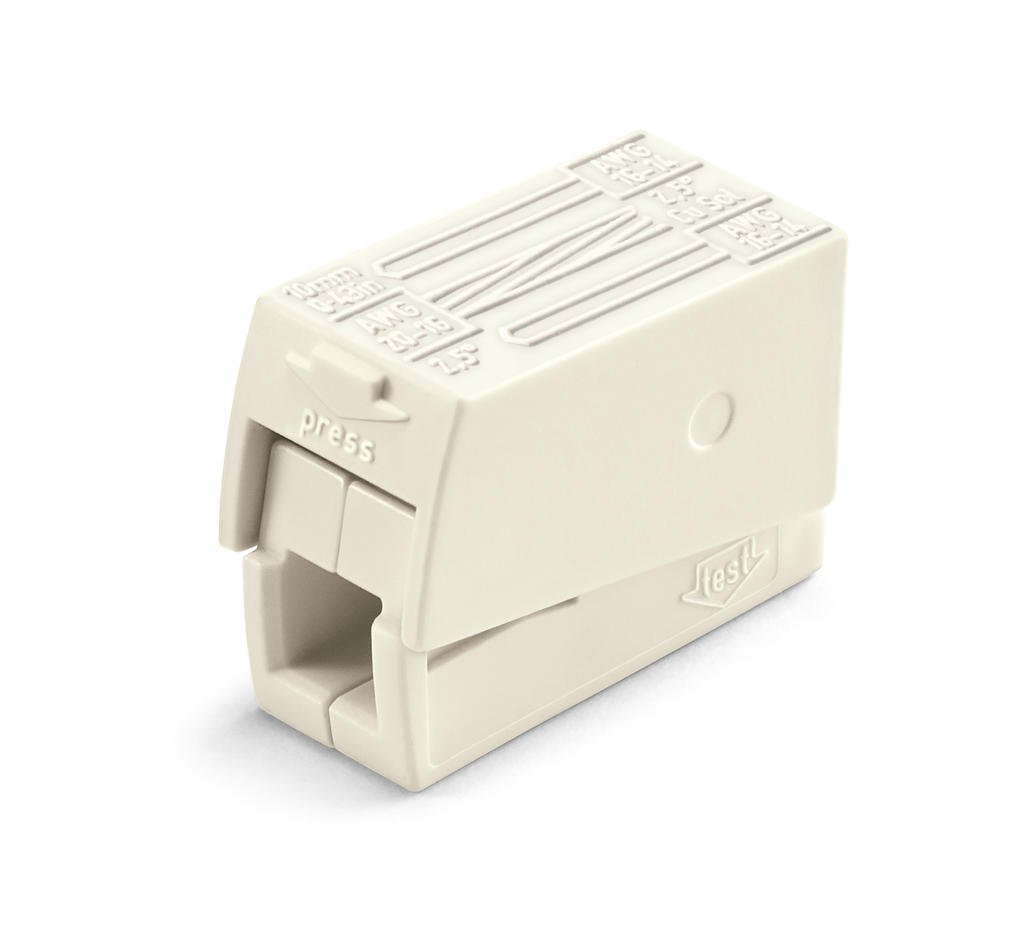

| Parameters / Models | 224-101 | 224-104 | 224-112 | 224-114 | 224-201 |
|---|---|---|---|---|---|
| Actuation type | Push-in | Push-in | Push-in | Push-in | Push-in |
| Цвет | gray | black | white | black | gray |
| Connectable conductor materials | Copper | Copper | Copper | Copper | Copper |
| Connection technology | PUSH WIRE® | PUSH WIRE® | PUSH WIRE® | PUSH WIRE® | CAGE CLAMP® |
| Connection technology 2 | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | |
| Connection type (1) | Installation side: | Installation side: | Installation side: | Installation side: | |
| Connection type (2) | Lighting side: | Lighting side: | Lighting side: | Lighting side: | |
| Country of origin | CH | CH | CH | CH | CH |
| Габариты: глубина | 20.4 mm / 0.803 inch | 20.4 mm / 0.803 inch | 20.5 mm / 0.807 inch | 20.5 mm / 0.807 inch | 42 mm / 1.654 inch |
| Fine-stranded conductor | 0.5 … 2.5 mm² / 20 … 16 AWG | ||||
| Fine-stranded conductor (2) | 0.5 … 2.5 mm² / 20 … 16 AWG | 0.5 … 2.5 mm² / 20 … 16 AWG | 0.5 … 2.5 mm² / 20 … 16 AWG | 0.5 … 2.5 mm² / 20 … 16 AWG | |
| Fire load, MJ | 0.041 | 0.051 | 0.046 | 0.057 | 0.099 |
| GTIN | 4044918583817 | 4044918584050 | 4044918583596 | 4044918583787 | 4044918818407 |
| Height | 15.5 mm / 0.61 inch | 15.5 mm / 0.61 inch | 15.5 mm / 0.61 inch | 15.5 mm / 0.61 inch | 15.5 mm / 0.61 inch |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 | (II / 2) ≙ Overvoltage category II / Pollution degree 2 | (II / 2) ≙ Overvoltage category II / Pollution degree 2 | (II / 2) ≙ Overvoltage category II / Pollution degree 2 | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
| Number of connection points | 1 | 1 | 1 | 1 | |
| Product Group | 7 (Push Wire Conn.) | ||||
| Rated current, A | 24 | 24 | 24 | 24 | 24 |
| Rated impulse voltage (II / 2), kV | 4 | 4 | 4 | 4 | 4 |
| Rated voltage (II / 2), В | 400 | 400 | 400 | 400 | 400 |
| Solid conductor | 1 … 2.5 mm² / 14 … 12 AWG | 1 … 2.5 mm² / 14 … 12 AWG | 1 … 2.5 mm² / 14 … 12 AWG | 1 … 2.5 mm² / 14 … 12 AWG | 0.5 … 2.5 mm² / 20 … 16 AWG |
| Solid conductor (2) | 0.5 … 2.5 mm² / 20 … 16 AWG | 0.5 … 2.5 mm² / 20 … 16 AWG | 0.5 … 2.5 mm² / 20 … 16 AWG | 0.5 … 2.5 mm² / 20 … 16 AWG | |
| Strip length | 9 … 11 mm / 0.35 … 0.43 Inch | 9 … 11 mm / 0.35 … 0.43 Inch | 9 … 11 mm / 0.35 … 0.43 Inch | 9 … 11 mm / 0.35 … 0.43 Inch | 9 … 11 mm / 0.35 … 0.43 Inch |
| Total number of connection points | 2 | 2 | 3 | 3 | 2 |
| Total number of potentials | 1 | 1 | 1 | 1 | 1 |
| Type of wiring | Side-entry wiring | Side-entry wiring | Side-entry wiring | Side-entry wiring | Side-entry wiring |
| Вес, г | 2.128 | 2.34 | 2.066 | 2.74 | 5 |
| Ширина | 8 mm / 0.315 inch | 8 mm / 0.315 inch | 9.5 mm / 0.374 inch | 9.5 mm / 0.374 inch | 8 mm / 0.315 inch |
Модельный ряд
Классификация производителя
- Wire/Splicing Connectors
