Параметры

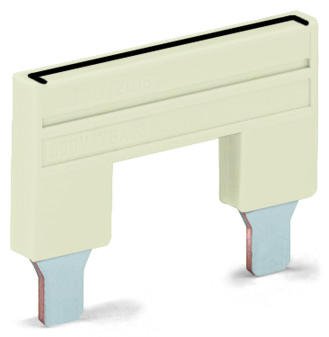

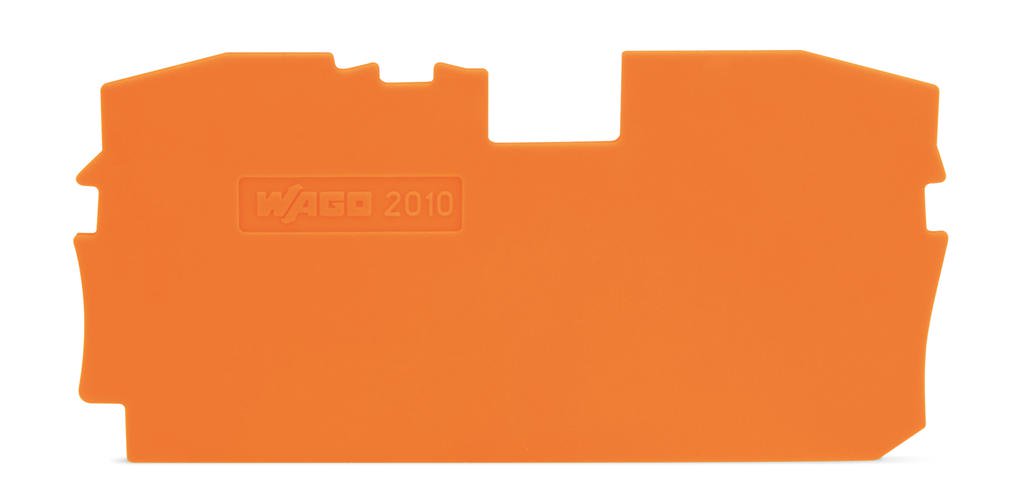

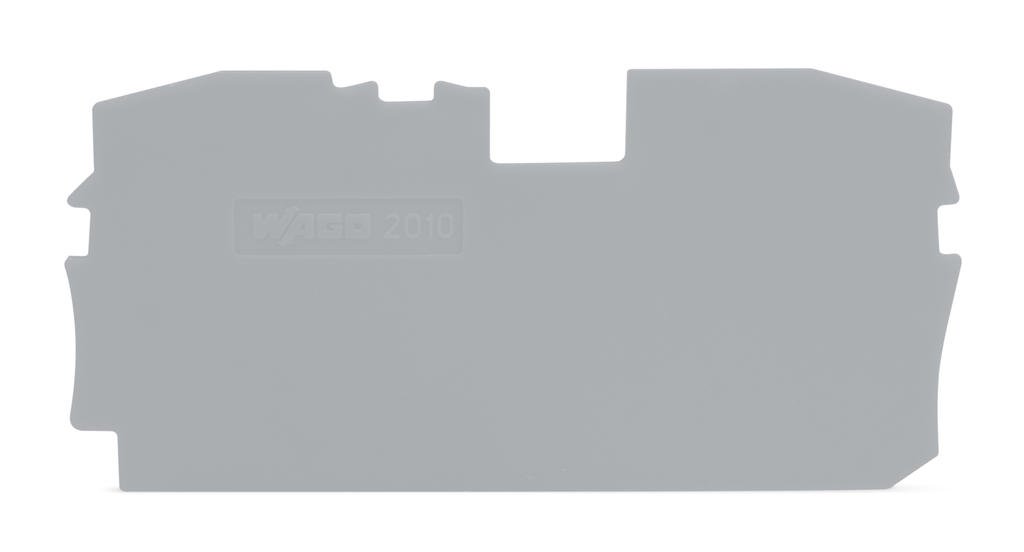

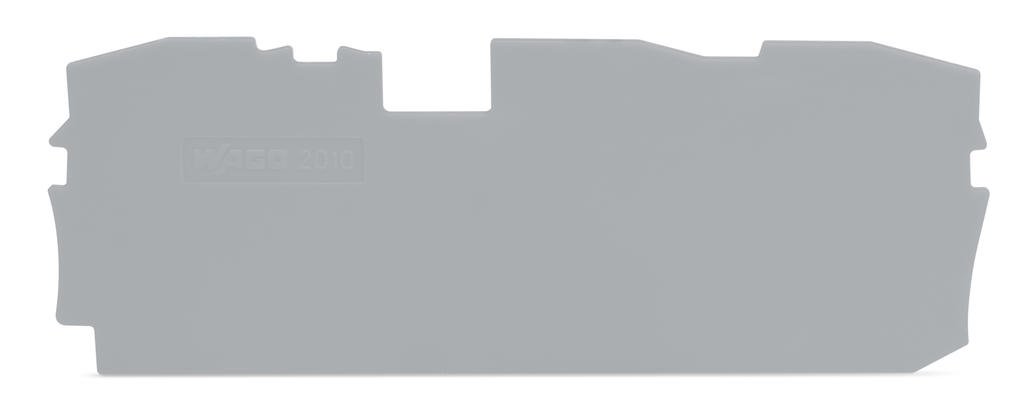

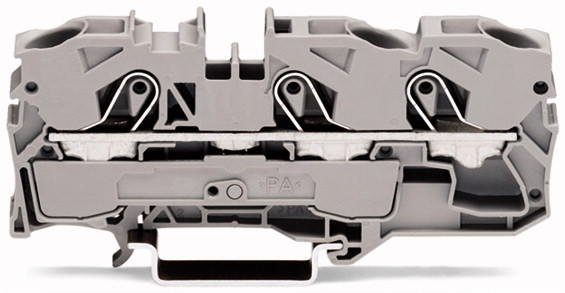

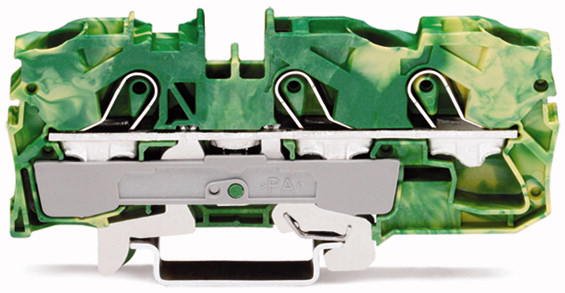

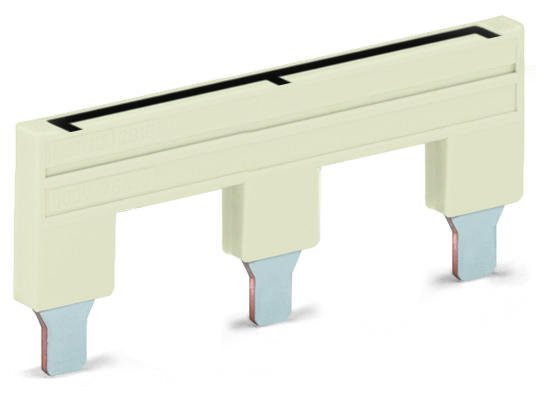

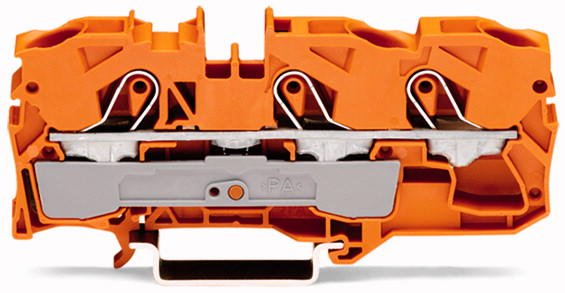

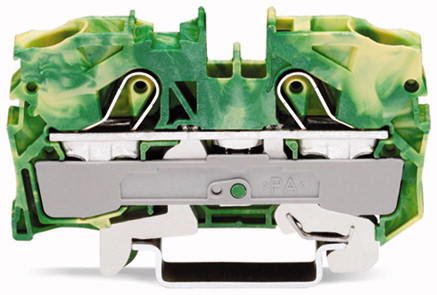

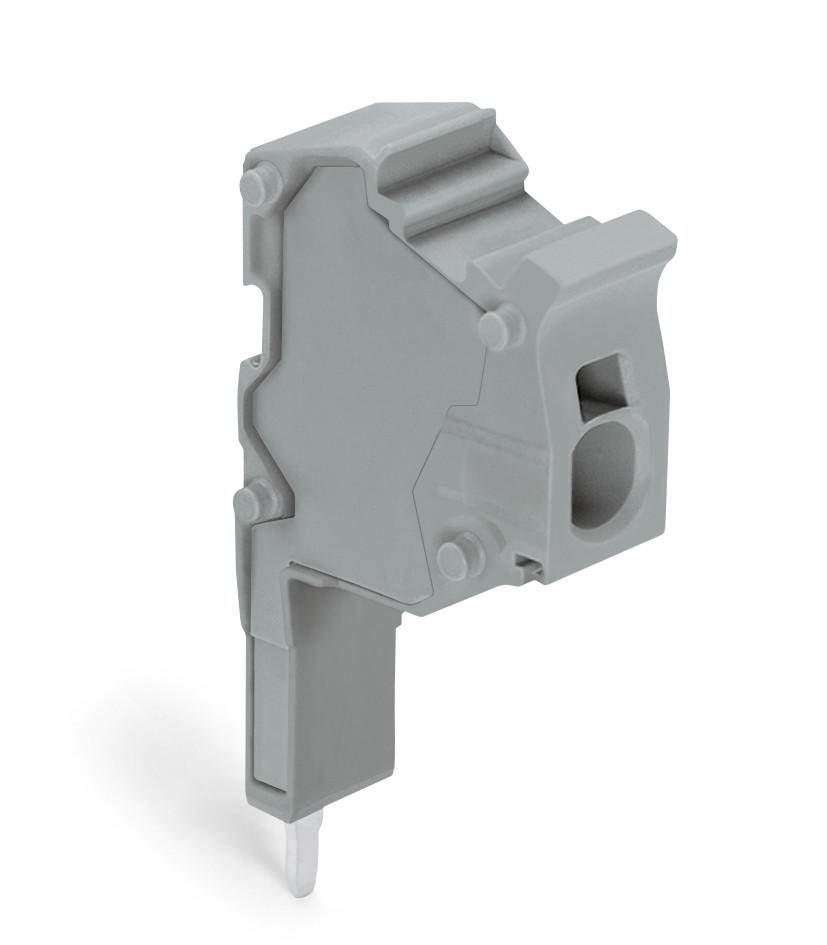

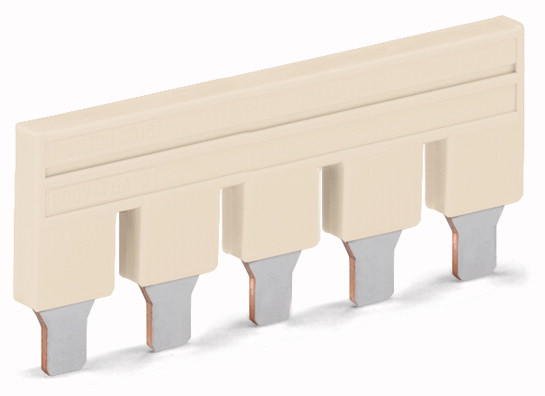

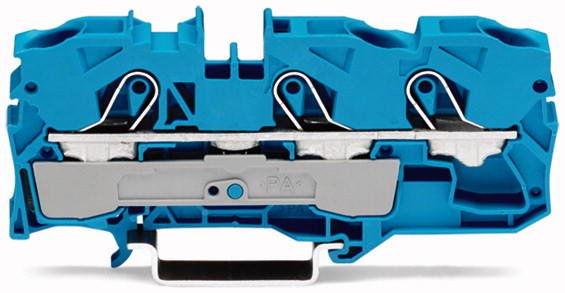

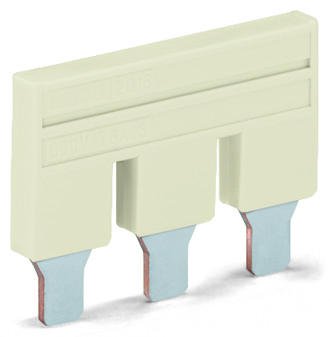

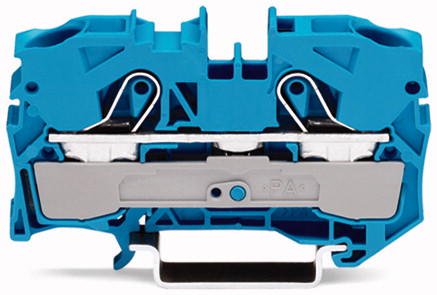

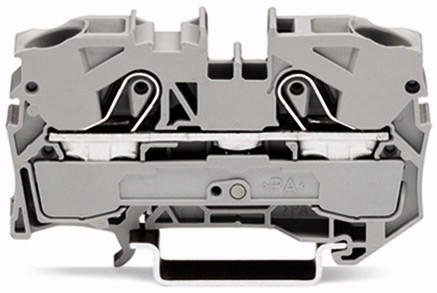

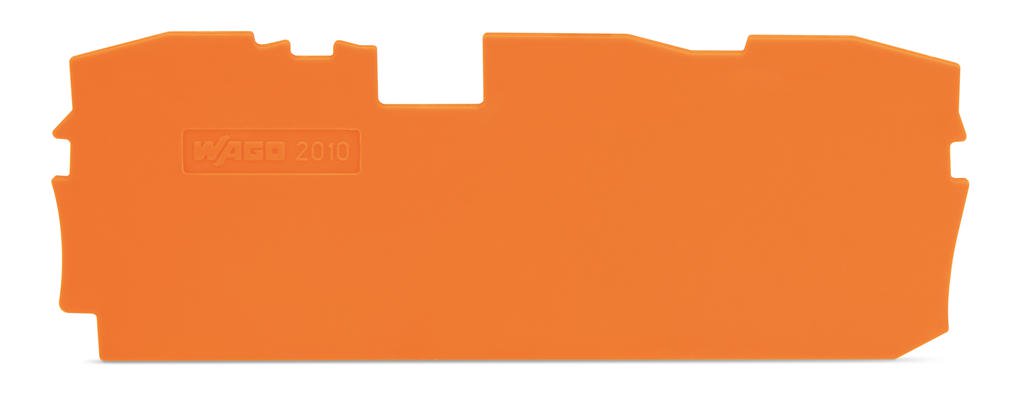

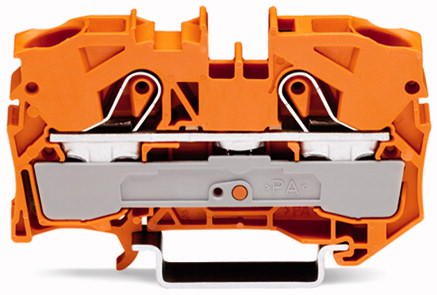

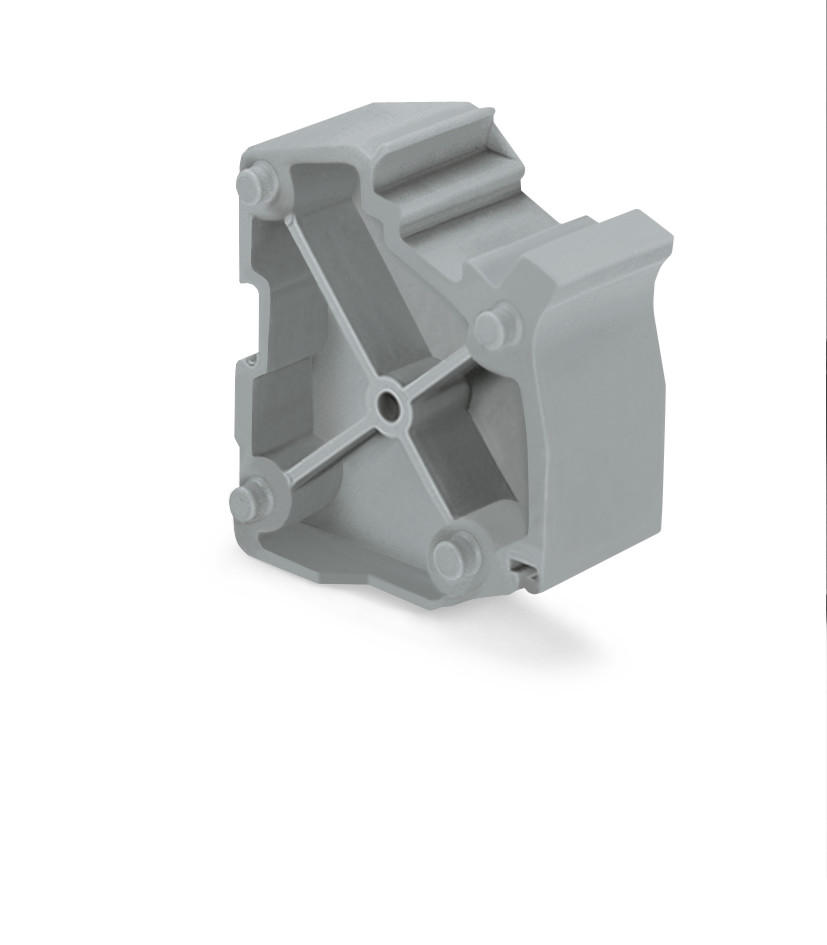

Parameters / Models	2010-100	2010-115	2010-1201	2010-1202	2010-1204	2010-1205	2010-1206	2010-1207	2010-1208	2010-1209	2010-1291	2010-1292	2010-1301	2010-1302	2010-1303	2010-1304	2010-1305	2010-1306	2010-1307	2010-1309	2010-1391	2010-1392	2010-402	2010-403	2010-404	2010-405	2010-405/011-000	2010-433	2010-434	2010-435	2010-511	2010-549
Actuation type, Operating tool			Open Tool Slot	Open Tool Slot	Open Tool Slot	Open Tool Slot	Push-in	Open Tool Slot	Open Tool Slot	Push-in			Open Tool Slot	Open Tool Slot	Open Tool Slot	Open Tool Slot	Push-in	Push-in	Open Tool Slot	Push-in
Цвет	yellow	yellow	gray	orange	blue	black	yellow	green-yellow	white	light gray	gray	orange	gray	orange	red	blue	black	yellow	green-yellow	light gray	gray	orange	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	gray	gray
Connectable conductor materials			Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper			Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper
Connection technology			Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®			Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®											Push-in CAGE CLAMP®
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	CN	CN	DE	DE	DE	DE	DE	DE	DE	DE	CN	CN	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина			67.8 mm / 2.669 inch	67.8 mm / 2.669 inch	67.8 mm / 2.669 inch	67.8 mm / 2.669 inch	67.8 mm / 2.669 inch	67.8 mm / 2.669 inch	67.8 mm / 2.669 inch	67.8 mm / 2.669 inch	67.2 mm / 2.646 inch	67.2 mm / 2.646 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	88.6 mm / 3.488 inch	88.6 mm / 3.488 inch	4.1 mm / 0.161 inch	4.1 mm / 0.161 inch	4.1 mm / 0.161 inch	4.1 mm / 0.161 inch	4.1 mm / 0.161 inch	4.1 mm / 0.161 inch	4.1 mm / 0.161 inch	4.1 mm / 0.161 inch
Design			horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal			horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor			0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG			0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG											0.5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor with ferrule, push-in termination, from			4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG			4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG	4 mm² / 14 AWG											4 mm² / 18 AWG
Fire load, MJ	0.005	0.022	0.289	0.273	0.279	0.255		0.267	0.246		0.071	0.071	0.381	0.378	0.392	0.382			0.35		0.095	0.095	0.016	0.024	0.033	0.041	0.042	0.023	0.029	0.035	0.084	0.069
GTIN	4045454338404	4044918498203	4017332076005	4017332076111	4017332076166	4050821809227	4055143645911	4017332076180	4050821189138	4055143645898	4044918144148	4044918271745	4017332011341	4017332076197	4050821514763	4017332076234	4055143645881	4055143645386	4017332076340	4055143645393	4044918271752	4044918271769	4044918558174	4044918558792	4055143701976	4055143701990	4055143702515	4044918592161	4044918578691	4044918592178	4050821263722	4050821263753
Height											33.5 mm / 1.319 inch	33.5 mm / 1.319 inch									33.5 mm / 1.319 inch	33.5 mm / 1.319 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch
Height from upper-edge of DIN-35 rail			36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch			36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch
Insulating material			Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)			Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)											Polyamide 66 (PA 66)
Marking level			Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking			Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking											Center/side marking	Center/side marking
Nominal cross section			10 mm²	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²			10 mm²	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²											4 mm²
Number of Poles																															1
Number of levels			1	1	1	1	1	1	1	1			1	1	1	1	1	1	1	1
Packaging type						BOX																			bag	bag	bag
Product Group	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)		22 (TOPJOB S)	22 (TOPJOB S)		22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)			22 (TOPJOB S)		22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)		22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)	22 (TOPJOB S)
Rated current, A																															32
Rated current (Ex e II), A			51	51	51	51	51			51			50	50	50	50	50	50		50			50	50	50	50		50	50	50
Rated current CSA (Use Group B), A									65
Rated current CSA (Use Group C), A									65
Rated impulse voltage (III / 3), kV																											8				6
Rated voltage (III / 3), В																											800				500
Rated voltage CSA (Use Group B), В									600
Rated voltage CSA (Use Group C), В									600
Rated voltage EN (Ex e II), В			550	550	550	550	550			550			550	550	550	550	550	550		550
Solid conductor			0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG			0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG											0.5 … 6 mm² / 20 … 10 AWG
Solid conductor, push-in termination			4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG			4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG	4 … 16 mm² / 14 … 6 AWG											4 … 6 mm² / 14 … 10 AWG
Strip length			17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch			17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch											11 … 13 mm / 0.43 … 0.51 Inch
Total number of connection points			2	2	2	2	2	2	2	2			3	3	3	3	3	3	3	3											1
Total number of potentials			1	1	1	1	1	1	1	1			1	1	1	1	1	1	1	1											1
Type of mounting			DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail			DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring			Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring			Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring											Side-entry wiring
Вес, г	0.18	0.7	17.112	17.246	17.336	16.056	18.227	30.1	28.449	18.227	2.36	2.36	24.7	23.314	23.774	23.734	23.455	23.455	35.634	23.455	3.17	3.17	3.7	5.88	7.96	9.97	8.53	4.95	6.15	7.34	4.895	2.29
Ширина			10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	1 mm / 0.039 inch	1 mm / 0.039 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	1 mm / 0.039 inch	1 mm / 0.039 inch	17.5 mm / 0.689 inch	27.5 mm / 1.083 inch	37.6 mm / 1.48 inch	47.6 mm / 1.874 inch	47.6 mm / 1.874 inch	27.5 mm / 1.083 inch	37.6 mm / 1.48 inch	47.6 mm / 1.874 inch	10 mm / 0.394 inch	10 mm / 0.394 inch
