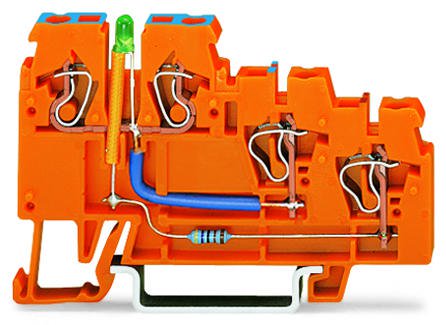

Datasheet Wago 270 — Даташит

Производитель	Wago
Серия	270

Цены

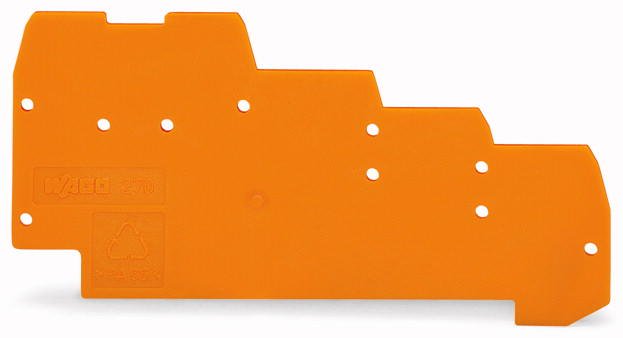

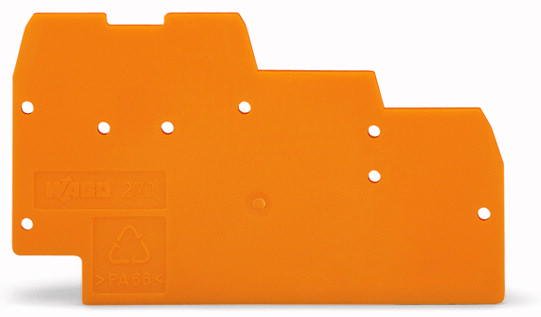

Купить 270-319 на РадиоЛоцман.Цены — от 194 до 483 ₽ 8 предложений от 5 поставщиков END AND INTERMEDIATE PLATE; 1 MM
Элитан Россия	270-319 Wago	483 ₽	Купить
Augswan Весь мир	270-319 Wago	по запросу	Купить
Maybo Весь мир	1138-27-03-19	по запросу	Купить
ТаймЧипс Россия	1110-27-0319	по запросу	Купить

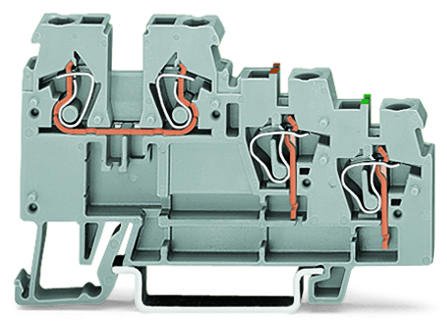

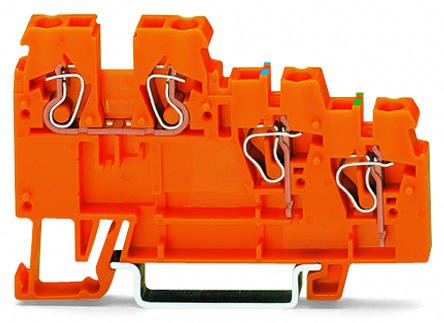

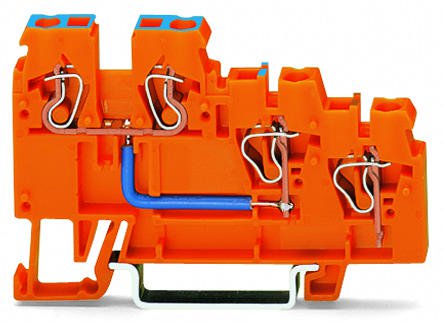

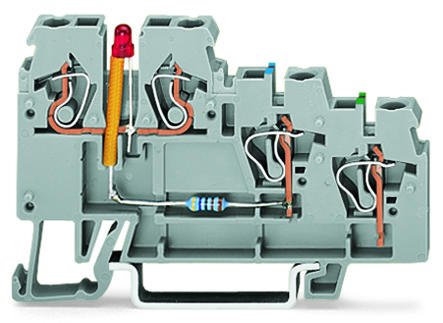

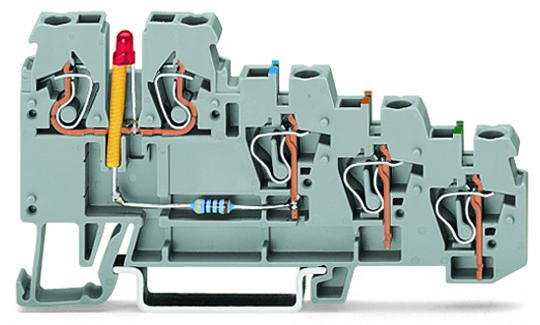

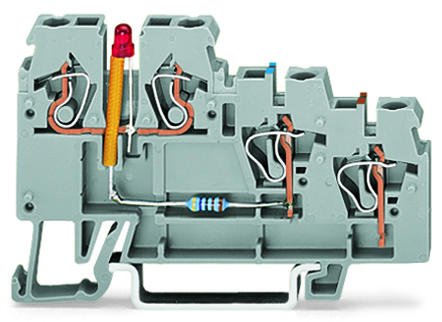

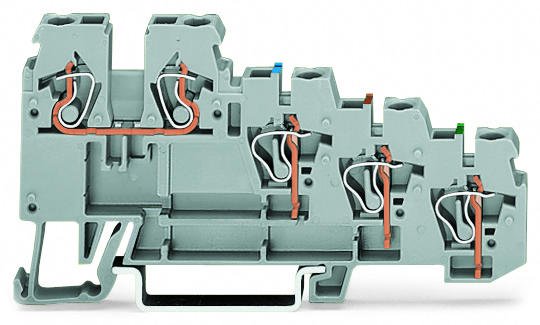

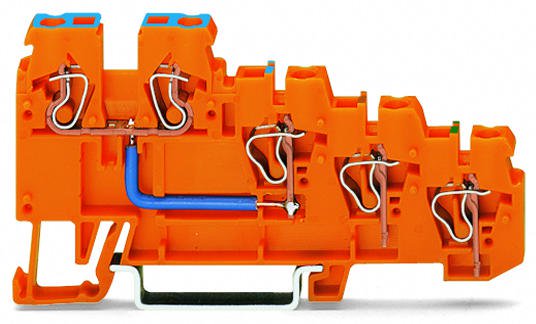

Параметры

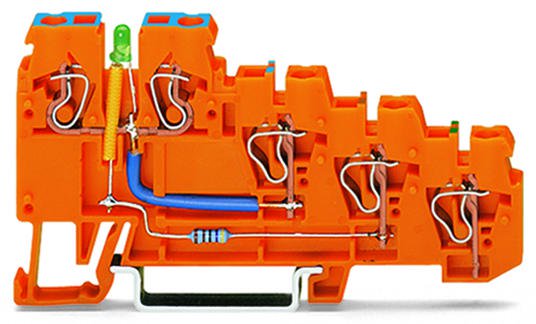

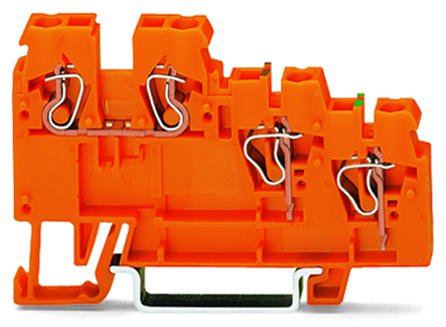

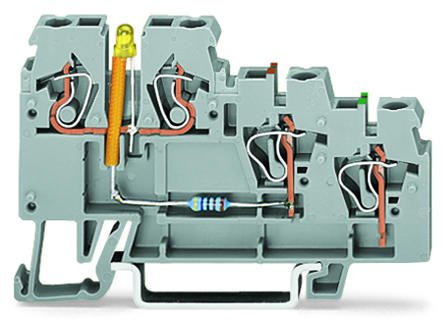

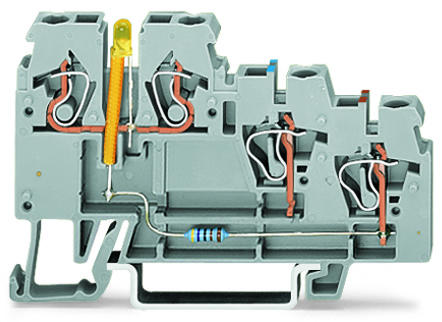

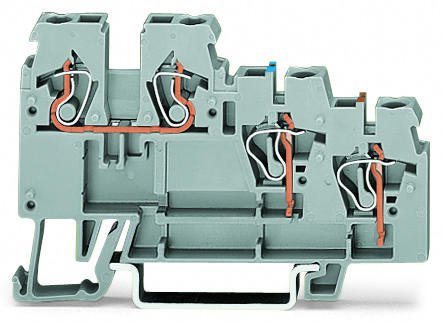

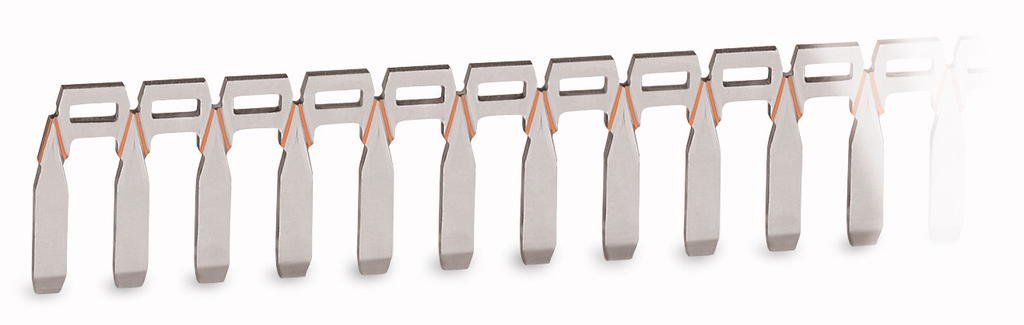

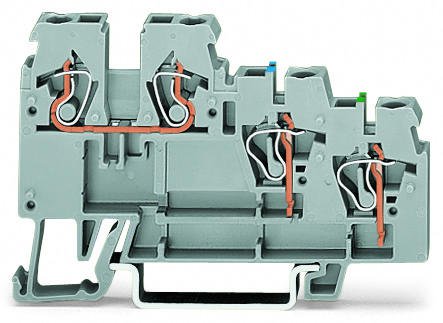

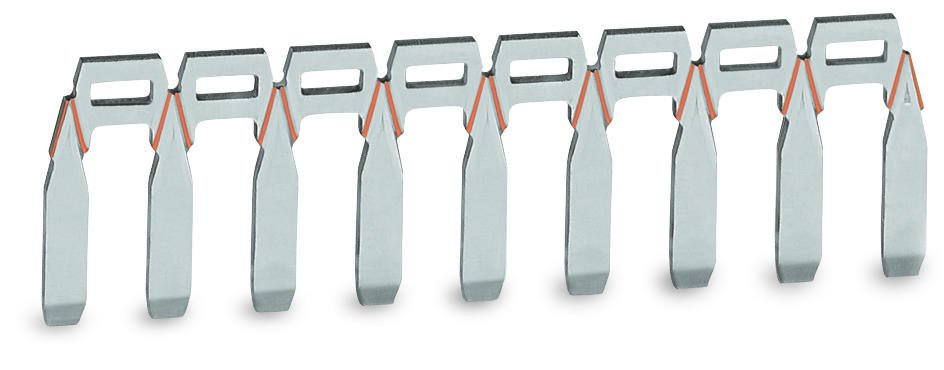

Parameters / Models	270-319	270-320	270-321	270-322	270-409	270-417	270-480	270-560	270-560/281-434	270-560/281-507	270-564	270-564/281-483	270-570	270-570/281-434	270-570/281-507	270-572	270-572/281-434	270-574	270-574/281-483	270-577	270-585	270-585/281-507	270-586
Actuation type								Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Цвет	gray	gray	orange	orange	silver-colored	silver-colored	silver-colored	gray	gray	gray	orange	orange	gray	gray	gray	gray	gray	orange	orange	orange	gray	gray	orange
Connectable conductor materials								Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper
Connection technology								CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®
Country of origin	DE	DE	DE	DE	DE	DE	DE	CN	CN	CN	CN	CN	CN	CN	DE	CN	CN	CN	CN	CN	CN	CN	CN
Габариты: глубина	68 mm / 2.677 inch	83 mm / 3.268 inch	68 mm / 2.677 inch	83 mm / 3.268 inch	2.5 mm / 0.098 inch	2.5 mm / 0.098 inch		68 mm / 2.677 inch	68 mm / 2.677 inch	68 mm / 2.677 inch	68 mm / 2.677 inch	68 mm / 2.677 inch	83 mm / 3.268 inch	83 mm / 3.268 inch	83 mm / 3.268 inch	68 mm / 2.677 inch	68 mm / 2.677 inch	83 mm / 3.268 inch	83 mm / 3.268 inch	68 mm / 2.677 inch	68 mm / 2.677 inch	68 mm / 2.677 inch	68 mm / 2.677 inch
Design								horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor								0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG
Fire load, MJ	0.072	0.085	0.071	0.114				0.172	0.178	0.179	1.372	1.376	0.201	0.207	0.211	0.172	0.178	1.401	1.405	0.172	0.172	0.179	0.172
GTIN	4017332696999	4017332706032	4017332696982	4017332706049	4045454223908	4045454223953	4045454224042	4050821035251	4050821286493	4045454193751	4045454193768	4045454365646	4050821035305	4050821283263	4045454193782	4050821035268	4050821286592	4045454193829	4045454365653	4050821035275	4050821035282	4045454193836	4050821035299
Height	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch
Height from upper-edge of DIN-35 rail								39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch	39 mm / 1.535 inch
Legend (ratings)								(III / 3) ≙ Overvoltage category III / Pollution degree 3			(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3			(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level								Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking	Side marking
Nominal voltage, В									24	24		24		24	24		24		24			24
Number of levels								3	3	3	3	3	4	4	4	3	3	4	4	3	3	3	3
Product Group	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)				1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)
Rated current, A					18	18	18	18			18		18			18		18		18	18		18
Rated impulse voltage (III / 3), kV								4			4		4			4		4		4	4		4
Rated voltage (III / 3), В								250			250		250			250		250		250	250		250
Solid conductor								0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG
Strip length								6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch
Total number of connection points								4	4	4	4	4	5	5	5	4	4	5	5	4	4	4	4
Total number of potentials								3	3	3	2	3	4	4	4	3	3	3	4	3	3	3	3
Type of mounting								DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring								Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Voltage type (1)									DC	DC		DC		DC	DC		DC		DC			DC
Вес, г	2.4	2.835	2.4	2.835	1.6	3	13.94	8.817	10.065	9.16	9.29	9.68	10.484	10	12.064	8.817	10.027	11.03	11.51	8.276	8.817	9.11	8.7
Ширина	1 mm / 0.039 inch	1 mm / 0.039 inch	1 mm / 0.039 inch	1 mm / 0.039 inch	44 mm / 1.732 inch	84 mm / 3.307 inch		5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch

Модельный ряд

Классификация производителя

• Rail / Chassis Terminal blocks
