Datasheet Wago 811 — Даташит

Производитель	Wago
Серия	811

Цены

Купить 811-310 на РадиоЛоцман.Цены — от 366 до 96 080 ₽ 31 предложений от 16 поставщиков Обжимные инструменты CRIMPER INSERT
AllElco Electronics Весь мир	811-310 Wago	от 962 ₽	Купить
Компонентс Ру Россия	811-310 Wago	от 2 486 ₽	Купить
T-electron Россия и страны СНГ	811310	96 080 ₽	Купить
ТаймЧипс Россия	81-1310-01-303	по запросу	Купить

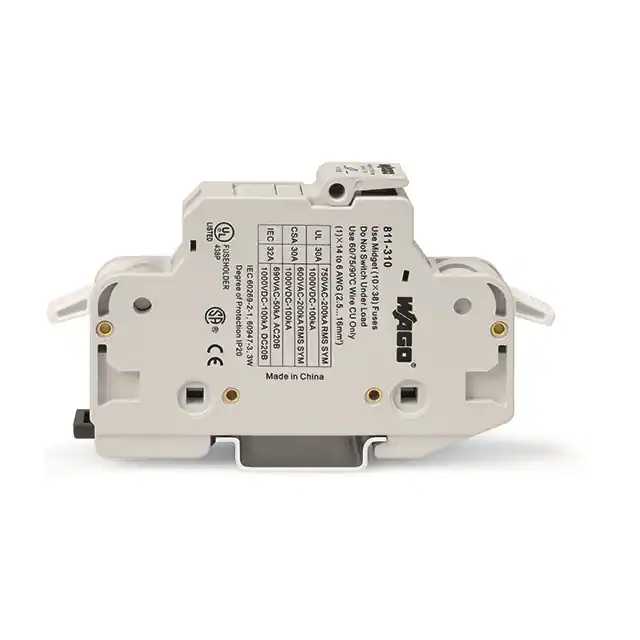

Параметры

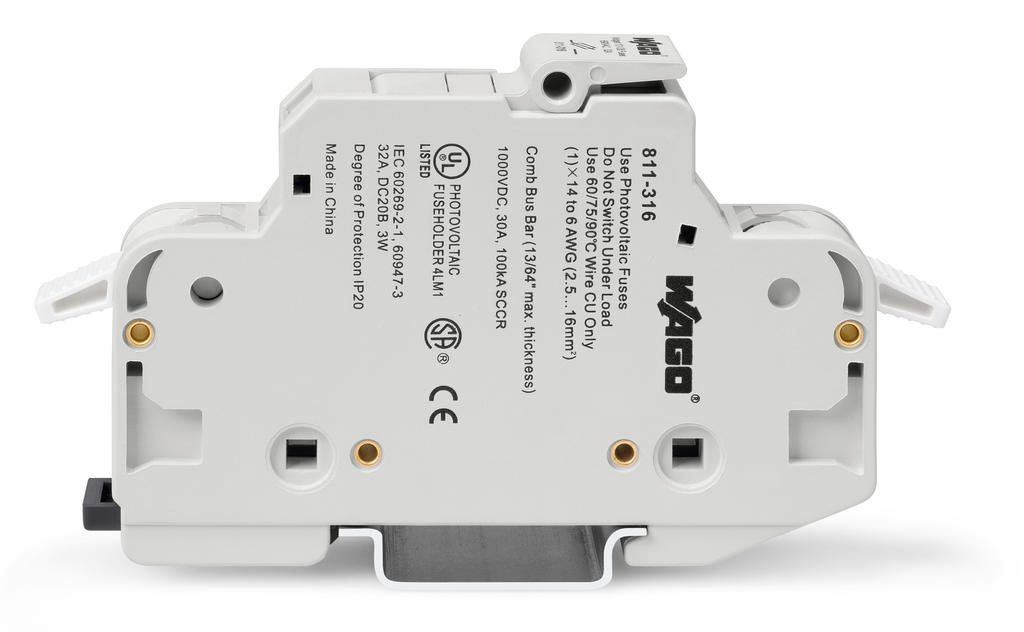

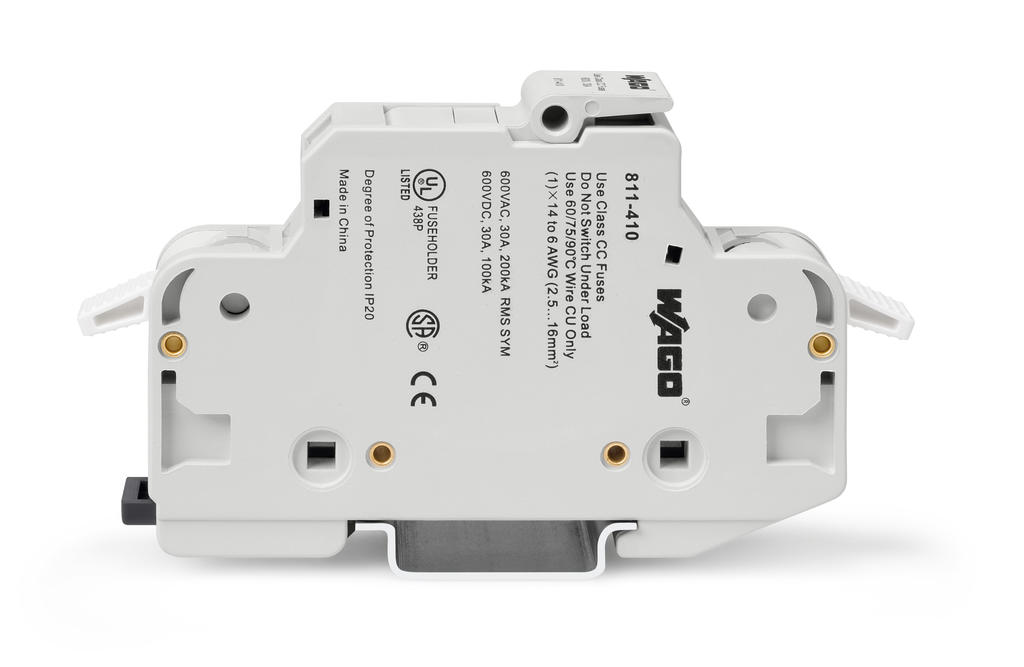

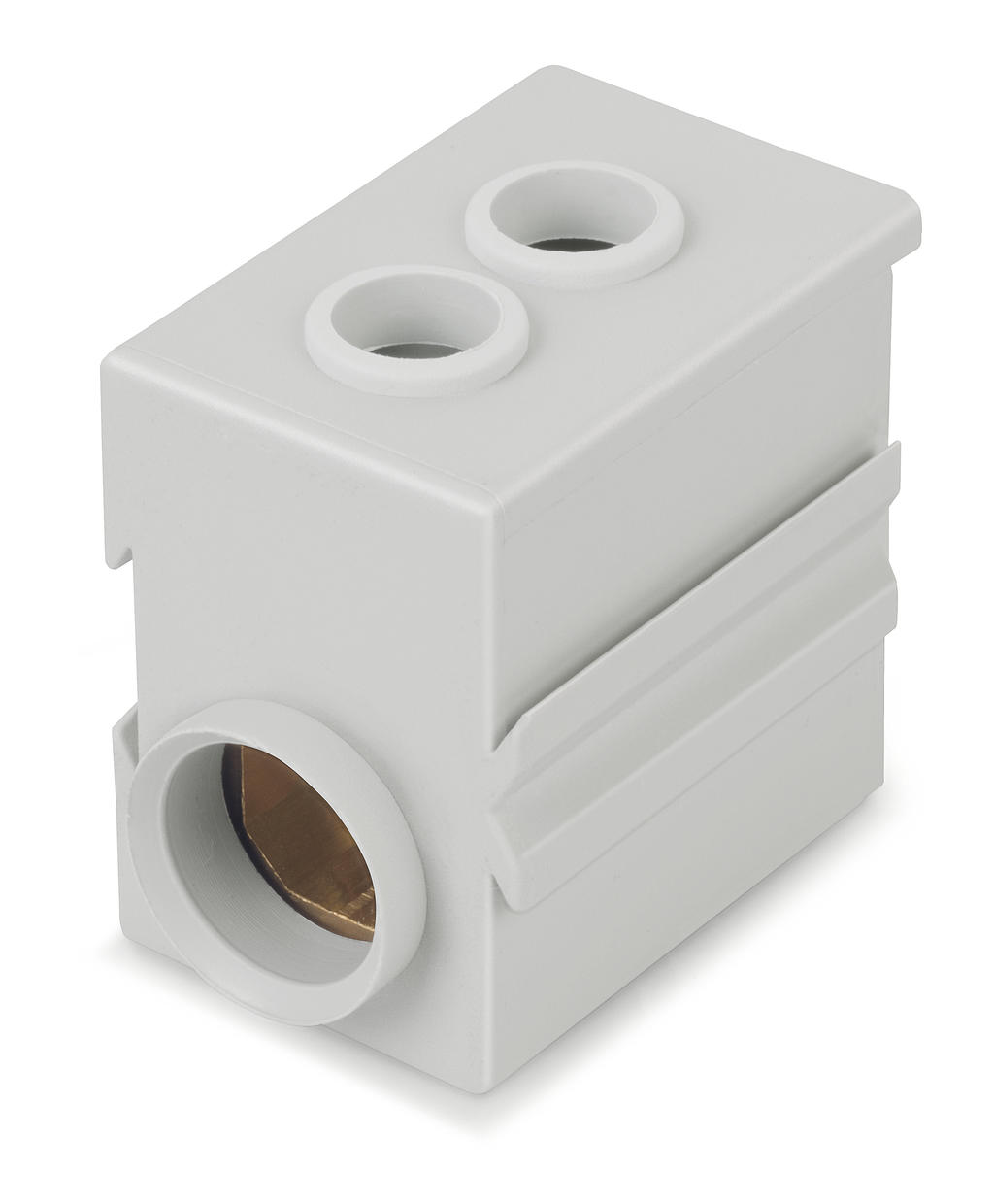

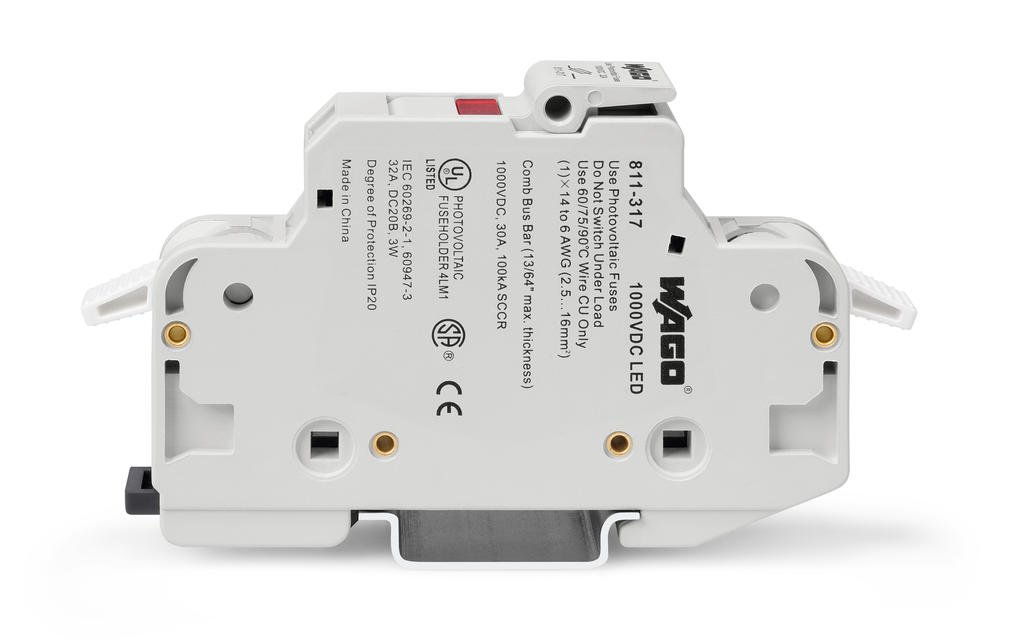

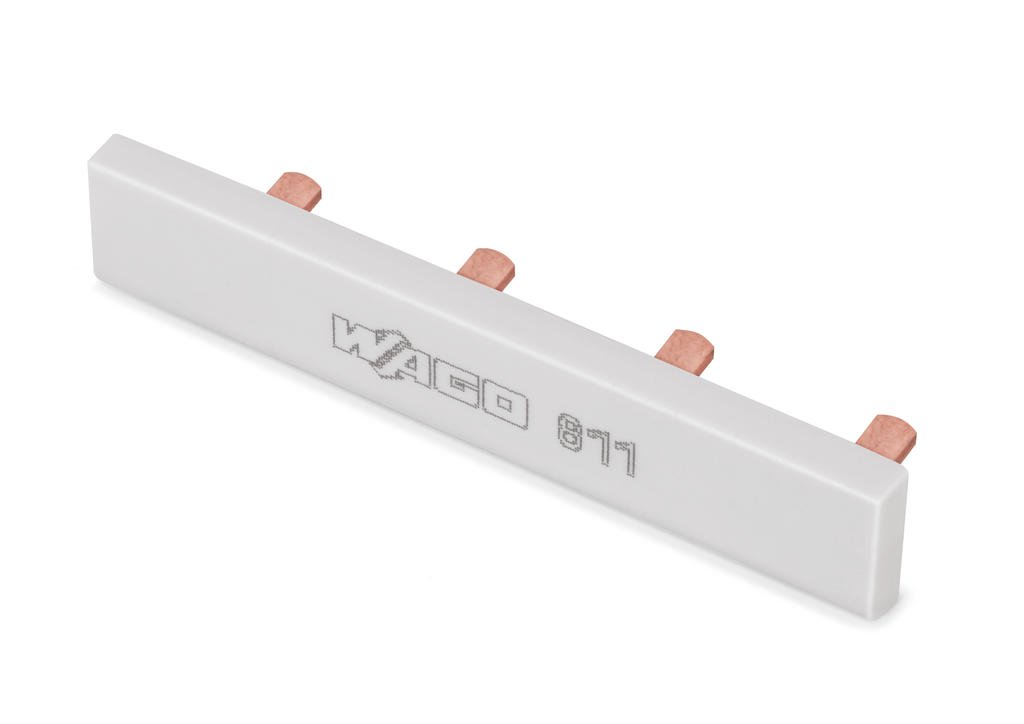

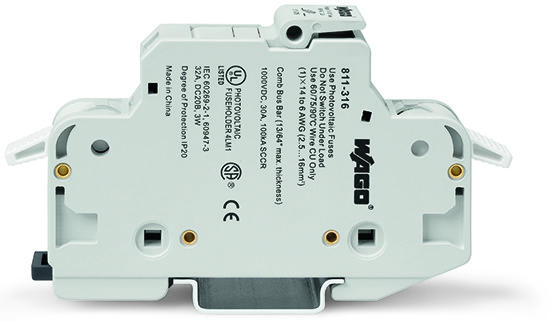

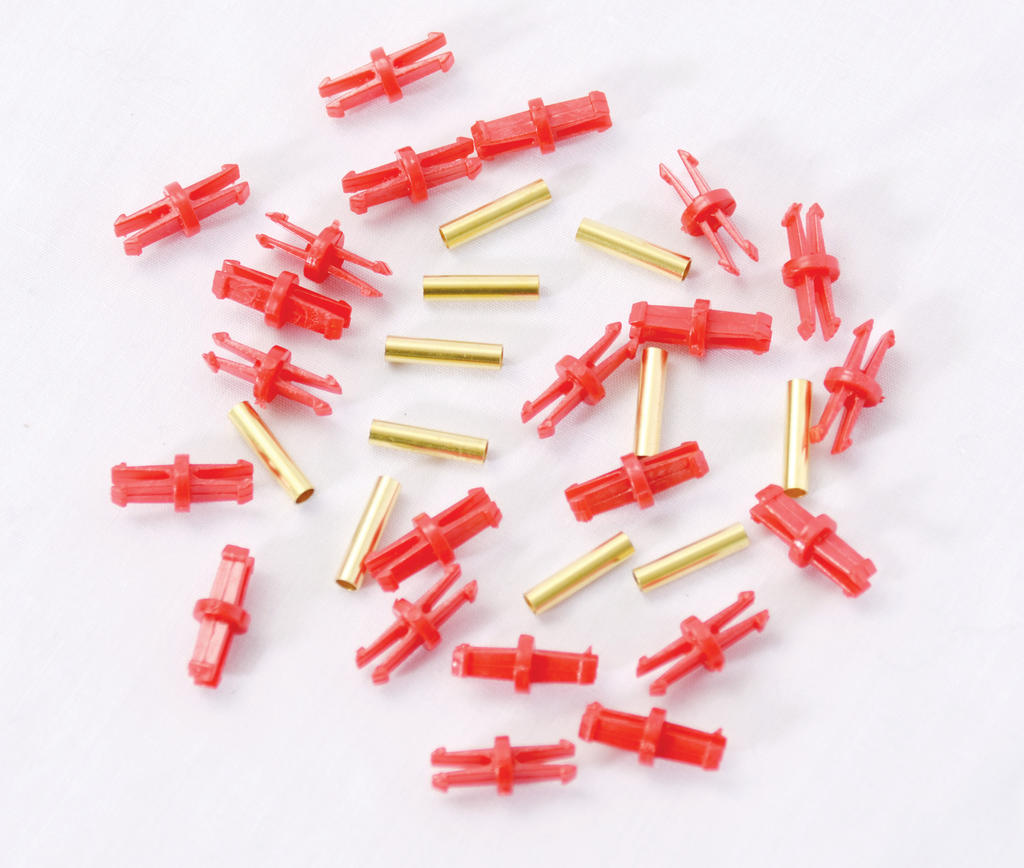

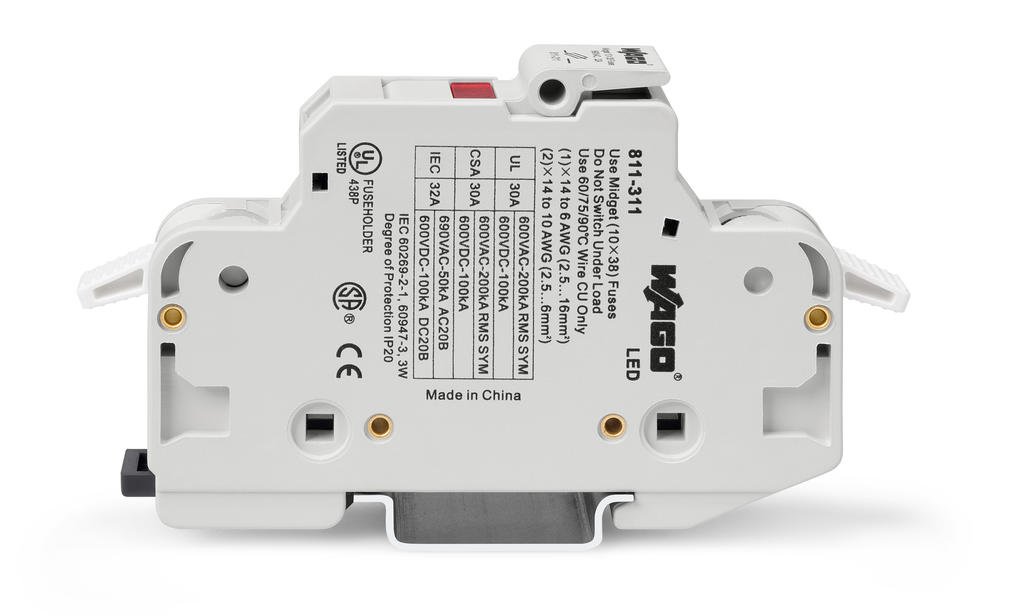

Parameters / Models	811-310	811-311	811-314	811-316	811-317	811-320	811-321	811-330	811-331	811-410	811-411	811-414	811-420	811-421	811-430	811-431	811-471	811-472	811-473	811-474	811-475	811-476	811-477	811-478	811-479	811-480	811-481	811-482	811-612
Actuation type	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Цвет	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray	light gray
Connectable conductor materials	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper
Connection technology	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®
Country of origin				CN				CN								CN	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	CN
Габариты: глубина	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch	105 mm / 4.134 inch
Design	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG
GTIN	4050821498889	4050821508090	4050821508137	4050821849001	4050821499251	4050821508076	4050821508106	4050821877660	4050821508113	4050821508151	4050821508205	4050821508304	4050821508175	4050821508281	4050821508182	4050821508298	4050821838654	4050821838548	4050821838555	4050821838562	4050821838579	4050821838586	4050821838593	4050821838609	4050821838616	4050821838623	4050821838630	4050821838647	4050821856528
Height from upper-edge of DIN-35 rail	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch	55 mm / 2.165 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)										(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Number of Poles	1	1	1	1	1	2	2	3	3	1	1	1	2	2	3	3
Number of levels	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Packaging type								BOX
Product Group	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)					1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)	1 (Rail Mounted Terminal Blocks)													1 (Rail Mounted Terminal Blocks)
Rated current, A										32	32	32	32	32	32	32		63	63	63	63	63	63	63	63	63	63	63
Rated voltage (III / 3), В																		1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Solid conductor	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	2.5 … 16 mm² / 16 … 6 AWG	35 mm² / 2 AWG
Strip length	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch
Total number of connection points	2	2	2	2	2	4	4	6	6	2	2	2	4	4	6	6
Total number of potentials	1	1	1	1	1	2	2	3	3	1	1	1	2	2	3	3
Type of mounting	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Voltage type (1)	AC	AC	AC	DC	DC	AC	AC	AC	AC								AC
Вес, г	1.111	1.111	1.111	63.11	200	1.111	1.111	200	1.111	1.111	1.111	1.111	1.111	1.111	1.111	1.111	20	10	10	20	20	30	30	40	40	50	50	50	9.333
Ширина	17.5 mm / 0.689 inch	17.5 mm / 0.689 inch	17.5 mm / 0.689 inch	17 mm / 0.669 inch	17 mm / 0.669 inch	35 mm / 1.378 inch	35 mm / 1.378 inch	52.5 mm / 2.067 inch	52.5 mm / 2.067 inch	17.5 mm / 0.689 inch	17.5 mm / 0.689 inch	17.5 mm / 0.689 inch	35 mm / 1.378 inch	35 mm / 1.378 inch	52.5 mm / 2.067 inch	52.5 mm / 2.067 inch

Модельный ряд

Классификация производителя

• Rail / Chassis Terminal blocks | Pluggable Connection Systems
