Datasheet Wago 782 — Даташит

Производитель	Wago
Серия	782

Цены

Параметры

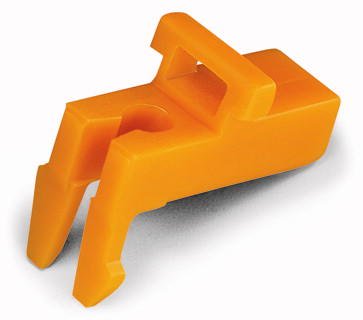

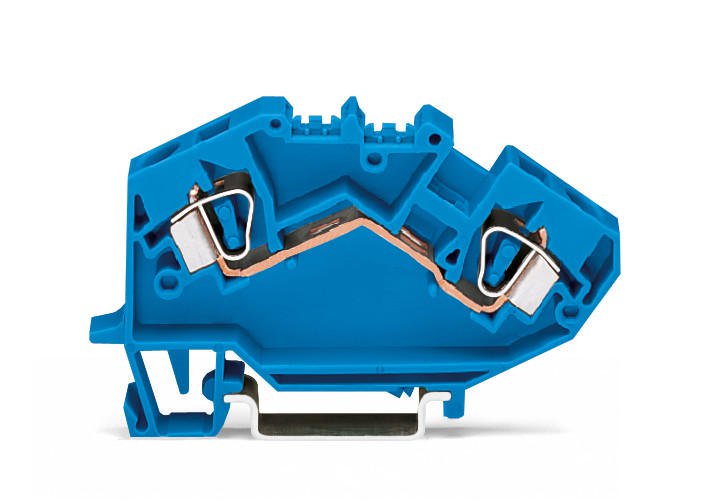

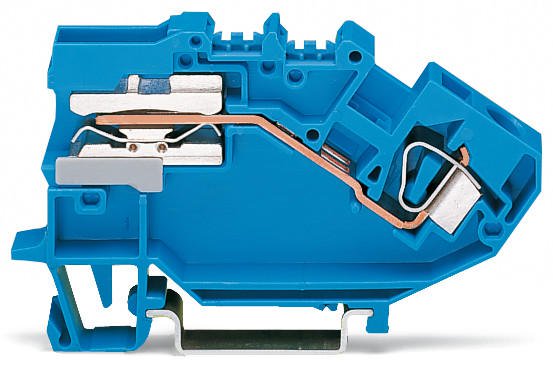

Parameters / Models	782-300	782-317	782-321	782-601	782-604	782-607	782-607/999-950	782-623	782-992
Abmessungen B x H x T (inch), дюйм			(0.059 x 1.713 x 3.236)
Abmessungen B x H x T (mm), мм			(1.5 x 43.5 x 82.2)
Actuation type				Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Цвет	orange	orange	blue	gray	blue	green-yellow	green-yellow	gray	light gray
Connectable conductor materials				Copper	Copper	Copper	Copper	Copper	Copper
Connection technology				CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®
Country of origin	DE	CN	DE	DE	DE	DE	DE	PL	DE
Габариты: глубина		82.2 mm / 3.236 inch	82.2 mm / 3.236 inch	82.5 mm / 3.248 inch	82.5 mm / 3.248 inch	82.5 mm / 3.248 inch	82.5 mm / 3.248 inch	82.5 mm / 3.248 inch	82.5 mm / 3.248 inch
Design				angled	angled	angled	angled	angled	angled
Fine-stranded conductor				0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG
Fire load, MJ	0.013	0.124	0.163	0.306	0.306				0.303
GTIN	4017332287548	4017332287555	4017332287562	4044918583305	4044918583343	4045454084721	4045454092702	4045454186913	4044918583404
Height		43.5 mm / 1.713 inch	43.5 mm / 1.713 inch
Height from upper-edge of DIN-35 rail				43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch
Insulating material				Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)		Polyamide 66 (PA 66)
Legend (ratings)				(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3			(III / 3) ≙ Overvoltage category III / Pollution degree 3
Main product function			Mounting Accessories
Marking level				Center marking	Center marking	Center marking	Center marking	Center marking	Center marking
Number of levels				1	1	1	1	1	1
Product Group	17 (TOP JOB installation terminal blocks)	17 (TOP JOB installation terminal blocks)	17 (TOP JOB installation terminal blocks)					17 (TOP JOB installation terminal blocks)
Rated current, A				41	41			41
Rated impulse voltage (III / 3), kV				8	8			6
Rated voltage (III / 3), В				1000	1000			400
Rated voltage EN (Ex e II), В									750
Solid conductor				0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG	0.2 … 6 mm² / 24 … 10 AWG
Strip length				12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch	12 … 13 mm / 0.47 … 0.51 Inch
Total number of connection points				2	2	2	2	1	2
Total number of potentials				1	1	1	1	1	1
Type of mounting				DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring				Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Вес, г	0.421	4.125	5.42	17.076	16.972	25.66	26.2	25.195	16.966
Ширина		1.5 mm / 0.059 inch	1.5 mm / 0.059 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch

Модельный ряд

Классификация производителя

• Rail / Chassis Terminal blocks
