Datasheet Wago 781 — Даташит

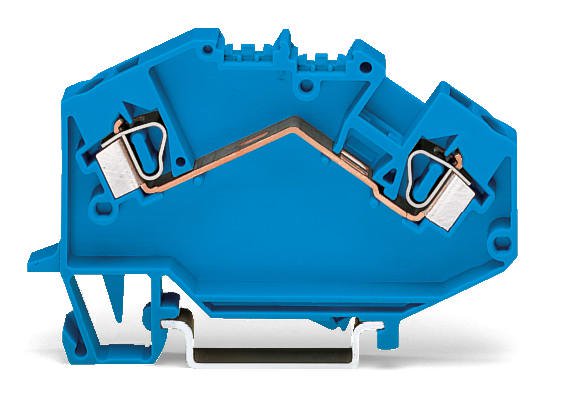

Производитель	Wago
Серия	781

Цены

Параметры

Parameters / Models	781-452	781-453	781-454	781-455	781-456	781-601	781-604	781-607	781-607/999-950	781-623	781-631	781-637	781-637/999-950	781-651	781-653	781-992	781-993
Actuation type						Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Цвет	gray	gray	gray	gray	gray	gray	blue	green-yellow	green-yellow	gray	gray	green-yellow	green-yellow	blue	gray	light gray	light gray
Connectable conductor materials						Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper
Connection technology						CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE	PL	DE	DE	DE	DE	PL	DE	DE
Габариты: глубина	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch	77 mm / 3.031 inch
Design						angled	angled	angled	angled	angled	angled	angled	angled	angled	angled	angled	angled
Fine-stranded conductor						0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG
Fire load, MJ	0.007	0.011	0.014	0.016	0.019	0.206	0.206				0.211	0.196	0.196	0.207		0.183	0.211
GTIN	4044918270854	4044918270892	4044918270946	4044918270991	4044918271042	4044918684316	4044918684347	4045454084691	4045454092580	4044918813341	4044918501231	4045454084714	4045454092672	4044918501262	4044918808101	4044918684392	4044918501309
Height from upper-edge of DIN-35 rail						43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch	43.5 mm / 1.713 inch
Insulating material						Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)		Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)		Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)						(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3			(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3			(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level						Center marking	Center marking	Center marking	Center marking	Center marking	Center marking	Center marking	Center marking	Center marking	Center marking	Center marking	Center marking
Number of levels						1	1	1	1	1	1	1	1	1	1	1	1
Product Group	17 (TOP JOB installation terminal blocks)	17 (TOP JOB installation terminal blocks)	17 (TOP JOB installation terminal blocks)	17 (TOP JOB installation terminal blocks)						17 (TOP JOB installation terminal blocks)					17 (TOP JOB installation terminal blocks)
Rated current, A	32	32	32	32	32	32	32			32	32			32	32
Rated impulse voltage (III / 3), kV	6	6	6	6	6	8	8			6	8			8	6
Rated voltage (III / 3), В	400	400	400	400	400	1000	1000			400	1000			1000	400
Rated voltage EN (Ex e II), В																750	750
Solid conductor						0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG
Strip length						9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch
Total number of connection points						2	2	2	2	1	3	3	3	3	2	2	3
Total number of potentials						1	1	1	1	1	1	1	1	1	1	1	1
Type of mounting						DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring						Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Вес, г	1.696	1.99	2.322	2.66	2.96	10.414	10.324	16.65	16.65	16.384	11.706	18.07	18.07	11.7	17.91	9.564	11.536
Ширина	5.4 mm / 0.213 inch	11.4 mm / 0.449 inch	17.4 mm / 0.685 inch	23.4 mm / 0.921 inch	29.4 mm / 1.157 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch

Модельный ряд

Классификация производителя

• Rail / Chassis Terminal blocks | Pluggable Connection Systems
