Datasheet Wago 2202 — Даташит

Производитель	Wago
Серия	2202

Купить 2202-1201 на РадиоЛоцман.Цены — от 31 до 254 ₽ 26 предложений от 9 поставщиков Клеммная колодка на DIN рейку, Through, 2 вывод(-ов), 12 AWG, 12 AWG, 2.5 мм², Зажим, 24 А
ТМ Электроникс Россия	2202-1201 Wago	от 239 ₽	Купить
Онлайн Компоненты Россия	2202-1201 Wago	от 254 ₽	Купить
Augswan Весь мир	2202-1201 Wago	по запросу	Купить
Амарид-Электро Россия	2202-1201 Wago Оф. дистрибьютор	по запросу	Купить

Параметры

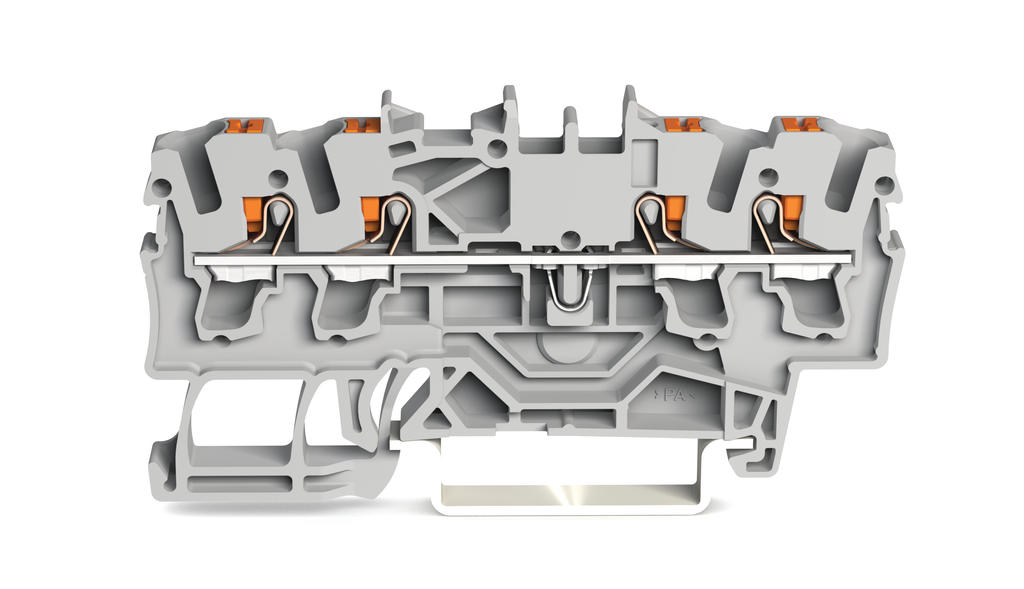

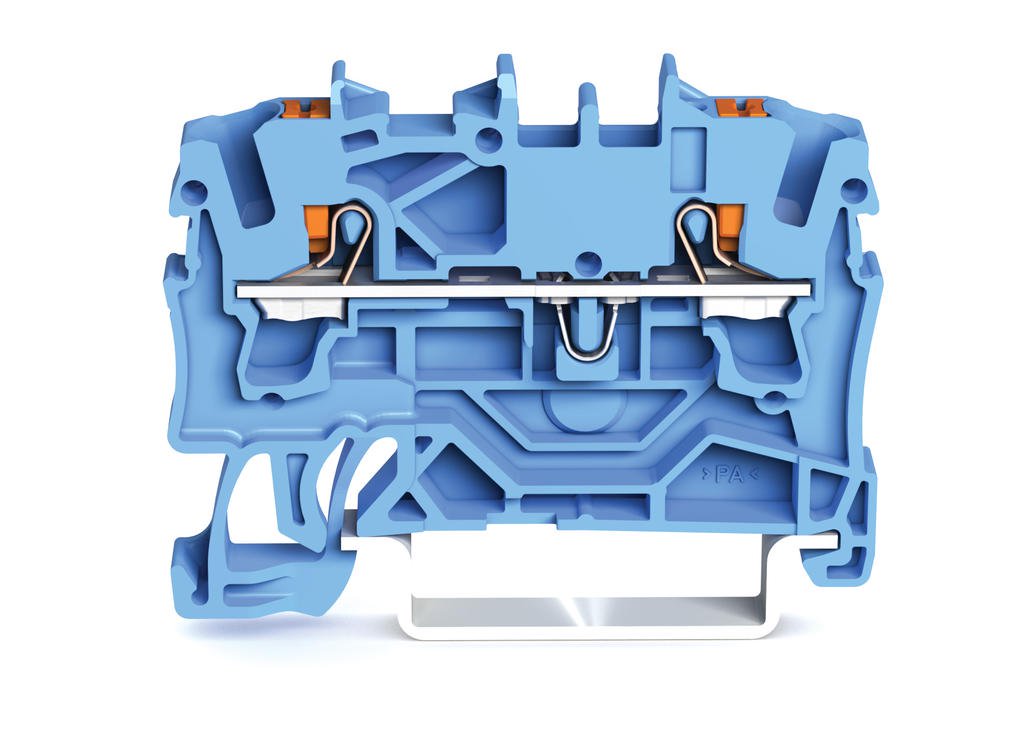

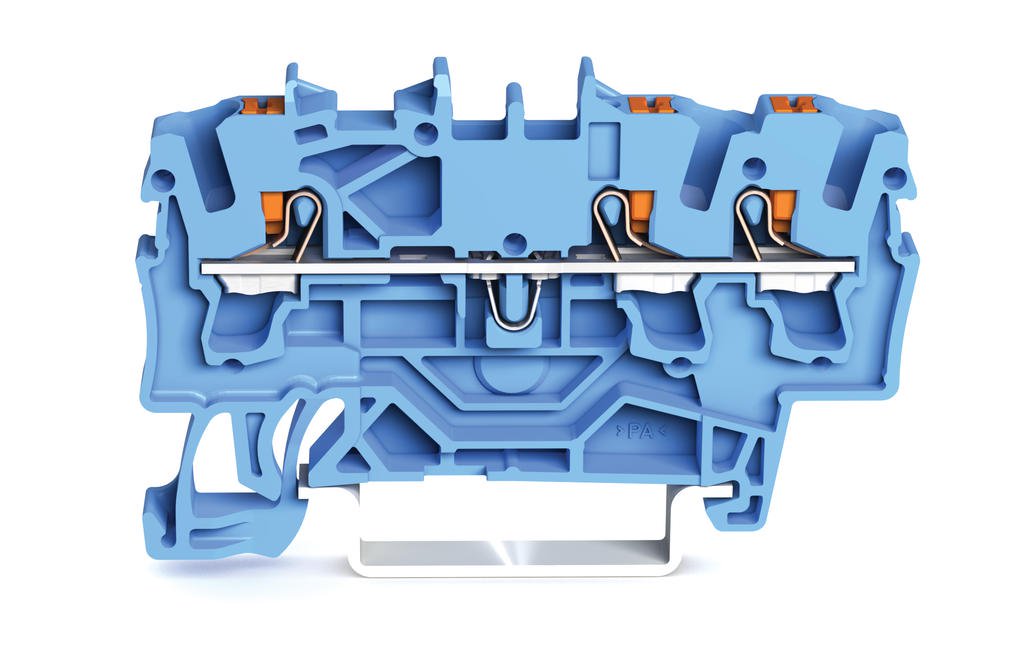

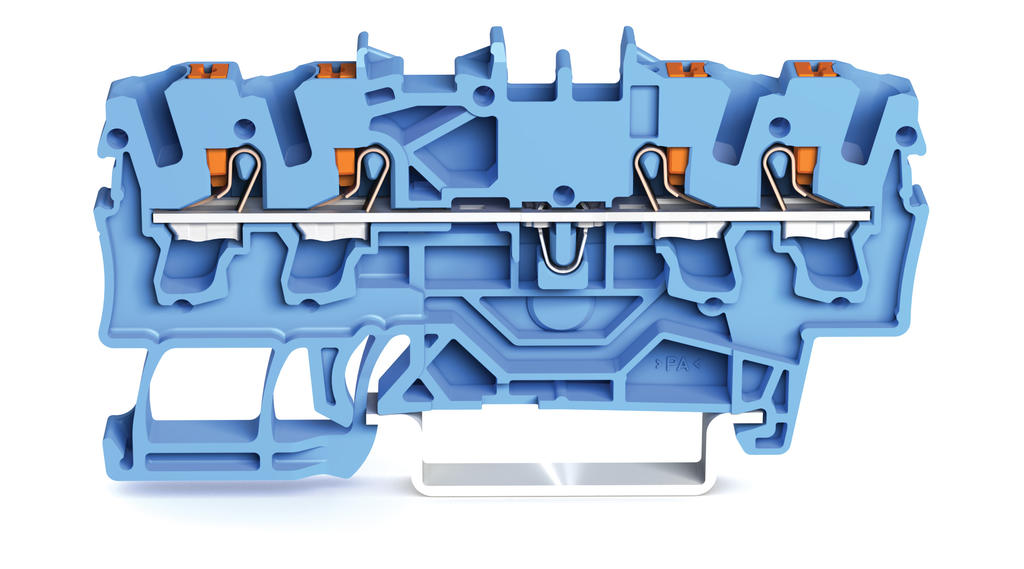

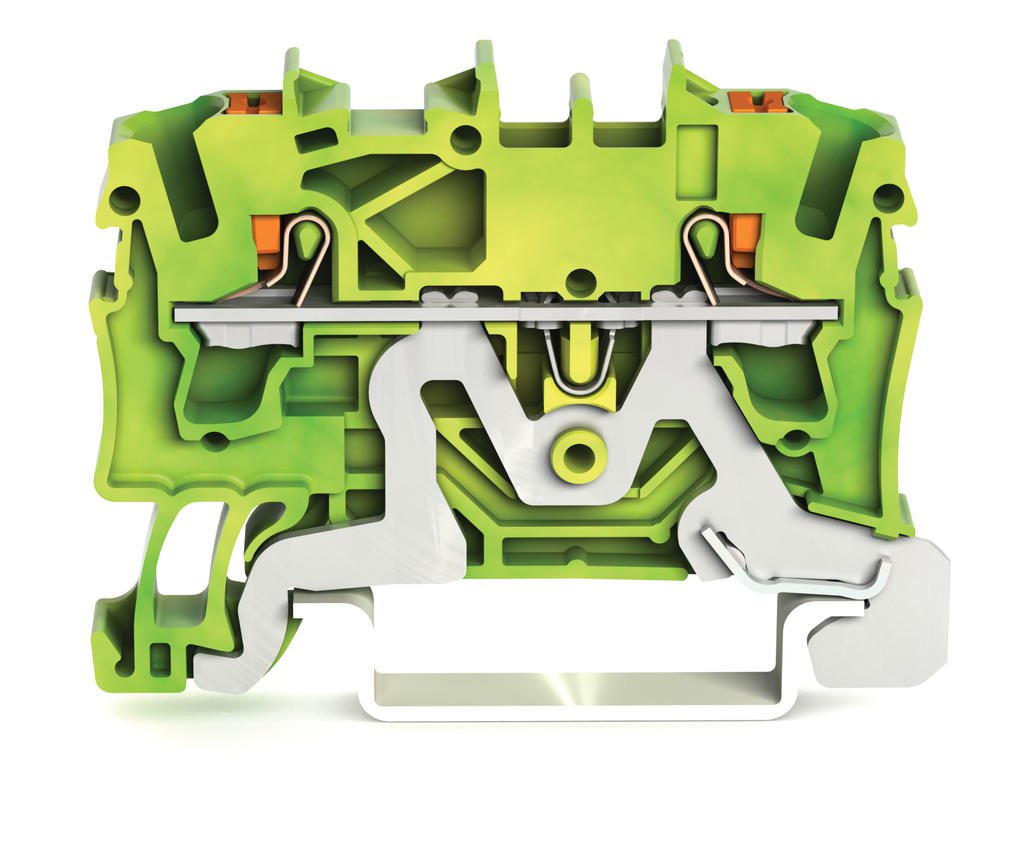

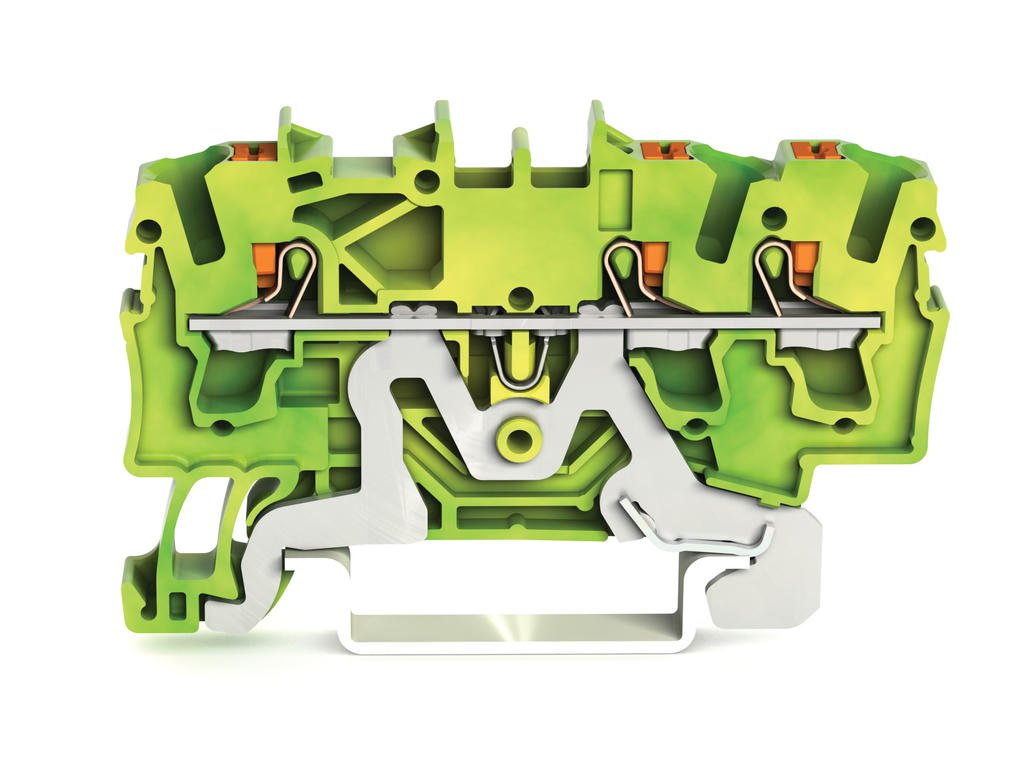

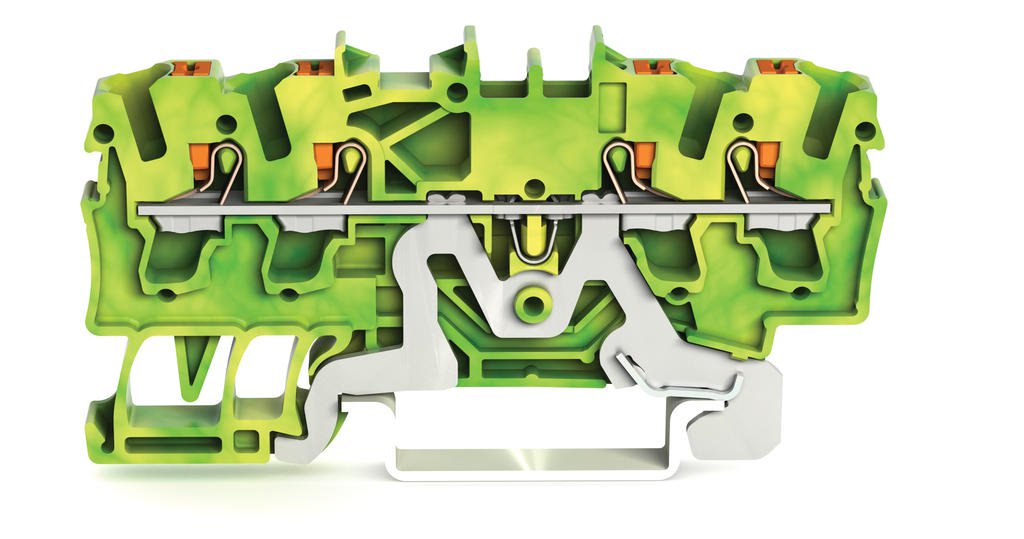

Parameters / Models	2202-1201	2202-1204	2202-1207	2202-1301	2202-1304	2202-1307	2202-1401	2202-1404	2202-1407
Actuation type	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Цвет	gray	blue	green-yellow	gray	blue	green-yellow	gray	blue	green-yellow
Connectable conductor materials	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper	Copper
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	50.8 mm / 2 inch	59.2 mm / 2.33 inch	59.2 mm / 2.33 inch	59.2 mm / 2.33 inch	69.9 mm / 2.752 inch	69.9 mm / 2.752 inch	69.9 mm / 2.752 inch
Design	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG
Fire load, MJ									0.151
GTIN	4055143713542	4055143713566	4055143713580	4055143713795	4055143713832	4055143713856	4055143713870	4055143713894	4055143713917
Height from upper-edge of DIN-35 rail	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking
Nominal cross section	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²
Number of levels	1	1	1	1	1	1	1	1	1
Packaging type	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
Rated current, A	24	24		24	24		24	24
Rated current (2), A	32	32		32	32		32	32
Rated impulse voltage (III / 3), kV	8	8		8	8		8	8
Rated voltage (III / 3), В	800	800		800	800		800	800
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	2	2	2	3	3	3	4	4	4
Total number of potentials	1	1	1	1	1	1	1	1	1
Type of mounting	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Вес, г	5.372	5.372	8.242	6.471	6.471	9.341	7.744	7.864	10.794
Ширина	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch

Модельный ряд

Классификация производителя

• Rail / Chassis Terminal blocks
