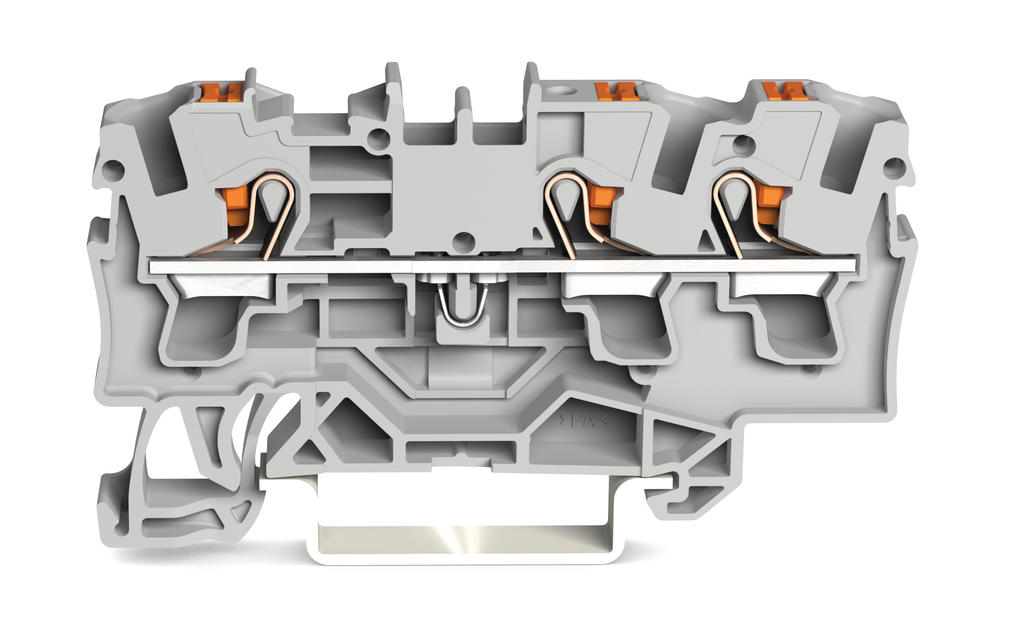

Datasheet Wago 2204 — Даташит
| Производитель | Wago |
| Серия | 2204 |
Цены

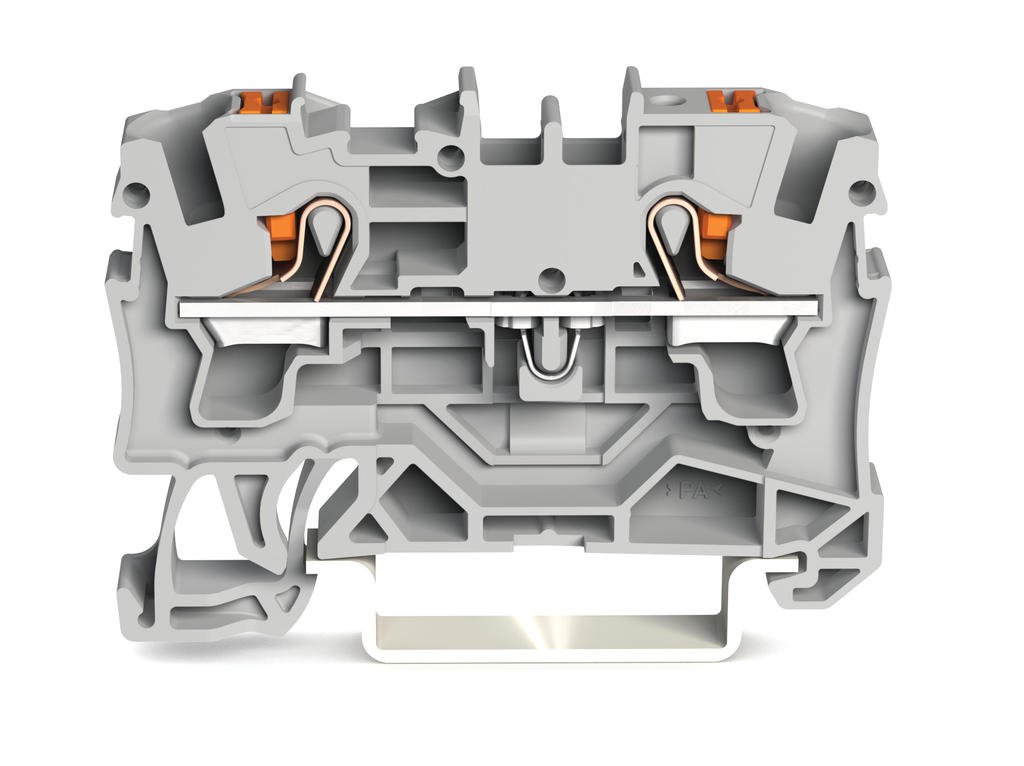

 Купить 2204-1201 на РадиоЛоцман.Цены — от 323 до 520 ₽17 предложений от 6 поставщиков 2204-1201, 2-пров. клемма с наж.кнопкой, 0,5 - 4 (6) мм2, серая | |||
| 2204-1201 | от 323 ₽ | ||
| 2204-1201 Wago | от 460 ₽ | ||
| 2204-1201 Wago | 520 ₽ | ||
| 22041201 | по запросу | ||
Параметры

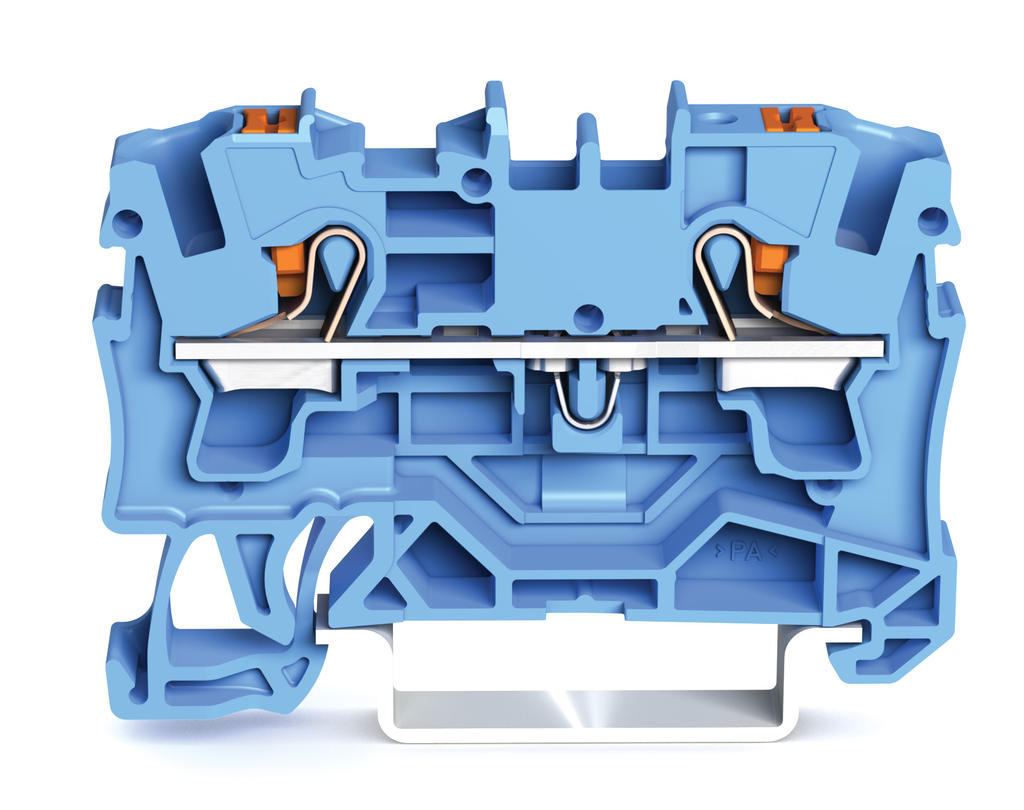

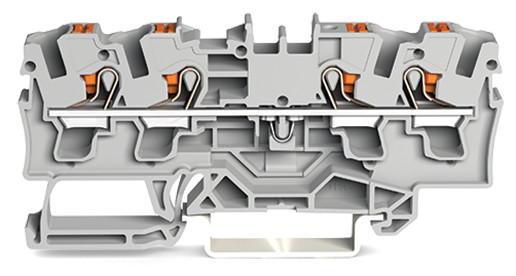

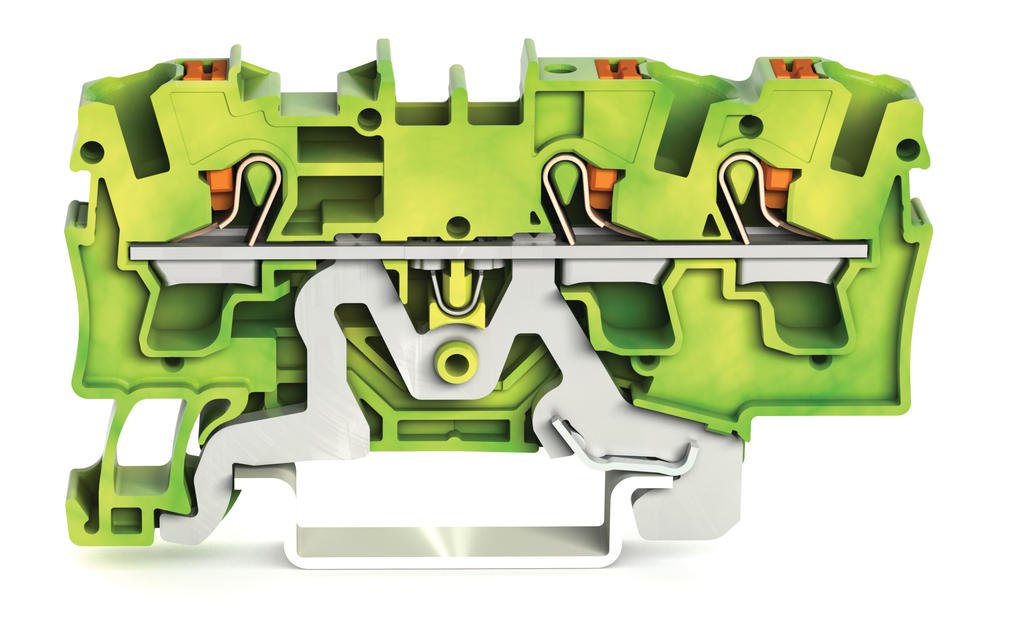

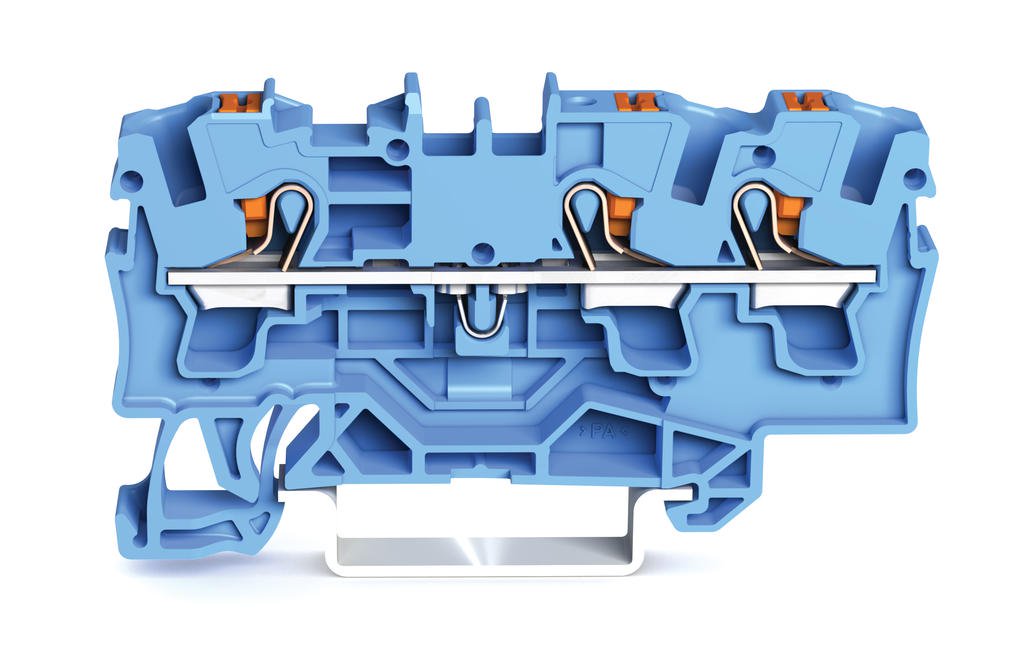

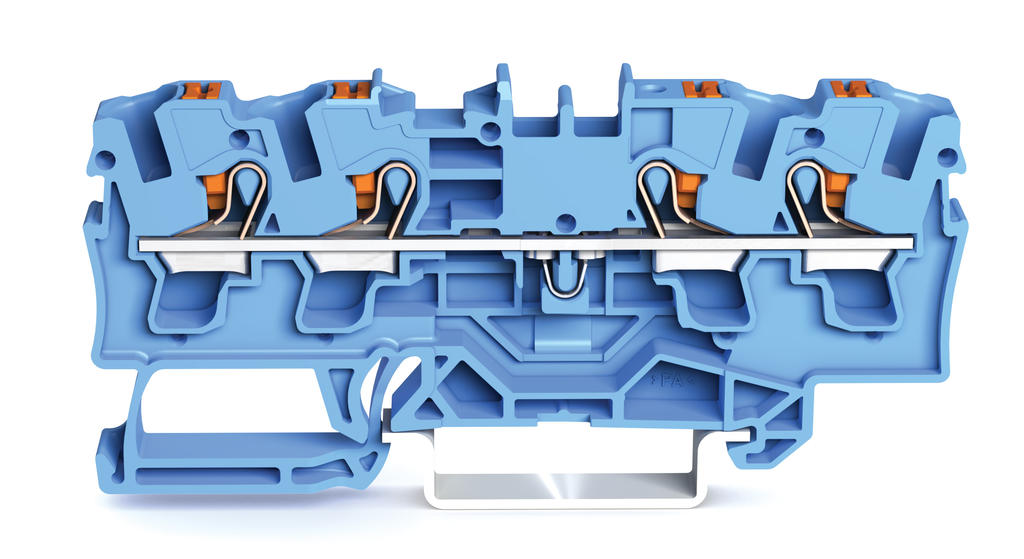

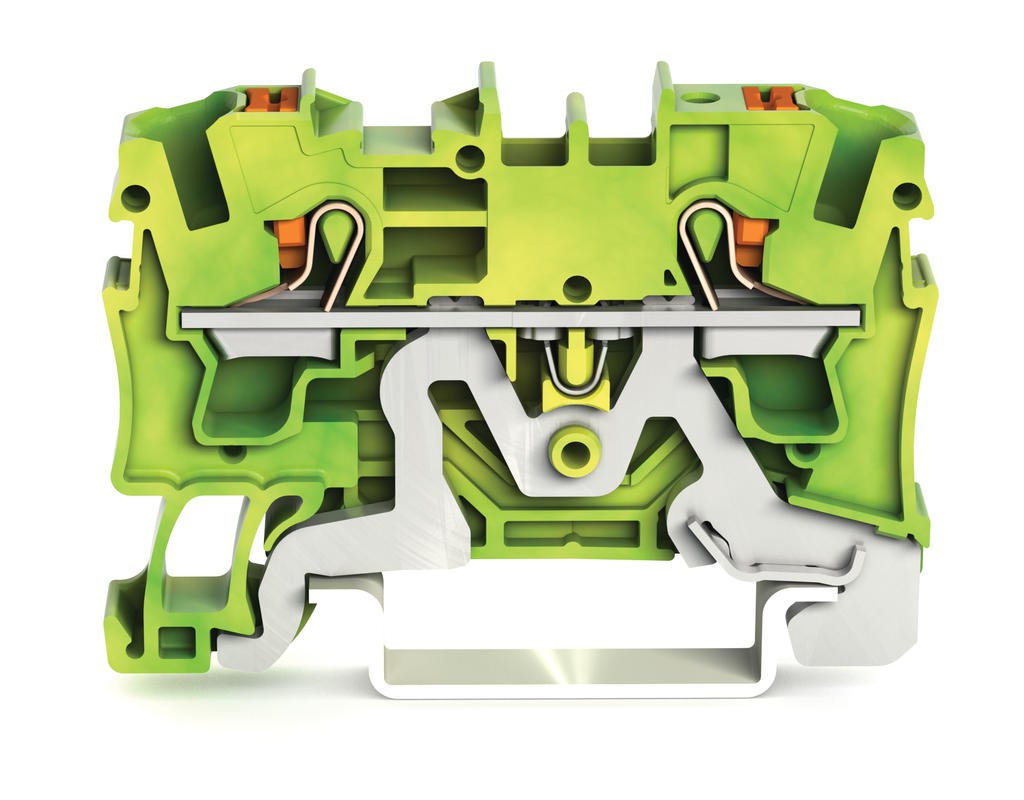

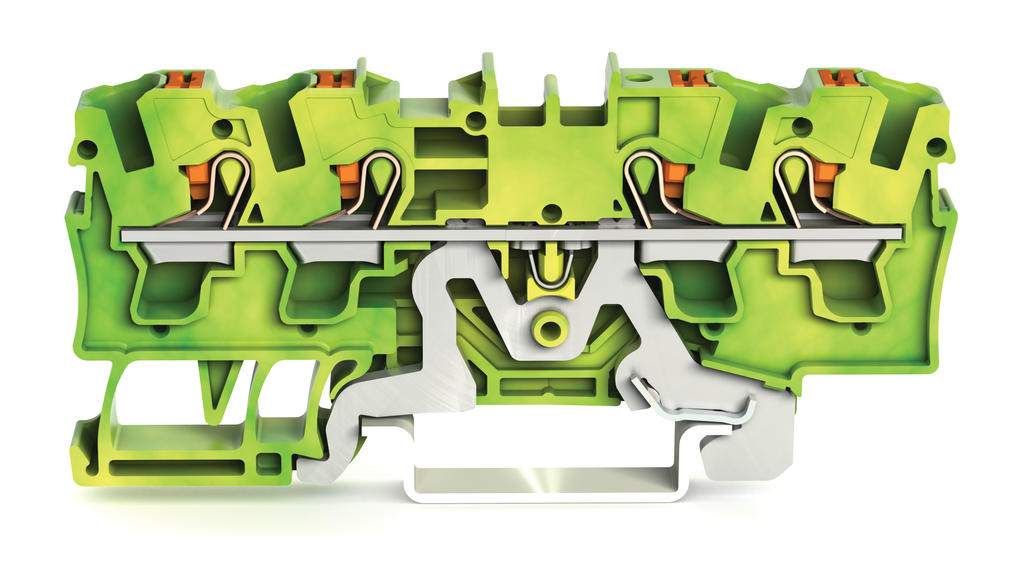

| Parameters / Models | 2204-1201 | 2204-1204 | 2204-1207 | 2204-1301 | 2204-1304 | 2204-1307 | 2204-1401 | 2204-1404 | 2204-1407 |
|---|---|---|---|---|---|---|---|---|---|
| Actuation type | Push-button | Push-button | Push-button | Push-button | Push-button | Push-button | Push-button | Push-button | Push-button |
| Цвет | gray | blue | green-yellow | gray | blue | green-yellow | gray | blue | green-yellow |
| Connectable conductor materials | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Connection technology | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® | Push-in CAGE CLAMP® |
| Country of origin | DE | DE | DE | DE | DE | DE | DE | DE | DE |
| Габариты: глубина | 52.3 mm / 2.059 inch | 52.3 mm / 2.059 inch | 52.3 mm / 2.059 inch | 65.5 mm / 2.579 inch | 65.5 mm / 2.579 inch | 65.5 mm / 2.579 inch | 78.7 mm / 3.098 inch | 78.7 mm / 3.098 inch | 78.7 mm / 3.098 inch |
| Design | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal |
| Fine-stranded conductor | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG | 0.75 mm² / 18 AWG |
| GTIN | 4055143711494 | 4055143711470 | 4055143711456 | 4055143711432 | 4055143711418 | 4055143711395 | 4055143711371 | 4055143711357 | 4055143711333 |
| Height from upper-edge of DIN-35 rail | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch | 32.9 mm / 1.295 inch |
| Insulating material | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | |||
| Marking level | Center/side marking | Center/side marking | Center/side marking | Center/side marking | Center/side marking | Center/side marking | Center/side marking | Center/side marking | Center/side marking |
| Nominal cross section | 4 mm² | 4 mm² | 4 mm² | 4 mm² | 4 mm² | 4 mm² | 4 mm² | 4 mm² | 4 mm² |
| Number of levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Packaging type | BOX | BOX | BOX | BOX | BOX | BOX | BOX | BOX | BOX |
| Rated current, A | 32 | 32 | 32 | 32 | 32 | 32 | |||
| Rated current (2), A | 41 | 41 | 41 | 41 | 41 | 41 | |||
| Rated impulse voltage (III / 3), kV | 8 | 8 | 8 | 8 | 8 | 8 | |||
| Rated voltage (III / 3), В | 800 | 800 | 800 | 800 | 800 | 800 | |||
| Solid conductor | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG | 0.5 … 6 mm² / 20 … 10 AWG |
| Solid conductor, push-in termination | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG | 1 … 6 mm² / 14 … 10 AWG |
| Strip length | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch | 11 … 13 mm / 0.43 … 0.51 Inch |
| Total number of connection points | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 |
| Total number of potentials | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Type of mounting | DIN-35 rail | DIN-35 rail | DIN-35 rail | DIN-35 rail | DIN-35 rail | DIN-35 rail | DIN-35 rail | DIN-35 rail | DIN-35 rail |
| Type of wiring | Front-entry wiring | Front-entry wiring | Front-entry wiring | Front-entry wiring | Front-entry wiring | Front-entry wiring | Front-entry wiring | Front-entry wiring | Front-entry wiring |
| Вес, г | 7.239 | 7.239 | 12.259 | 9.161 | 9.161 | 14.071 | 11.294 | 11.294 | 16.084 |
| Ширина | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch | 6.2 mm / 0.244 inch |
Модельный ряд
Серия: 2204 (9)
Классификация производителя
- Rail / Chassis Terminal blocks
