Datasheet Wago 2116 — Даташит

Производитель	Wago
Серия	2116

Цены

Купить 2116-1201 на РадиоЛоцман.Цены — от 574 до 6 067 ₽ 23 предложений от 9 поставщиков Клеммная колодка на DIN рейку, Through, 2 вывод(-ов), 20 AWG, 6 AWG, 16 мм², Зажим, 76 А
Компонентс Ру Россия	2116-1201 Wago	от 574 ₽	Купить
Зенер Россия и страны ТС	2116-1201	от 600 ₽	Купить
Онлайн Компоненты Россия	2116-1201 Wago	от 804 ₽	Купить
AllElco Electronics Весь мир	XT2116-1201 Dynex	по запросу	Купить

Параметры

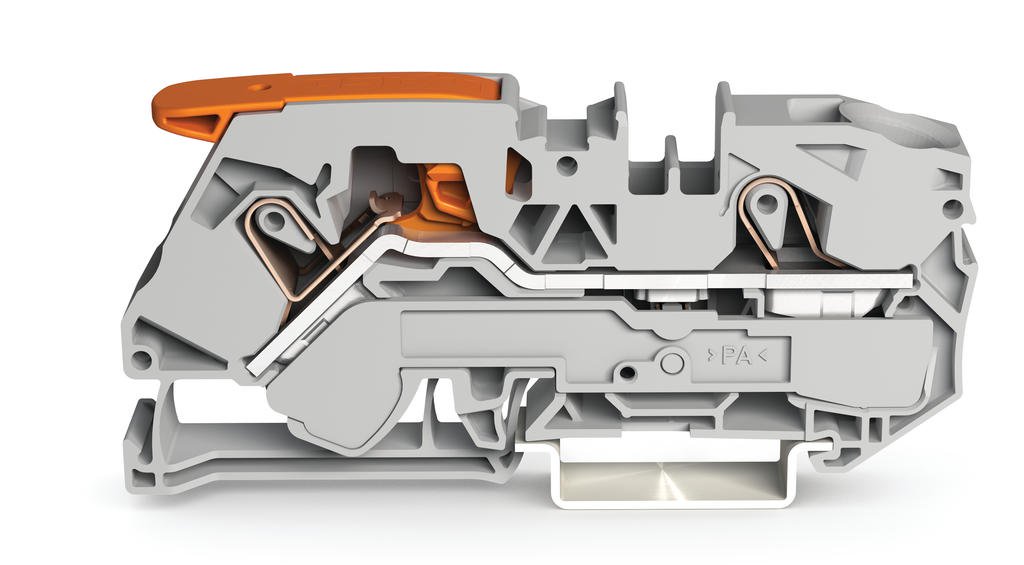

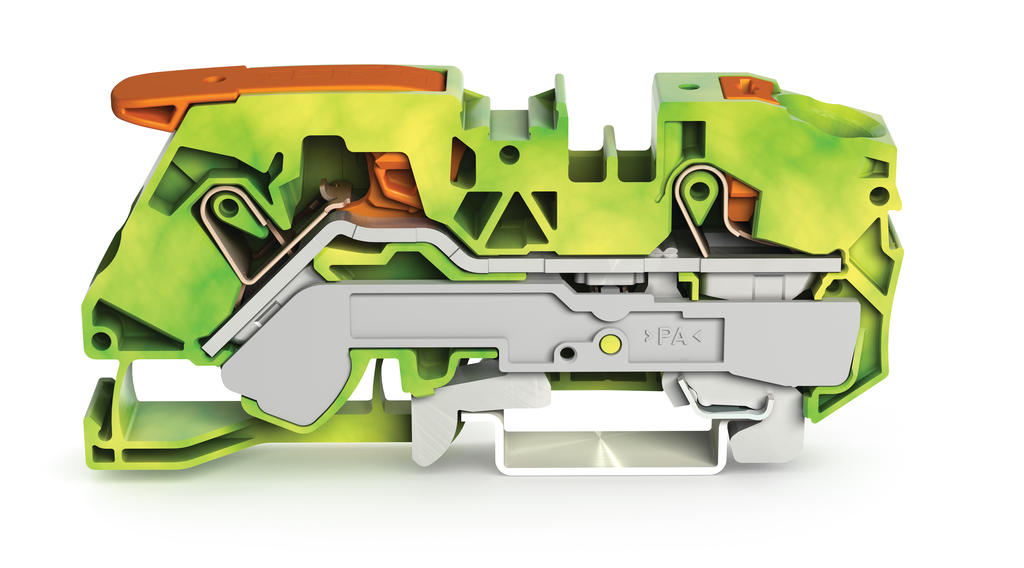

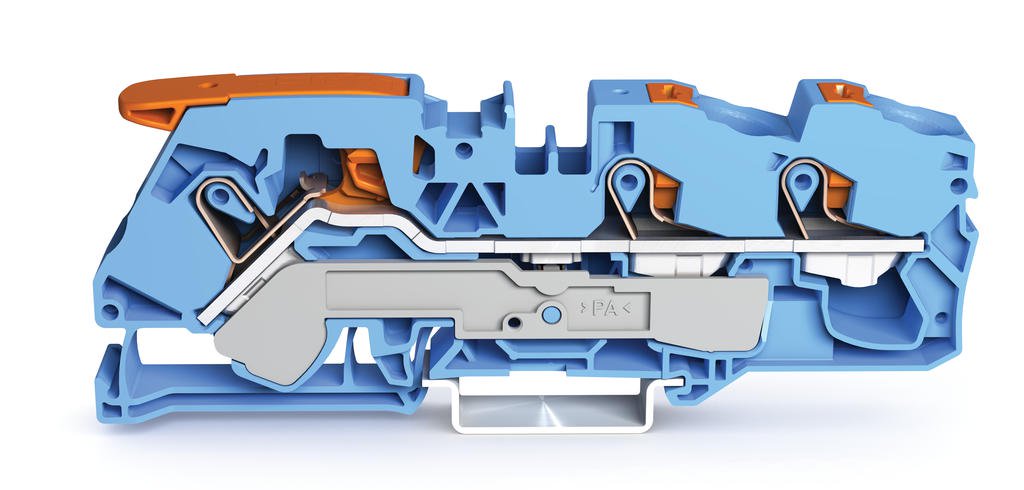

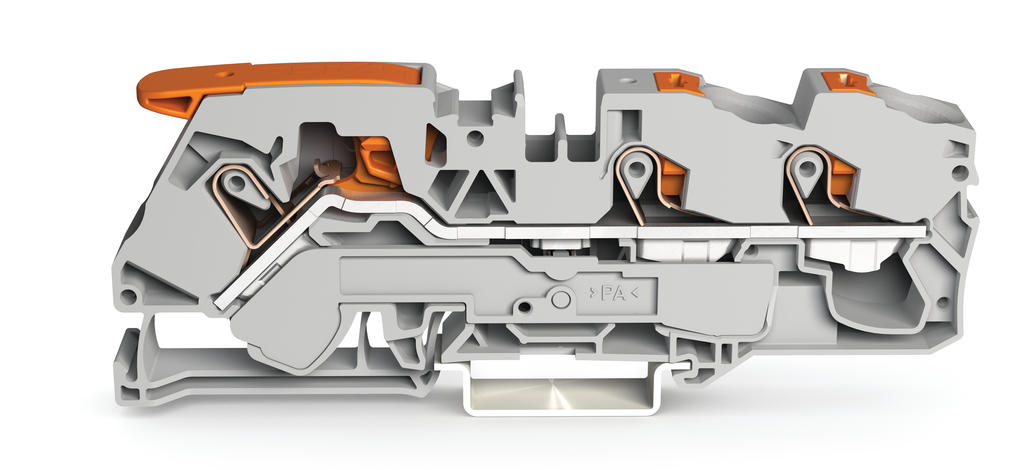

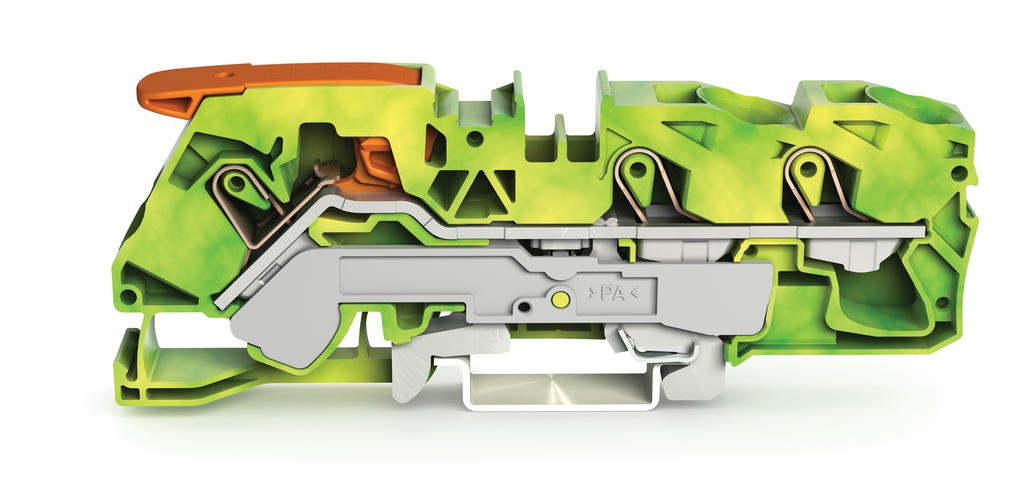

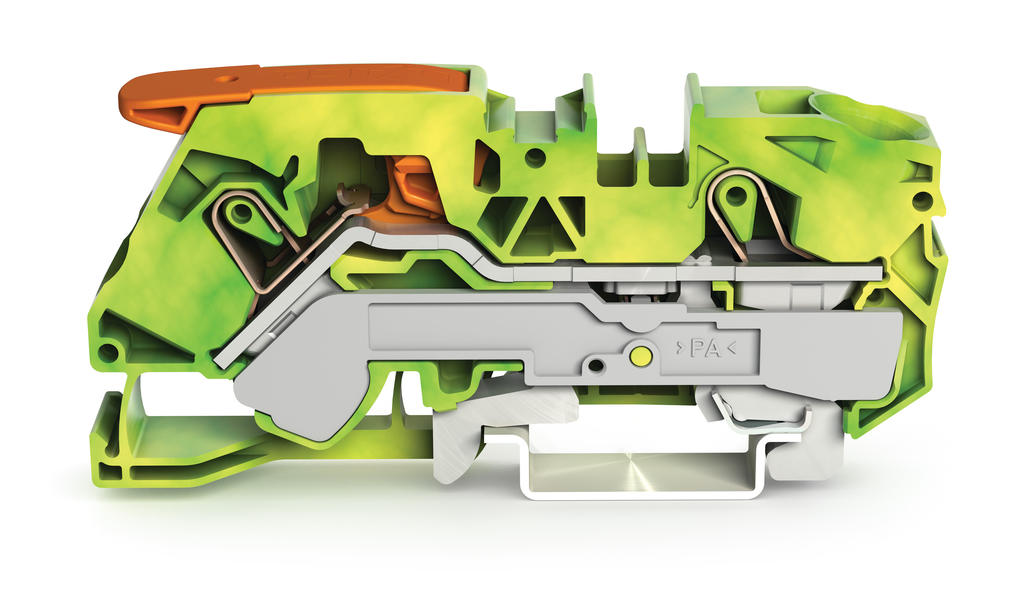

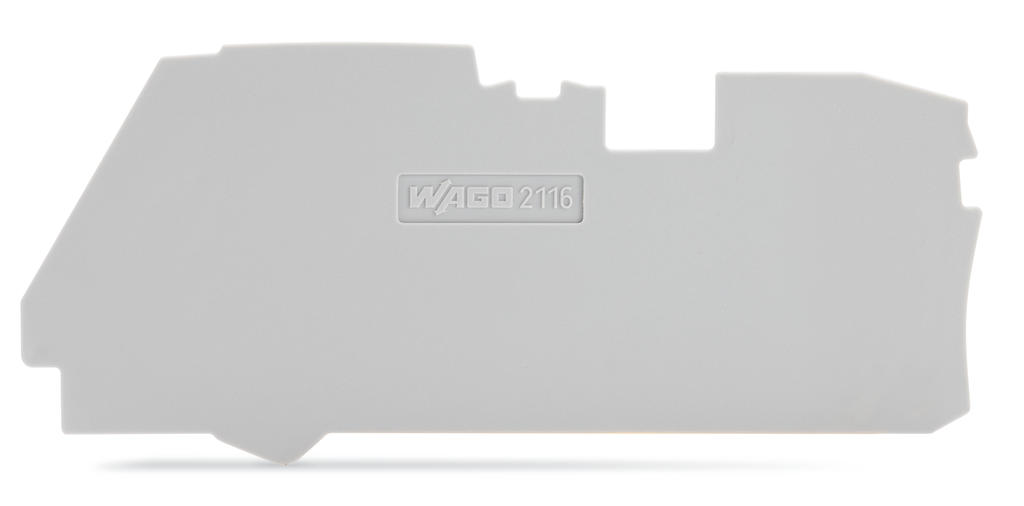

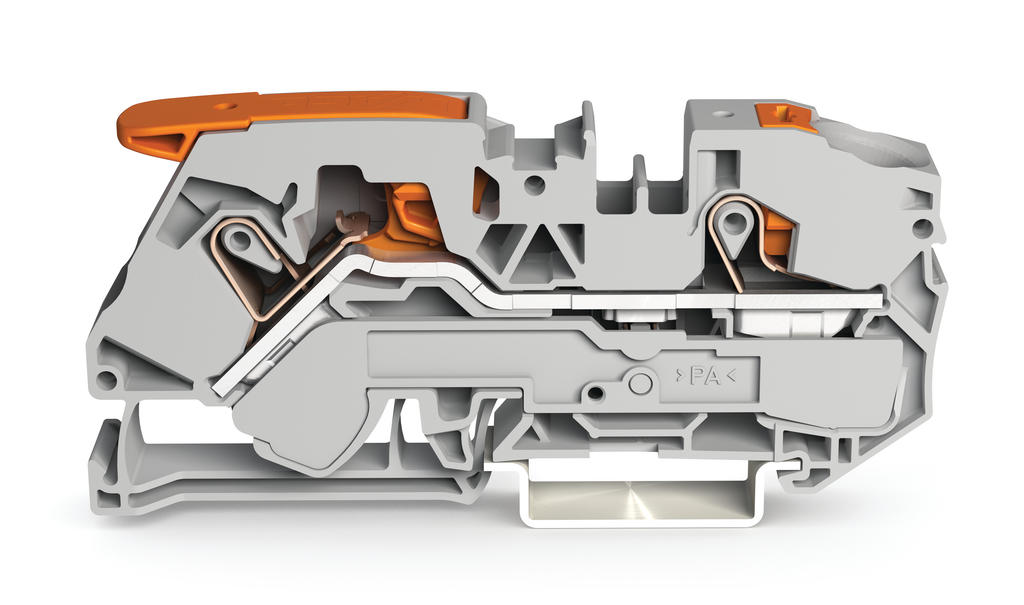

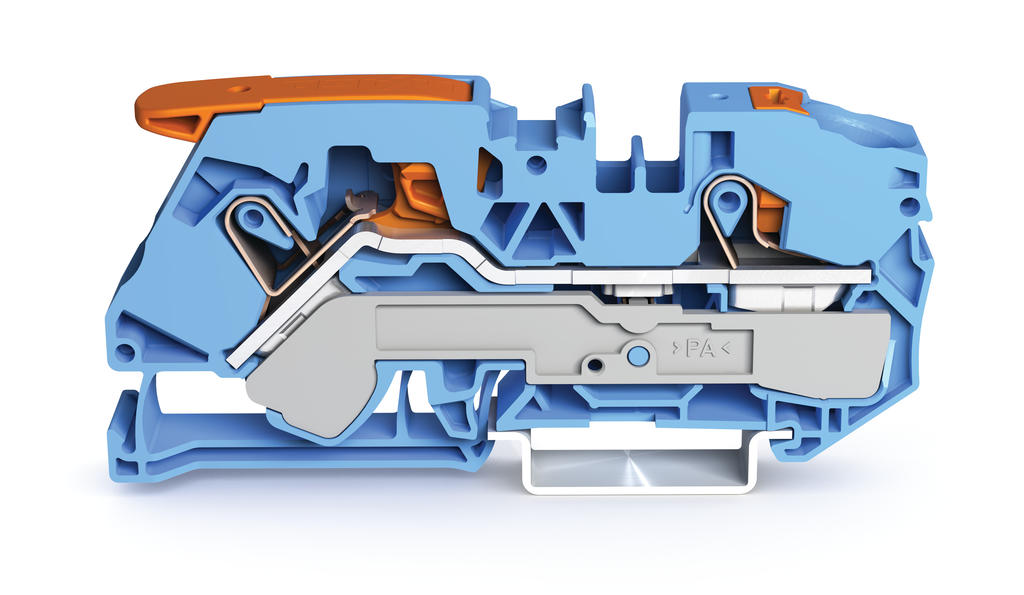

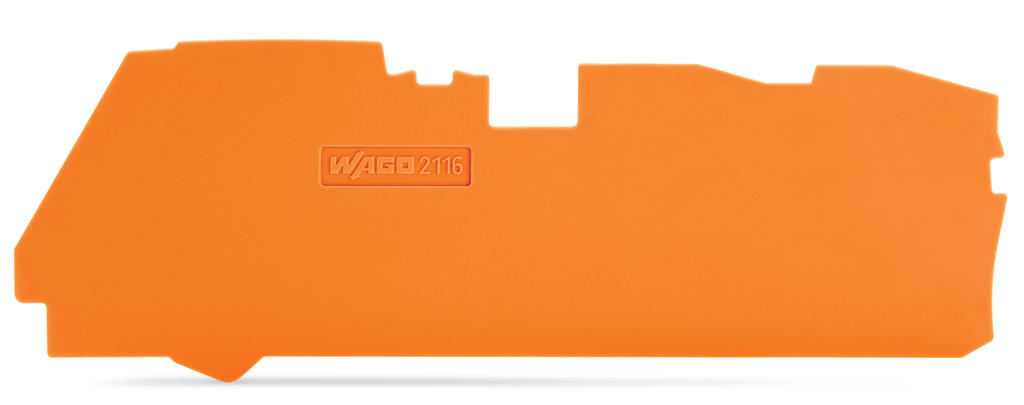

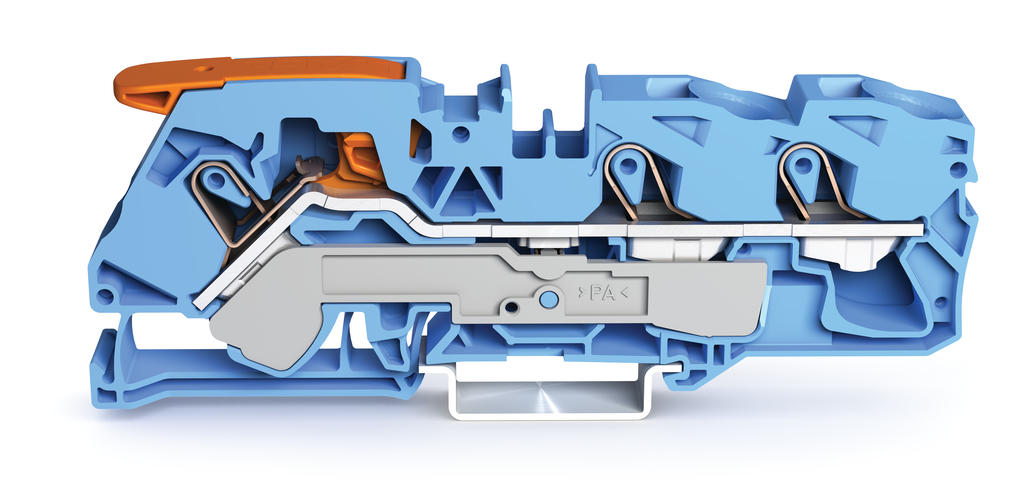

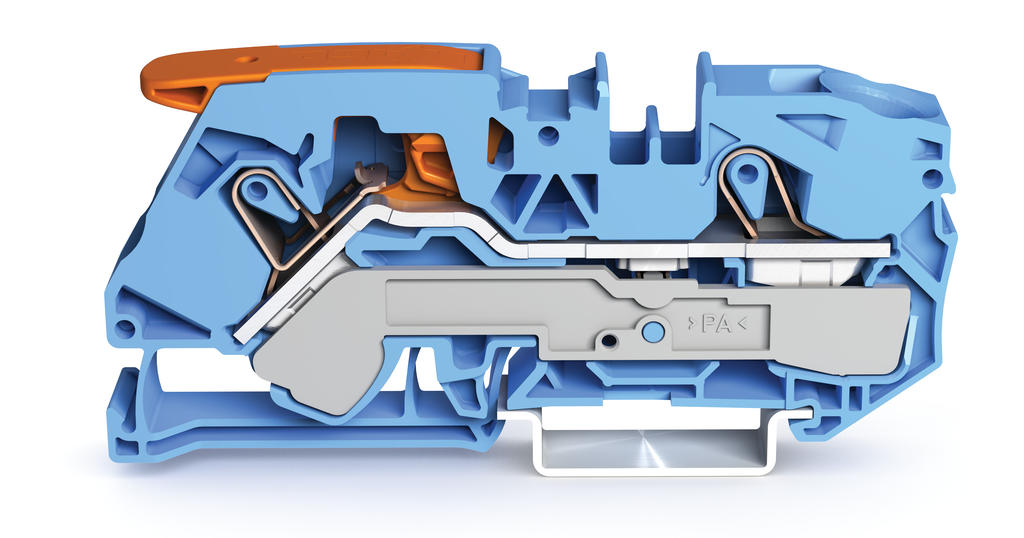

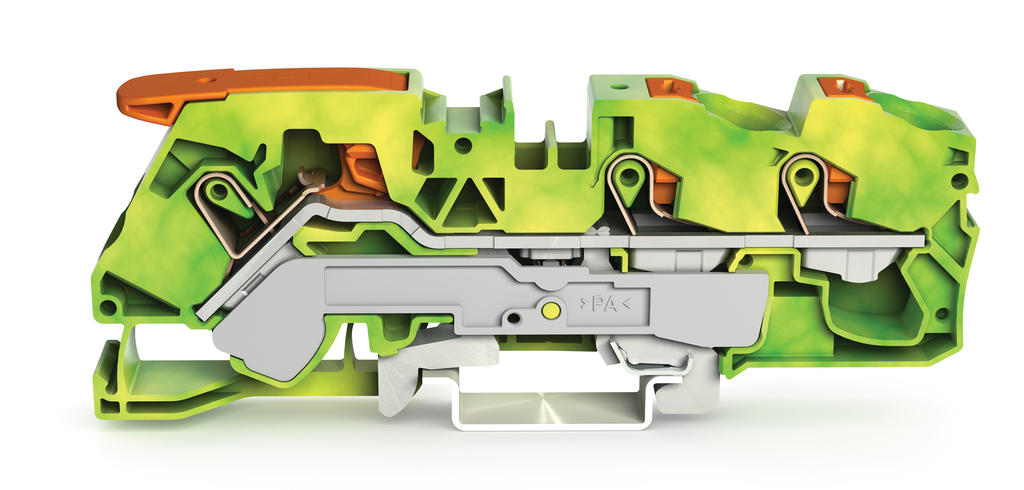

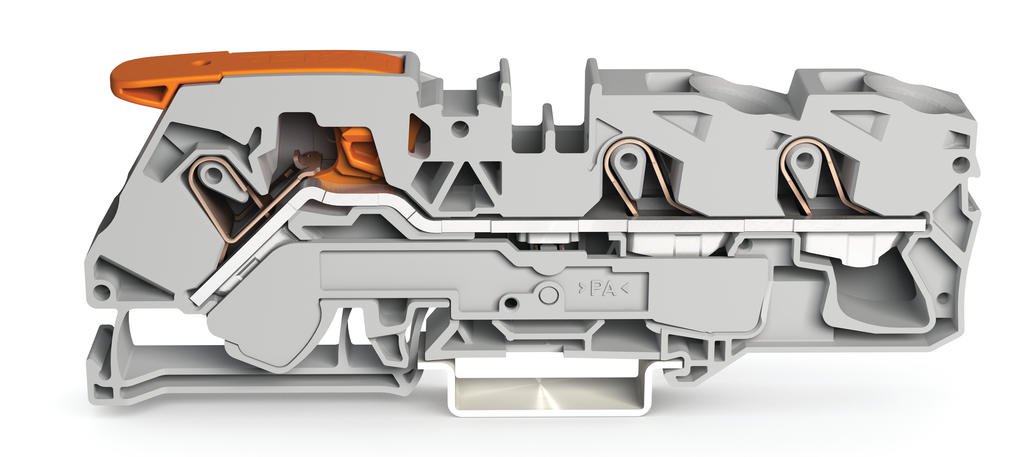

Parameters / Models	2116-1201	2116-1204	2116-1207	2116-1291	2116-1292	2116-1301	2116-1304	2116-1307	2116-1391	2116-1392	2116-5201	2116-5204	2116-5207	2116-5301	2116-5304	2116-5307
Actuation type	Lever and Open Tool Slot	Lever and Open Tool Slot	Lever and Open Tool Slot			Lever and Open Tool Slot	Lever and Open Tool Slot	Lever and Open Tool Slot			Lever and Push-button	Lever and Push-button	Lever and Push-button	Lever and Push-button	Lever and Push-button	Lever and Push-button
Actuation type 2, Push-button	Push-in	Push-in	Push-in			Push-in	Push-in	Push-in			Push-in	Push-in	Push-in	Push-in	Push-in	Push-in
Цвет	gray	blue	green-yellow	gray	orange	gray	blue	green-yellow	gray	orange	gray	blue	green-yellow	gray	blue	green-yellow
Connectable conductor materials	Copper	Copper	Copper			Copper	Copper	Copper			Copper	Copper	Copper	Copper	Copper	Copper
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®			Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®			Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина	91.5 mm / 3.602 inch	91.5 mm / 3.602 inch	91.5 mm / 3.602 inch	91 mm / 3.583 inch	91 mm / 3.583 inch	113.5 mm / 4.469 inch	113.5 mm / 4.469 inch	113.5 mm / 4.469 inch	113.5 mm / 4.469 inch	113.5 mm / 4.469 inch	91.5 mm / 3.602 inch	91.5 mm / 3.602 inch	91.5 mm / 3.602 inch	113.5 mm / 4.469 inch	113.5 mm / 4.469 inch	113.5 mm / 4.469 inch
Design	horizontal	horizontal	horizontal			horizontal	horizontal	horizontal			horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG			0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG			0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG
Fine-stranded conductor with ferrule, push-in termination, from	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG			2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG			2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG
GTIN	4055143754422	4055143754439	4055143754446	4055143747547	4055143747554	4055143746045	4055143746120	4055143746137	4055143747561	4055143747578	4055143754507	4055143754484	4055143754453	4055143746144	4055143746151	4055143746168
Height				36.5 mm / 1.437 inch	36.5 mm / 1.437 inch				36.5 mm / 1.437 inch	36.5 mm / 1.437 inch
Height from upper-edge of DIN-35 rail	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch			36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch			37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)			Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)			Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3				(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3				(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center/side marking	Center/side marking	Center/side marking			Center/side marking	Center/side marking	Center/side marking			Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking
Nominal cross section	16 mm²	16 mm²	16 mm²			16 mm²	16 mm²	16 mm²			16 mm²	16 mm²	16 mm²	16 mm²	16 mm²	16 mm²
Number of levels	1	1	1			1	1	1			1	1	1	1	1	1
Packaging type	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
Rated current, A	76	76				76	76				76	76		76	76
Rated current (2), A	90	90				90	90				90	90		90	90
Rated impulse voltage (III / 3), kV	8	8				8	8				8	8		8	8
Rated voltage (III / 3), В	800	800				800	800				800	800		800	800
Solid conductor	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG			0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG			0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG
Solid conductor, push-in termination	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG			2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG			2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG
Strip length	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch			18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch			18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch
Total number of connection points	2	2	2			3	3	3			2	2	2	3	3	3
Total number of potentials	1	1	1			1	1	1			1	1	1	1	1	1
Type of mounting	DIN-35 rail	DIN-35 rail	DIN-35 rail			DIN-35 rail	DIN-35 rail	DIN-35 rail			DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring			Front-entry wiring	Front-entry wiring	Front-entry wiring			Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Вес, г	32.1	32.2	39.781	3.25	3.25	40.303	40.303	56.183	4.09	4.09	32.35	23.999	40.159	40.979	40.979	56.859
Ширина	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	1 mm / 0.039 inch	1 mm / 0.039 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	1 mm / 0.039 inch	1 mm / 0.039 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch

Модельный ряд

Классификация производителя

• Rail / Chassis Terminal blocks
