Datasheet Wago 2216 — Даташит

Производитель	Wago
Серия	2216

Цены

Купить 2216-1201 на РадиоЛоцман.Цены — от 505 до 19 819 ₽ 20 предложений от 7 поставщиков Клеммная колодка на DIN рейку, 2 вывод(-ов), 20 AWG, 6 AWG, 16 мм², Вставной, 76 А
Компонентс Ру Россия	2216-1201 Wago	от 505 ₽
Элитан Россия	2216-1201 Wago	659 ₽
Augswan Весь мир	2216-1201 Wago	по запросу
Амарид-Электро Россия	2216-1201 Wago Оф. дистрибьютор	по запросу

Параметры

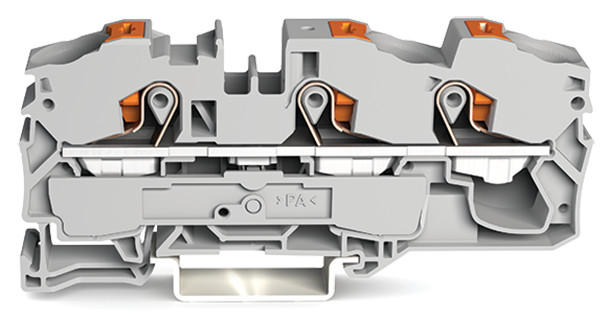

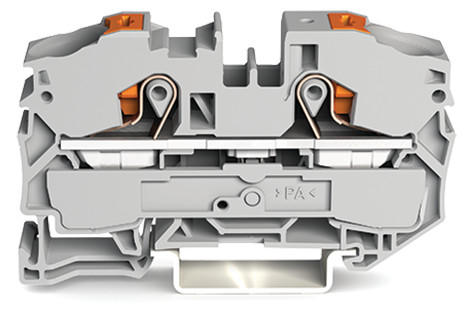

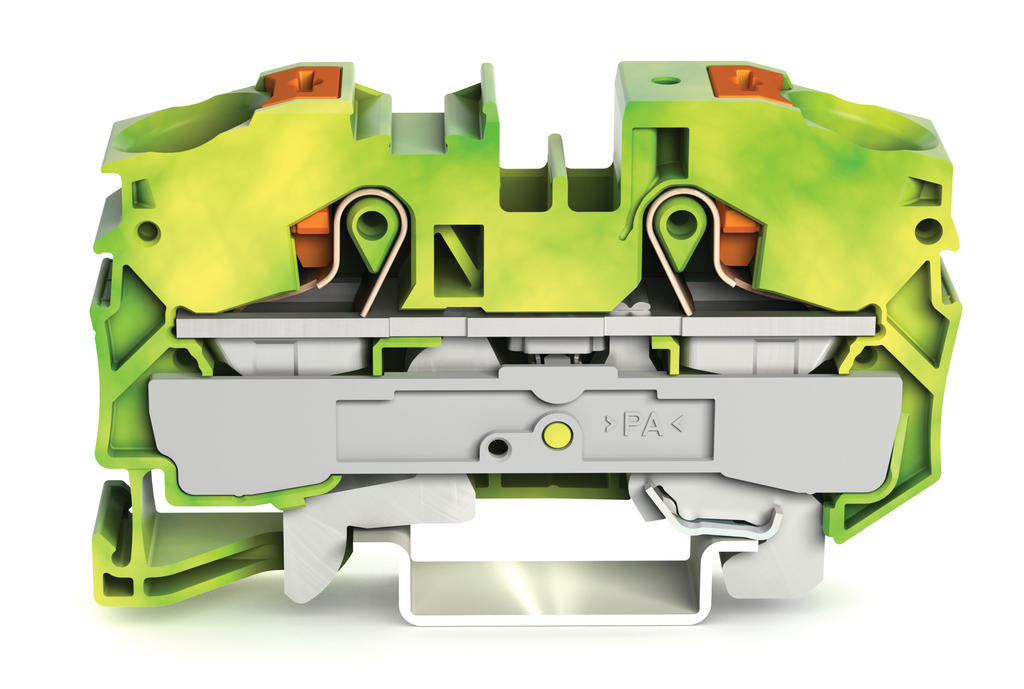

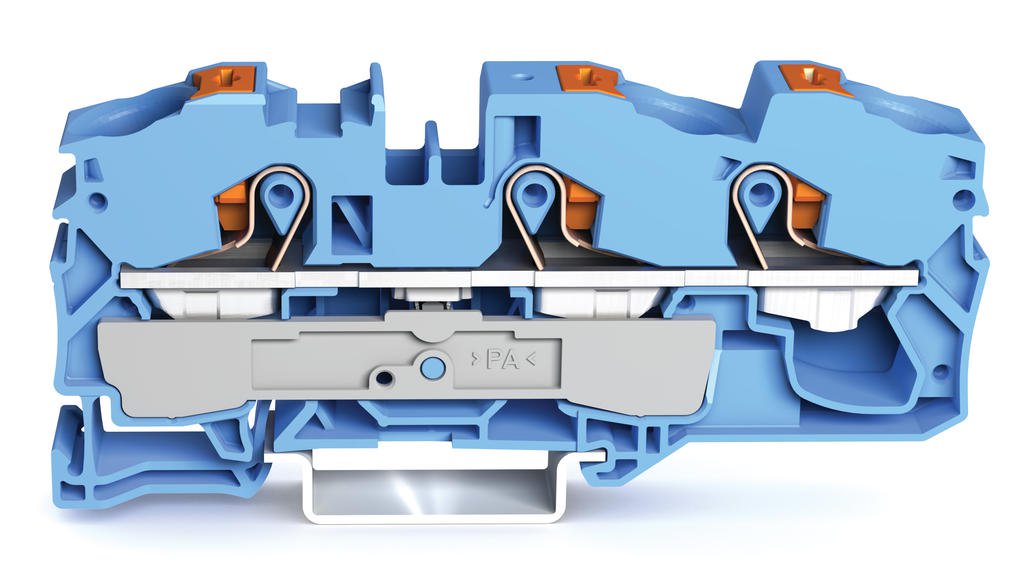

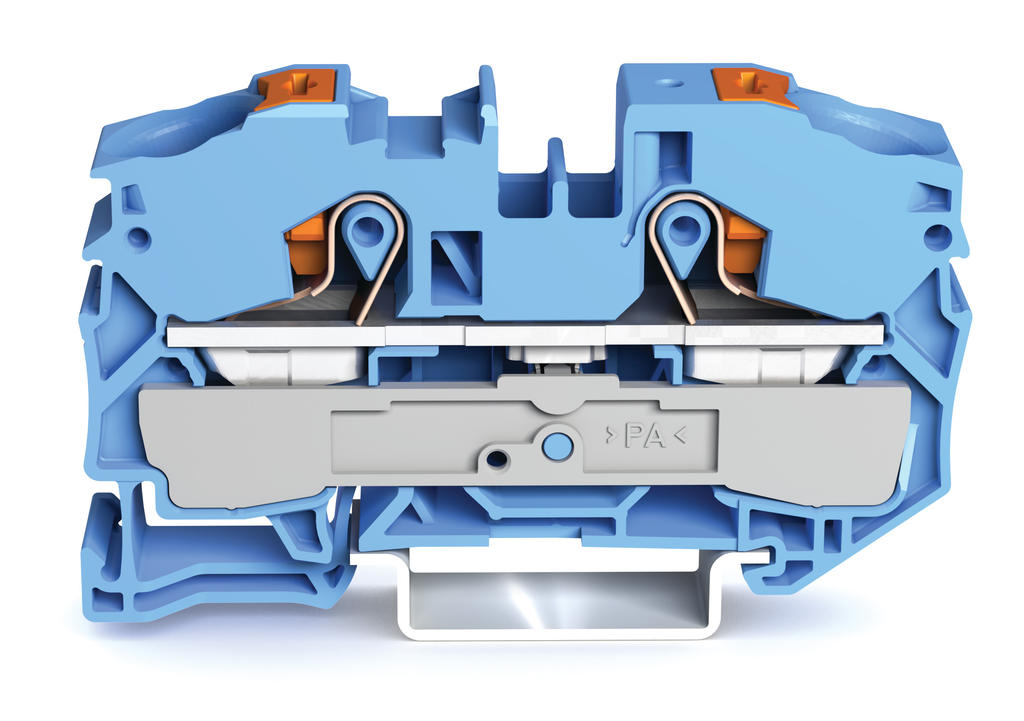

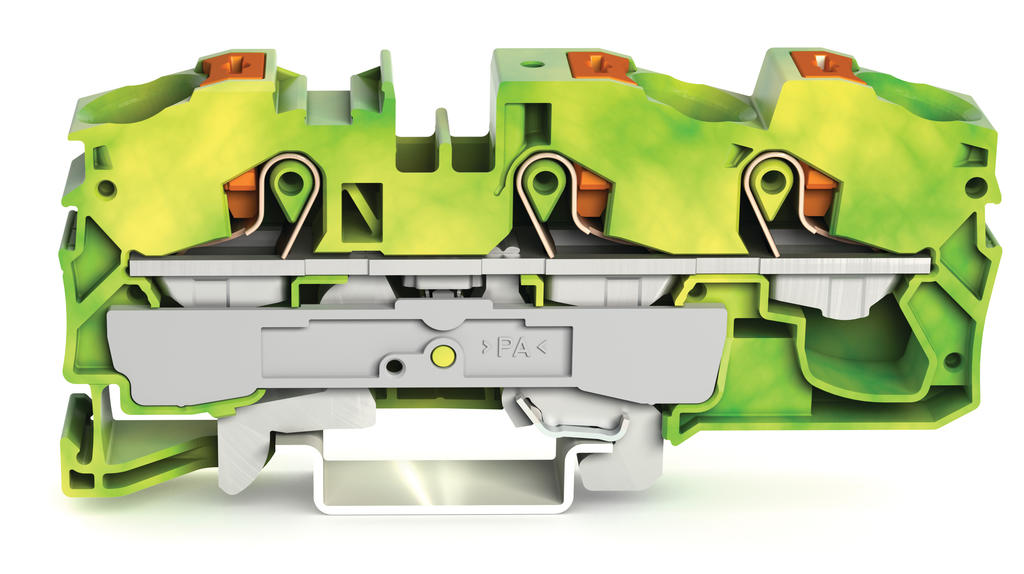

Parameters / Models	2216-1201	2216-1204	2216-1207	2216-1301	2216-1304	2216-1307
Actuation type	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Цвет	gray	blue	green-yellow	gray	blue	green-yellow
Connectable conductor materials	Copper	Copper	Copper	Copper	Copper	Copper
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Country of origin	DE	DE	DE	DE	DE	DE
Габариты: глубина	69.8 mm / 2.748 inch	69.8 mm / 2.748 inch	69.8 mm / 2.748 inch	91.8 mm / 3.622 inch	91.8 mm / 3.622 inch	91.8 mm / 3.622 inch
Design	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG	0.5 … 25 mm² / 20 … 4 AWG
Fine-stranded conductor with ferrule, push-in termination, from	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG
GTIN	4055143732727	4055143732734	4055143732765	4055143732789	4055143732796	4055143732802
Height from upper-edge of DIN-35 rail	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch	37.1 mm / 1.461 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking
Nominal cross section	16 mm²	16 mm²	16 mm²	16 mm²	16 mm²	16 mm²
Number of levels	1	1	1	1	1	1
Packaging type	BOX	BOX	BOX	BOX	BOX	BOX
Rated current, A	76	76		76	76
Rated current (2), A	90	90		90	90
Rated impulse voltage (III / 3), kV	8	8		8	8
Rated voltage (III / 3), В	800	800		800	800
Solid conductor	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG
Solid conductor, push-in termination	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG
Strip length	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch	18 … 20 mm / 0.71 … 0.79 Inch
Total number of connection points	2	2	2	3	3	3
Total number of potentials	1	1	1	1	1	1
Type of mounting	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Вес, г	23.78	23.78	39.732	32.229	32.229	48.002
Ширина	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch

Модельный ряд

Серия: 2216 (6)

2216-1201 2216-1204 2216-1207 2216-1301 2216-1304 2216-1307

Классификация производителя

Rail / Chassis Terminal blocks
