Datasheet Wago 2210 — Даташит

Производитель	Wago
Серия	2210

Цены

Купить 2210-1201 на РадиоЛоцман.Цены — от 424 до 773 ₽ 19 предложений от 6 поставщиков Клеммная колодка на DIN рейку, 2 вывод(-ов), 20 AWG, 6 AWG, 10 мм², Вставной, 57 А
Компонентс Ру Россия	2210-1201 Wago	от 424 ₽
Амарид-Электро Россия	2210-1201 Wago Оф. дистрибьютор	437 ₽
Онлайн Компоненты Россия	2210-1201 Wago	от 593 ₽
Augswan Весь мир	2210-1201 Wago	по запросу

Параметры

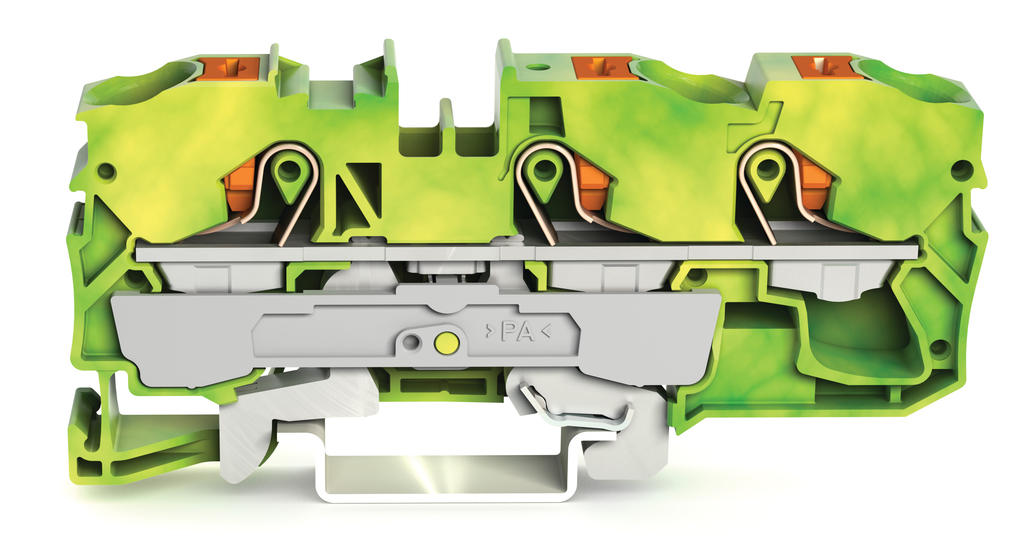

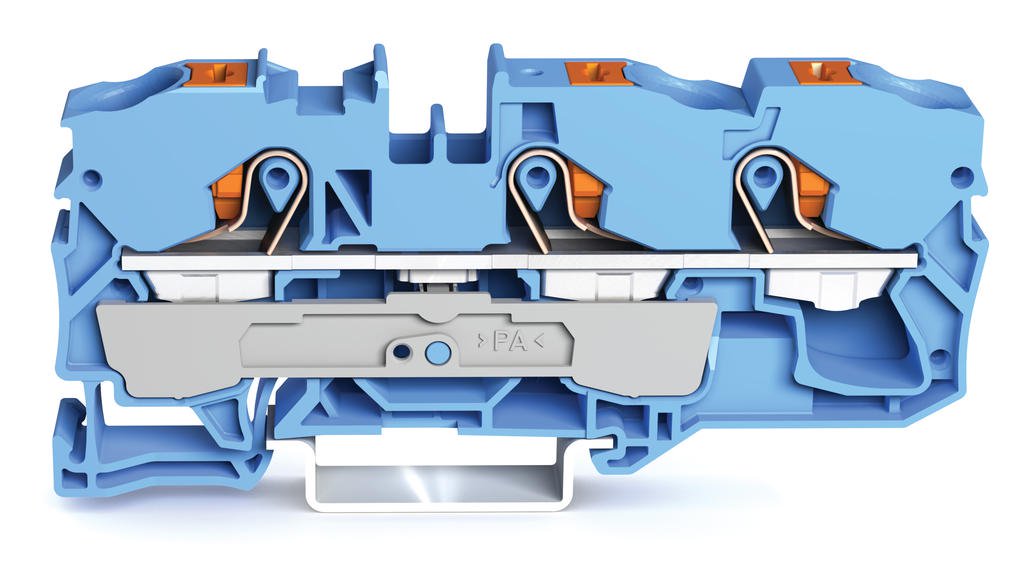

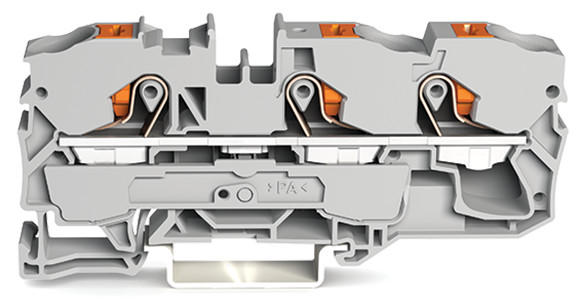

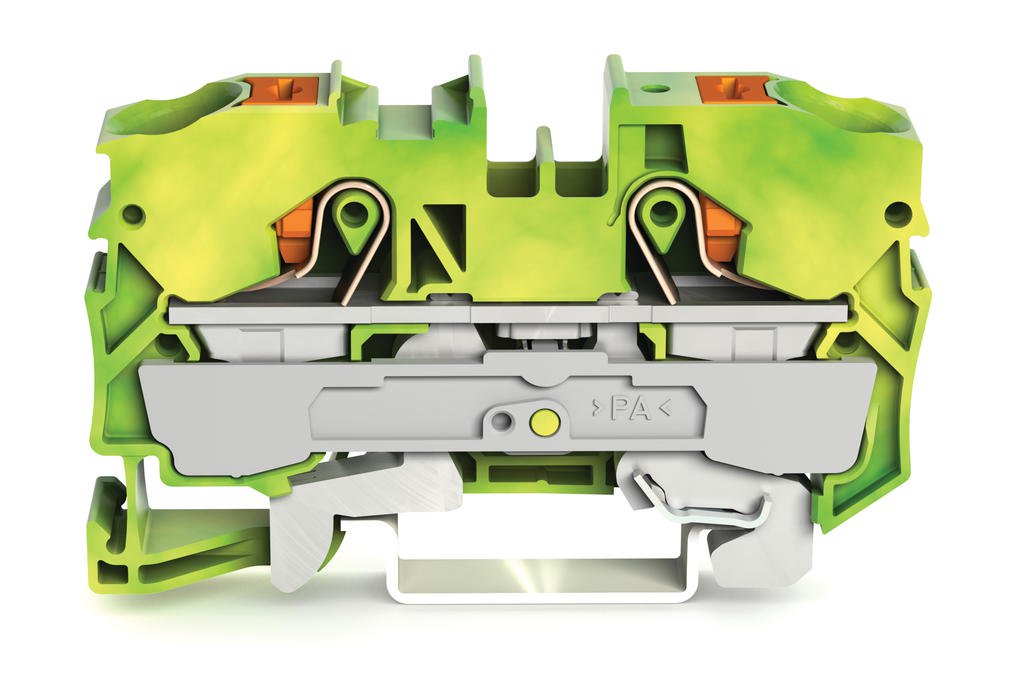

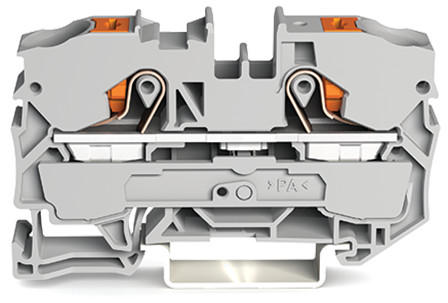

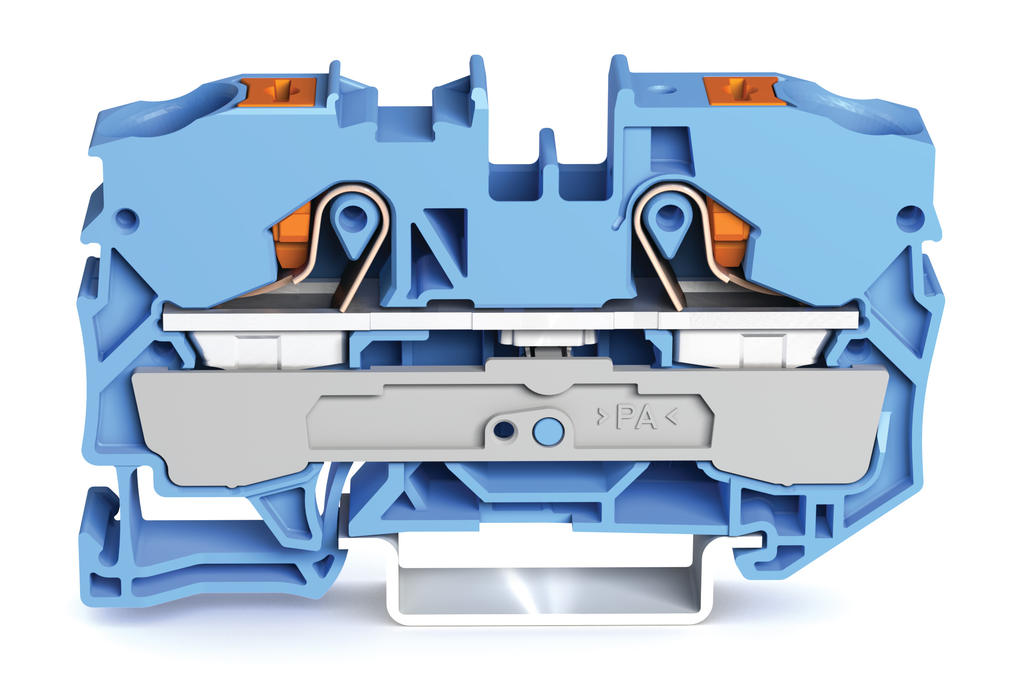

Parameters / Models	2210-1201	2210-1204	2210-1207	2210-1301	2210-1304	2210-1307
Actuation type	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Цвет	gray	blue	green-yellow	gray	blue	green-yellow
Connectable conductor materials	Copper	Copper	Copper	Copper	Copper	Copper
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Country of origin	DE	DE	DE	DE	DE	DE
Габариты: глубина	67.6 mm / 2.661 inch	67.6 mm / 2.661 inch	67.6 mm / 2.661 inch	89 mm / 3.504 inch	89 mm / 3.504 inch	89 mm / 3.504 inch
Design	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG
Fine-stranded conductor with ferrule, push-in termination, from	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG	2.5 mm² / 14 AWG
GTIN	4055143735698	4055143736077	4055143736084	4055143736114	4055143736121	4055143736138
Height from upper-edge of DIN-35 rail	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking
Nominal cross section	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²	10 mm²
Number of levels	1	1	1	1	1	1
Packaging type	BOX	BOX	BOX	BOX	BOX	BOX
Rated current, A	57	57		57	57
Rated current (2), A	76	76		76	76
Rated impulse voltage (III / 3), kV	8	8		8	8
Rated voltage (III / 3), В	800	800		800	800
Solid conductor	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG	0.5 … 16 mm² / 20 … 6 AWG
Solid conductor, push-in termination	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG	2.5 … 16 mm² / 14 … 6 AWG
Strip length	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch	17 … 19 mm / 0.67 … 0.75 Inch
Total number of connection points	2	2	2	3	3	3
Total number of potentials	1	1	1	1	1	1
Type of mounting	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Вес, г	18.975	18.975	30.89	25.537	25.537	37.525
Ширина	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch	10 mm / 0.394 inch

Модельный ряд

Серия: 2210 (6)

2210-1201 2210-1204 2210-1207 2210-1301 2210-1304 2210-1307

Классификация производителя

Rail / Chassis Terminal blocks
