Datasheet Wago 249 — Даташит

Производитель	Wago
Серия	249

Цены

Купить 249-101 на РадиоЛоцман.Цены — от 42 до 11 582 ₽ 36 предложений от 17 поставщиков Аксессуар, Клеммной колодкой на DIN-рейку, Screwless End Stop, 249 Series
Элитан Россия	249-101 Wago	130 ₽
Зенер Россия и страны ТС	249-101	от 168 ₽
LifeElectronics Россия	803-87-034-10-249101	по запросу
Океан Электроники Россия	803-87-032-10-249101	по запросу

Подробное описание

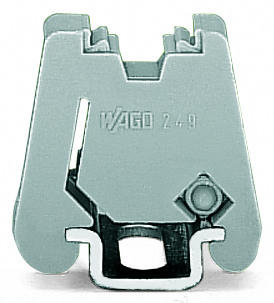

Wago 249

Параметры

Parameters / Models	249-101	249-106	249-107	249-109	249-110	249-111	249-112	249-113	249-114	249-115	249-116	249-117	249-123	249-125	249-126	249-127	249-135	249-136	249-137	249-138	249-139	249-140	249-141	249-142	249-143	249-144	249-145	249-146	249-147	249-148	249-197
Цвет	gray	gray	gray	gray	gray	orange	gray	orange	gray	orange	gray	gray					gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray
Connection technology		CAGE CLAMP®																					CAGE CLAMP®	CAGE CLAMP®		CAGE CLAMP®	CAGE CLAMP®		CAGE CLAMP®
Country of origin	CN	DE	DE	DE	CH	CH	CH	CH	CH	CH	CN	CN	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина	23.2 mm / 0.913 inch				19.5 mm / 0.768 inch	19.5 mm / 0.768 inch	19.5 mm / 0.768 inch	19.5 mm / 0.768 inch	19.5 mm / 0.768 inch	19.5 mm / 0.768 inch	45 mm / 1.772 inch	45 mm / 1.772 inch																			60 mm / 2.362 inch
Fine-stranded conductor		0.08 … 1.5 mm² / 28 … 16 AWG																					0.08 … 1.5 mm² / 28 … 16 AWG	0.08 … 1.5 mm² / 28 … 16 AWG		0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG		0.08 … 2.5 mm² / 28 … 12 AWG
Fire load, MJ	0.049	0.032	0.021	0.03							0.099	0.145	0.031	0.018	0.023	0.039							0.057	0.057	0.026	0.081	0.081	0.034	0.036	0.024
Flammability class per UL94					V0	V0	V0	V0	V0	V0
GTIN	4050821427766	4045454265083	4017332295963	4017332270816	4045454306816	4045454306823	4045454306830	4045454306847	4045454306854	4045454306861	4017332270823	4055143314169	4044918786676	4044918786249	4044918786416	4044918787017	4045454620653	4045454335953	4050821868927	4045454359973	4045454335960	4050821868934	4045454193690	4045454193713	4017332295970	4045454193720	4045454193737	4017332295987	4045454265120	4017332295994	4050821517535
Height					21.5 mm / 0.846 inch	21.5 mm / 0.846 inch	21.5 mm / 0.846 inch	21.5 mm / 0.846 inch	21.5 mm / 0.846 inch	21.5 mm / 0.846 inch
Height from upper-edge of DIN-35 rail	16 mm / 0.63 inch										28.2 mm / 1.11 inch	28.2 mm / 1.11 inch																			60 mm / 2.362 inch
Insulating material					Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)					(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range					-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Main product function	Mounting Accessories			Mounting Accessories							Mounting Accessories	Mounting Accessories																			Mounting Accessories
Marking level		Side marking																					Side marking			Side marking			Side marking
Material group					I	I	I	I	I	I
Number of Poles		1			1	1	1	1	1	1													1			1			1
Pin spacing					5 mm / 0.197 inch	5.08 mm / 0.2 inch	7.5 mm / 0.295 inch	7.62 mm / 0.3 inch	10 mm / 0.394 inch	10.16 mm / 0.4 inch
Product Group	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)		2 (Terminal Block Accessories)			2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)	2 (Terminal Block Accessories)
Rated current, A					6	6	6	6	6	6			9	9	9	9
Rated impulse voltage (III / 2), kV					4	4	4	4	4	4
Rated impulse voltage (III / 3), kV													8	8	8	8
Rated voltage (III / 2), В					320	320	320	320	320	320
Rated voltage (III / 3), В													800	800	800	800
Solid conductor		0.08 … 1.5 mm² / 28 … 16 AWG																					0.08 … 1.5 mm² / 28 … 16 AWG	0.08 … 1.5 mm² / 28 … 16 AWG		0.08 … 2.5 mm² / 28 … 14 AWG	0.08 … 2.5 mm² / 28 … 14 AWG		0.08 … 2.5 mm² / 28 … 14 AWG
Strip length		8 … 9 mm / 0.31 … 0.35 Inch																					8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch		8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch		8 … 9 mm / 0.31 … 0.35 Inch
Test current, A		10															0.5	0.5	0.5	0.5	0.5	0.5	6	6		6	6		10
Test voltage, В		630															48	48	48	48	48	48	630	630		630	630		630
Total number of connection points		1																					1	1		1	1		1
Total number of potentials		1																					1	1		1	1		1
Type of mounting	DIN-15 rail										DIN-35 rail	DIN-35 rail																			DIN-35 rail
Type of wiring		Front-entry wiring																					Front-entry wiring	Front-entry wiring		Front-entry wiring	Front-entry wiring		Front-entry wiring
Вес, г	1.58	2.174	0.69	0.99	1.298	1.305	1.497	1.465	1.661	1.65	3.46	5.12	3.19	2.013	2.5	3.94	1.13	1.166	1.113	1.413	1.5	1.765	3.2	3.5	0.86	4.3	4.7	1.13	2.479	0.8	23.194
Ширина	6 mm / 0.236 inch	5 mm / 0.197 inch	5 mm / 0.197 inch		5 mm / 0.197 inch	5.08 mm / 0.2 inch	7.5 mm / 0.295 inch	7.62 mm / 0.3 inch	10 mm / 0.394 inch	10.16 mm / 0.4 inch	6 mm / 0.236 inch	10 mm / 0.394 inch					5 mm / 0.197 inch	6 mm / 0.236 inch	7 mm / 0.276 inch	8 mm / 0.315 inch	10 mm / 0.394 inch	12 mm / 0.472 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	6 mm / 0.236 inch	14 mm / 0.51 inch
Wire length of wire jumpers, мм													180	60	110	250
