Datasheet Wago 233-516 — Даташит

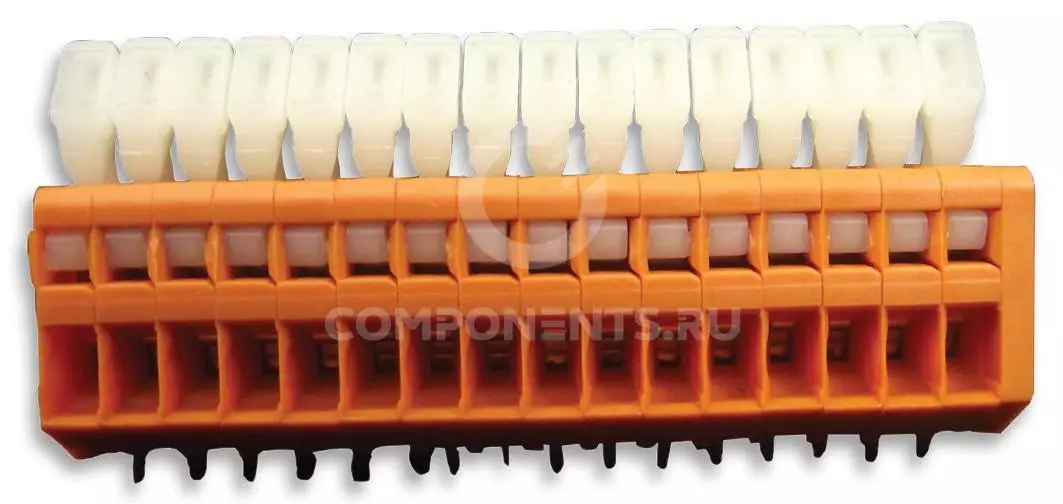

Клеммная колодка для печатной платы; Кнопка; 0,5 мм²; Шаг контактов 2,54 мм; 16-полюсный; CAGE CLAMP
Цены
 Купить 233-516 на РадиоЛоцман.Цены — от 587 до 46 979 ₽15 предложений от 7 поставщиков Клеммные Колодки типа Провод-плата | |||
| 233-516. Wago | от 998 ₽ | ||
| 233516. | 46 979 ₽ | ||
| 233-516 | по запросу | ||
| 233-516 Wago | по запросу | ||
Параметры
| Actuation type | Push-button |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | orange |
| Conductor entry angle to the PCB | 30 ° |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Country of origin | CH |
| Габариты: глубина | 13.9 mm / 0.547 inch |
| Drilled hole diameter (tolerance) | 1.1(+ 0.1) мм |
| Fine-stranded conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 mm² |
| Fire load | 0.116 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4045454050528 |
| Height | 19.5 mm / 0.768 inch |
| Height from the surface | 15.5 mm / 0.61 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 16 |
| Number of connection types | 1 |
| Number of levels | 1 |
| Number of solder pins per potential | 2 |
| PCB contact | THT |
| Pin spacing | 2.54 mm (0.1 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 6 A |
| Rated impulse voltage (II / 2) | 2.5 kV |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated impulse voltage (III / 3) | 2.5 kV |
| Rated voltage (II / 2) | 320 В |
| Rated voltage (III / 2) | 160 В |
| Rated voltage (III / 3) | 63 В |
| Solder pin arrangement | over the entire terminal strip, in line |
| Solder pin dimensions | 0.5 x 0.75 mm |
| Solder pin length | 4 мм |
| Solid conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 Inch |
| Total number of connection points | 16 |
| Total number of potentials | 16 |
| Вес | 6.474 г |
| Ширина | 42.94 mm / 1.691 inch |
Модельный ряд
Серия: 233 (56)
- 233-102 233-103 233-104 233-105 233-106 233-107 233-108 233-109 233-110 233-112 233-116 233-124 233-136 233-148 233-202 233-203 233-204 233-205 233-206 233-207 233-208 233-209 233-210 233-212 233-216 233-224 233-236 233-248 233-402 233-403 233-404 233-405 233-406 233-407 233-408 233-409 233-410 233-412 233-416 233-424 233-436 233-448 233-502 233-503 233-504 233-505 233-506 233-507 233-508 233-509 233-510 233-512 233-516 233-524 233-536 233-548
Классификация производителя
- PCB Interconnect
Варианты написания:
233516, 233 516
