Datasheet Wago 237 — Даташит

Производитель	Wago
Серия	237

Цены

Купить 237-102 на РадиоЛоцман.Цены — от 175 до 6 275 ₽ 15 предложений от 6 поставщиков PCB TERMINAL BLOCK; 2.5 MM; PIN
Зенер Россия и страны ТС	237102	от 175 ₽	Купить
T-electron Россия и страны СНГ	237102	6 275 ₽	Купить
Кремний Россия и страны СНГ	237-102 Wago	по запросу	Купить
Augswan Весь мир	237-102 Wago	по запросу	Купить

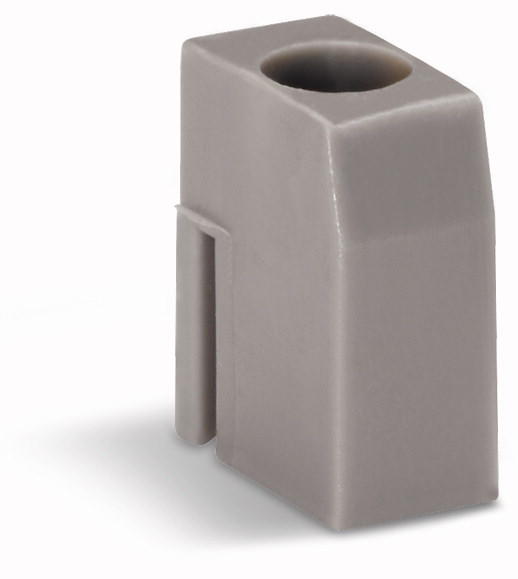

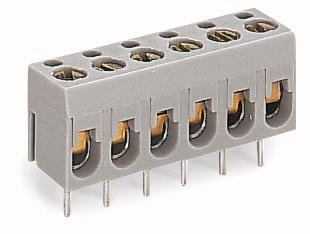

Параметры

Parameters / Models	237-102	237-103	237-104	237-112	237-113	237-132	237-133	237-136	237-142	237-146
Actuation type	Operating tool	Operating tool		Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Clamping spring material	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)		Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray
Connection technology	Screw clamp connection	Screw clamp connection		Screw clamp connection	Screw clamp connection	Screw clamp connection	Screw clamp connection	Screw clamp connection	Screw clamp connection	Screw clamp connection
Contact material	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)		Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)
Contact plating	tin-plated	tin-plated		tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Country of origin	IN	IN	DE	IN	IN	IN		IN	DE	IN
Габариты: глубина	9 mm / 0.354 inch	9 mm / 0.354 inch		9 mm / 0.354 inch	9 mm / 0.354 inch	9 mm / 0.354 inch	9 mm / 0.354 inch	9 mm / 0.354 inch	9 mm / 0.354 inch	9 mm / 0.354 inch
Fine-stranded conductor	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG		0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG
Fire load, MJ			0.012						0.016
Flammability class per UL94	V0	V0		V0	V0	V0	V0	V0	V0	V0
GTIN	4045454539771	4045454539788	4017332269735	4044918683203	4045454539849	4045454539900	4017332269766	4045454539955	4044918683258	4045454539979
Height from the surface	11 mm / 0.433 inch	11 mm / 0.433 inch		11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)		Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2		(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C		-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group	I	I		I	I	I	I	I	I	I
Number of Poles	2	3		1	2	2	3	6	1	3
Number of connection types	1	1		1	1	1	1	1	1	1
Number of levels	1	1		1	1	1	1	1	1	1
Number of solder pins per potential	1	1		1	1	1	1	1	1	1
PCB contact	THT	THT		THT	THT	THT	THT	THT	THT	THT
Pin spacing	5/5.08 mm / 0.197/0.2 inch	5/5.08 mm / 0.197/0.2 inch		10/10.16 mm / 0.394/0.4 inch	10/10.16 mm / 0.394/0.4 inch	5/5.08 mm / 0.197/0.2 inch	5/5.08 mm / 0.197/0.2 inch	5/5.08 mm / 0.197/0.2 inch	10/10.16 mm / 0.394/0.4 inch	10/10.16 mm / 0.394/0.4 inch
Product Group		4 (Printed Circuit)	4 (Printed Circuit)					4 (Printed Circuit)
Rated current, A	16	16		16	16	16	16	16	16	16
Rated impulse voltage (III / 2), kV	2.5	2.5		6	6	2.5	2.5	2.5	6	2.5
Rated voltage (III / 2), В	250	250		800	800	250	250	250	800	800
Solder pin arrangement	over the entire terminal strip, in line	over the entire terminal strip, in line		over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line
Solid conductor	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG		0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG
Strip length	5 … 7 mm / 0.2 … 0.28 Inch	5 … 7 mm / 0.2 … 0.28 Inch		5 … 7 mm / 0.2 … 0.28 Inch	5 … 7 mm / 0.2 … 0.28 Inch	5 … 7 mm / 0.2 … 0.28 Inch	5 … 7 mm / 0.2 … 0.28 Inch	5 … 7 mm / 0.2 … 0.28 Inch	5 … 7 mm / 0.2 … 0.28 Inch	5 … 7 mm / 0.2 … 0.28 Inch
Total number of connection points	2	3		1	2	2	3	6	1	3
Total number of potentials	2	3		1	2	2	3	6	1	3
Вес, г	1.863	2.898	0.407	1.26	2.15	2.04	3.08	5.716	1.283	3.823
Ширина	5 mm / 0.197 inch	5 mm / 0.197 inch		10 mm / 0.394 inch	10 mm / 0.394 inch	5.08 mm / 0.2 inch	5.08 mm / 0.2 inch	5 mm / 0.197 inch	10 mm / 0.394 inch	10 mm / 0.394 inch

Модельный ряд

Классификация производителя

• PCB Interconnect
