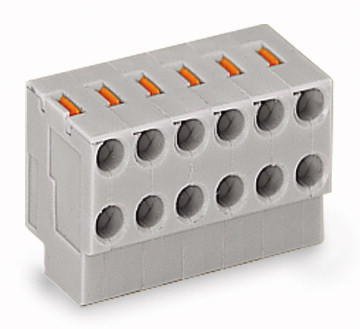

Datasheet Wago 252 — Даташит

Производитель	Wago
Серия	252

Цены

Купить 252-102 на РадиоЛоцман.Цены — от 110 до 52 036 ₽ 47 предложений от 18 поставщиков Разъем РЧ / Коаксиальный, MCX Коаксиальный, Прямоугольный Штекер, Пайка, 75 Ом, RG179/U, RG187A/U
T-electron Россия и страны СНГ	252102	52 036 ₽
Океан Электроники Россия	252102-75	по запросу
ЭлектроПласт Россия	2.52102e+006	по запросу
TradeElectronics Россия	WD25210-2	по запросу

Параметры

Parameters / Models	252-102	252-103	252-104	252-105	252-106	252-107	252-108	252-109	252-110	252-152	252-153	252-154	252-155	252-156	252-157	252-158	252-159	252-160	252-902	252-903	252-904	252-905	252-906	252-907	252-908	252-909	252-910	252-954
Actuation type	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Clamping spring material	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy
Цвет	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray										gray
Conductor diameter	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm	0.4 … 0.8 mm
Connection technology	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®
Connector connection type	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Contact type (pluggable connector)	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug
Country of origin	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	DE	DE	CN	DE	DE	DE	DE	DE	DE	CH
Габариты: глубина	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch	10.5 mm / 0.413 inch
Drilled hole diameter (tolerance), мм																			1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)	1.2(+ 0.05)
Fire load, MJ	0.024	0.036	0.048	0.06	0.072	0.084	0.096	0.108	0.12	0.026	0.039	0.052	0.065	0.078	0.091	0.104	0.117	0.13
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4045454039707	4045454039714	4045454039721	4045454039738	4045454039745	4045454039752	4045454039769	4045454039776	4045454039783	4045454039875	4045454039899	4045454039936	4045454040116	4045454040130	4045454040154	4045454040161	4045454040192	4045454040215	4044918984096	4044918984140	4044918504249	4044918984225	4044918984287	4044918984416	4044918984478	4044918685245	4044918506830	4045454698188
Height	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	11 mm / 0.433 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Mating direction to the PCB, °	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90
Number of Poles	2	3	4	5	6	7	8	9	10	2	3	4	5	6	7	8	9	10	2	3	4	5	6	7	8	9	10	4
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
PCB contact	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT
Pin spacing	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)
Product Group	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)		4 (Printed Circuit)		4 (Printed Circuit)				4 (Printed Circuit)	4 (Printed Circuit)
Rated current, A	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Rated impulse voltage (II / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 3), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated voltage (II / 2), В	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630
Rated voltage (III / 2), В	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Rated voltage (III / 3), В	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Solder pin diameter, мм																			1	1	1	1	1	1	1	1	1	1
Solder pin length, мм																			3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
Solid conductor	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG	0.4 … 0.8 mm² / 26 … 20 AWG
Strip length	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch	6 … 7 mm / 0.24 … 0.28 Inch
Total number of connection points	4	6	8	10	12	14	16	18	20	4	6	8	10	12	14	16	18	20
Total number of potentials	2	3	4	5	6	7	8	9	10	2	3	4	5	6	7	8	9	10
Вес, г	0.912	1.365	1.818	2.271	2.724	3.177	3.63	4.083	4.536	0.976	1.474	1.972	2.47	2.968	3.466	3.964	4.462	4.96	0.205	0.27	0.41	0.52	0.615	0.717	0.82	0.923	1.025	0.523
Ширина	7 mm / 0.276 inch	10.5 mm / 0.413 inch	14 mm / 0.551 inch	17.5 mm / 0.689 inch	21 mm / 0.827 inch	24.5 mm / 0.965 inch	28 mm / 1.102 inch	31.5 mm / 1.24 inch	35 mm / 1.378 inch	7 mm / 0.276 inch	10.5 mm / 0.413 inch	14 mm / 0.551 inch	17.5 mm / 0.689 inch	21 mm / 0.827 inch	24.5 mm / 0.965 inch	28 mm / 1.102 inch	31.5 mm / 1.24 inch	35 mm / 1.378 inch

Модельный ряд

Серия: 252 (28)

252-102 252-103 252-104 252-105 252-106 252-107 252-108 252-109 252-110 252-152 252-153 252-154 252-155 252-156 252-157 252-158 252-159 252-160 252-902 252-903 252-904 252-905 252-906 252-907 252-908 252-909 252-910 252-954

Классификация производителя

PCB Interconnect | Pluggable Connection Systems
