Datasheet Wago 713-1404/117-000/997-406 — Даташит

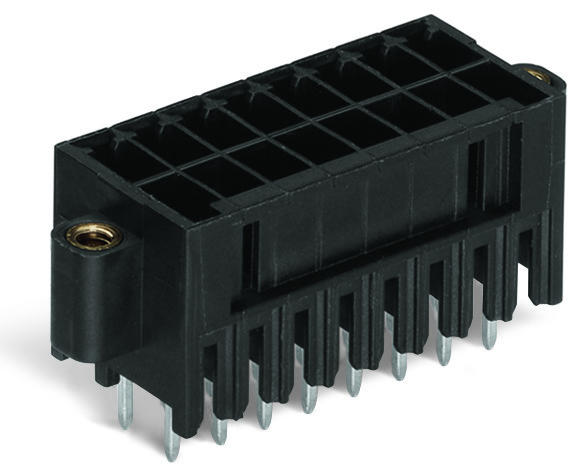

Вилка под пайку THR, 2-рядн.; 0.8 x 0.8 mm solder pin; прямые; 100% защита от неправильного подсоединения; упаковка в ленте на бобине; Шаг контактов 3,5 мм; 2 x 4-полюсов
Цены
Купить 713-1404/117-000/997-406 на РадиоЛоцман.Цены — от 246 до 559 ₽ 8 (4x2)-конт. вилка, шаг 3,5 мм, чёрная; контакт 0.8x0.8 мм | |||
| 713-1404/117-000/997-406 Wago | 246 ₽ | ||
| 713-1404/117-000/997-406 Wago Оф. дистрибьютор | 559 ₽ | ||
Подробное описание
Параметры
| Цвет | black |
| Connector connection type | for PCBs |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Country of origin | DE |
| Габариты: глубина | 13.3 mm / 0.524 inch |
| Fire load | 0.062 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4050821308829 |
| Height | 15.9 mm / 0.626 inch |
| Height from the surface | 13.5 mm / 0.531 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Locking of plug-in connection | Threaded flange |
| Material group | I |
| Mating direction to the PCB | 90 ° |
| Mismating protection | Yes |
| Number of Poles | 8 |
| Number of levels | 2 |
| Number of solder pins per potential | 1 |
| PCB contact | THR |
| Packaging type | bag |
| Pin spacing | 3.5 mm (0.138 inch) |
| Plated through-hole diameter (THR) | 1.2 (+ 0.1) мм |
| Rated current | 10 A |
| Rated impulse voltage (II / 2) | 2.5 kV |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated impulse voltage (III / 3) | 2.5 kV |
| Rated voltage (II / 2) | 250 В |
| Rated voltage (III / 2) | 160 В |
| Rated voltage (III / 3) | 80 В |

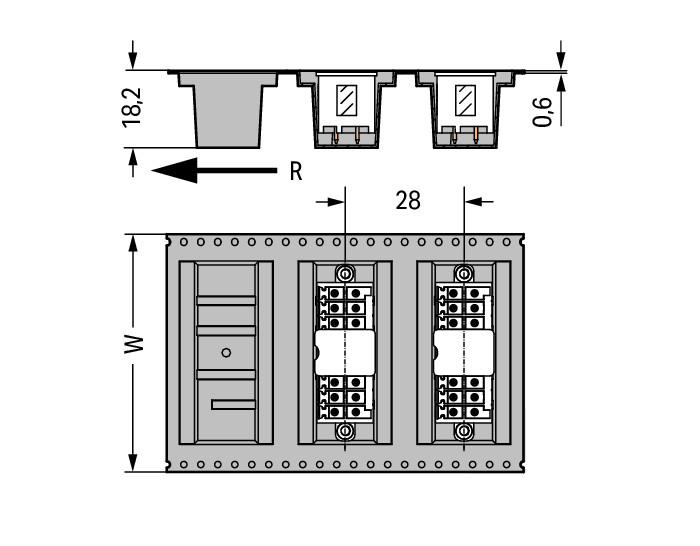

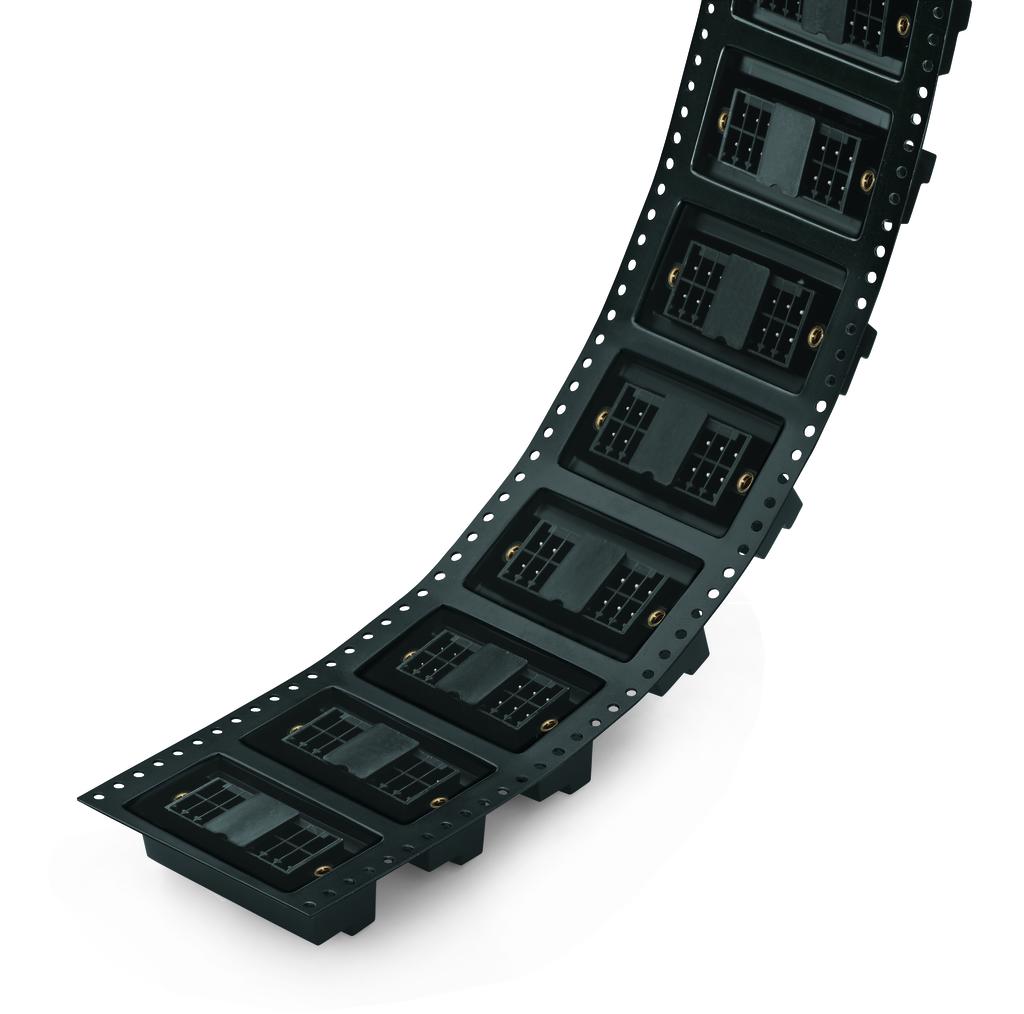

| Reel diameter of tape-and-reel packaging | 330 мм |
| Solder pin arrangement | over the entire male connector, in line |
| Solder pin dimensions | 0.8 x 0.8 mm |
| Solder pin length | 2.4 мм |
| Tape width | 44 мм |
| Total number of potentials | 8 |
| Вес | 2.758 г |
| Ширина | 24.1 mm / 0.949 inch |
