Datasheet Wago 714 — Даташит

Производитель	Wago
Серия	714

Цены

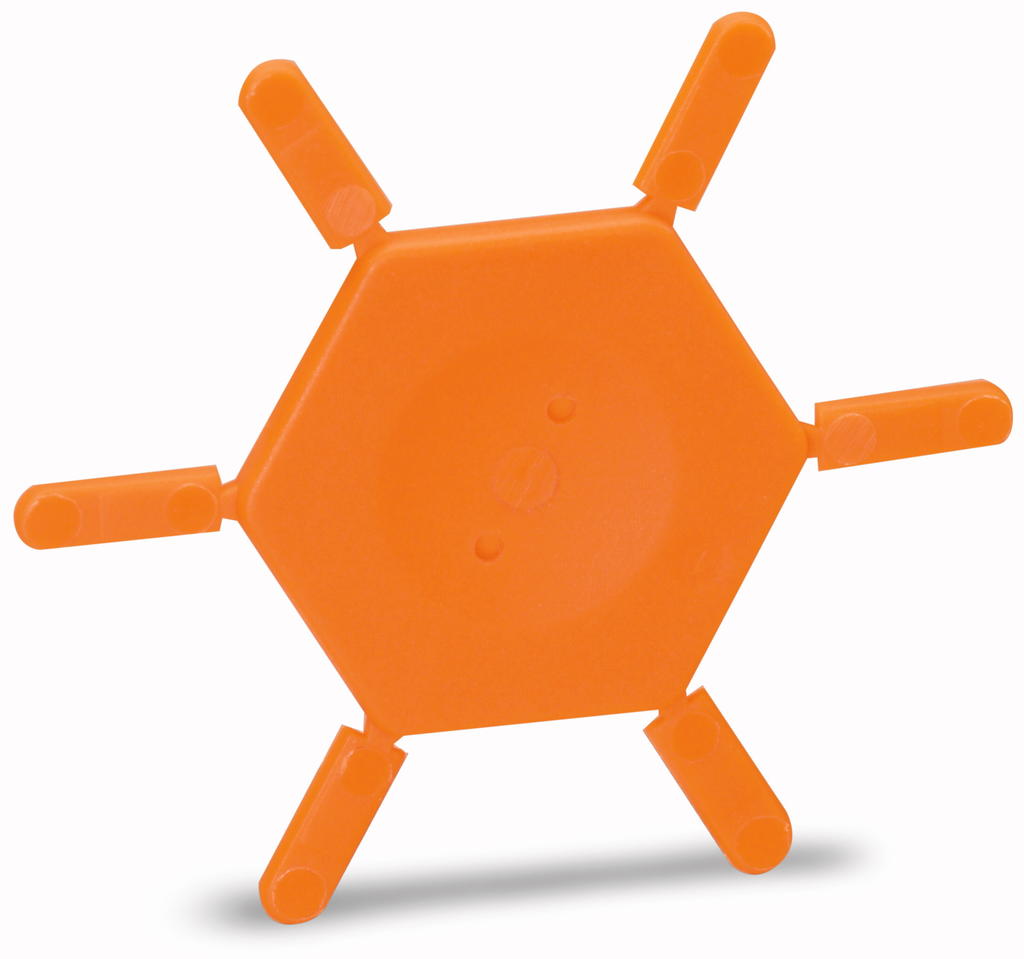

Купить 714-101 на РадиоЛоцман.Цены — от 27 до 6 378 ₽ 32 предложений от 17 поставщиков Несущая вывода кодировки, для использования с клеммными колодками WAGO серии 713
Элитан Россия	714-101 Wago	124 ₽
Augswan Весь мир	350-80-159-01-714101	по запросу
МосЧип Россия	350-80-159-01-714101	по запросу
Maybo Весь мир	13-714-1-01	по запросу

Подробное описание

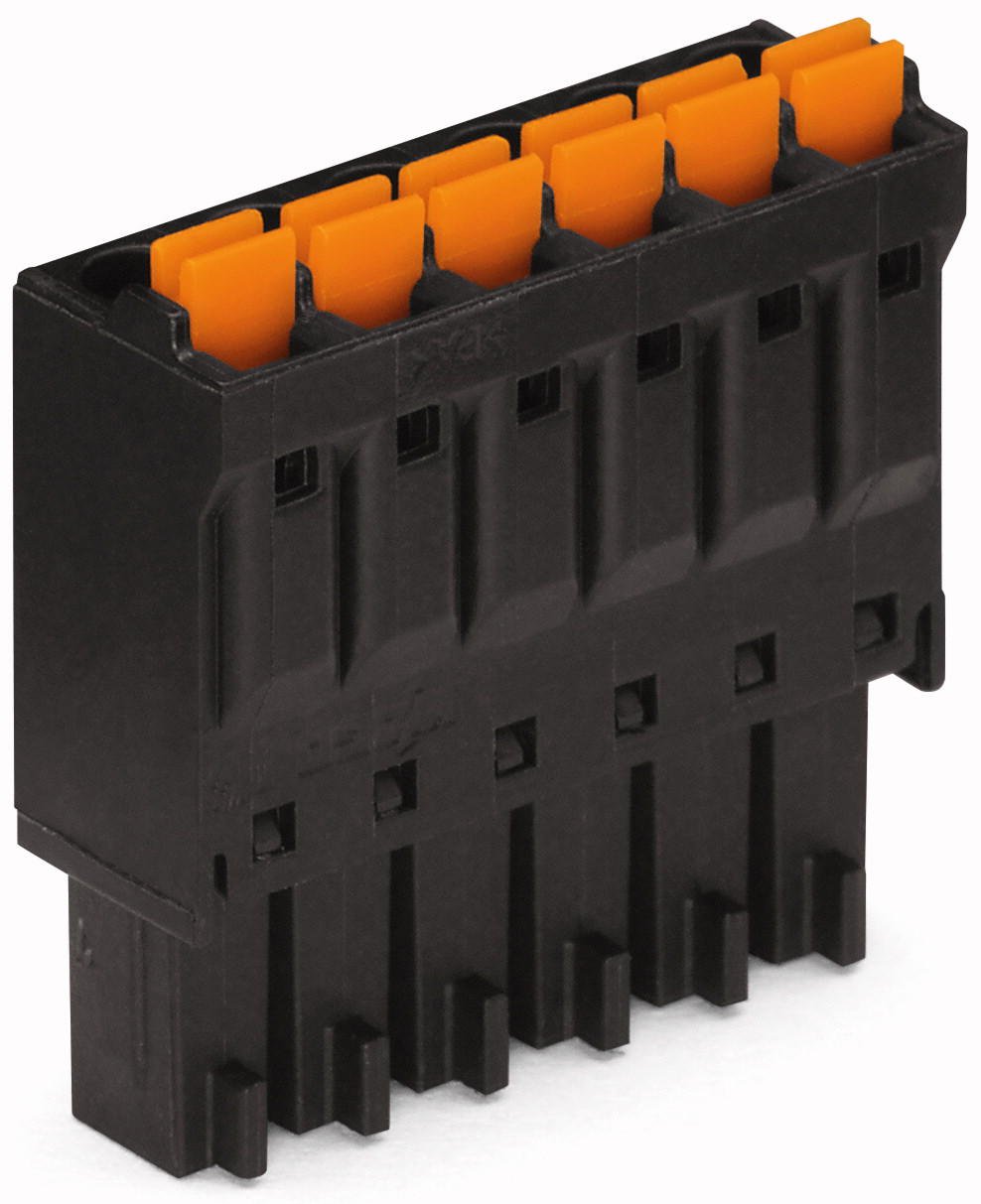

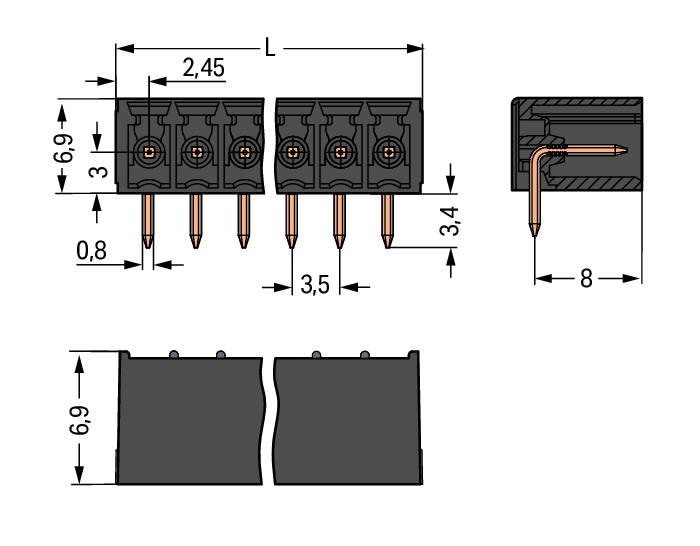

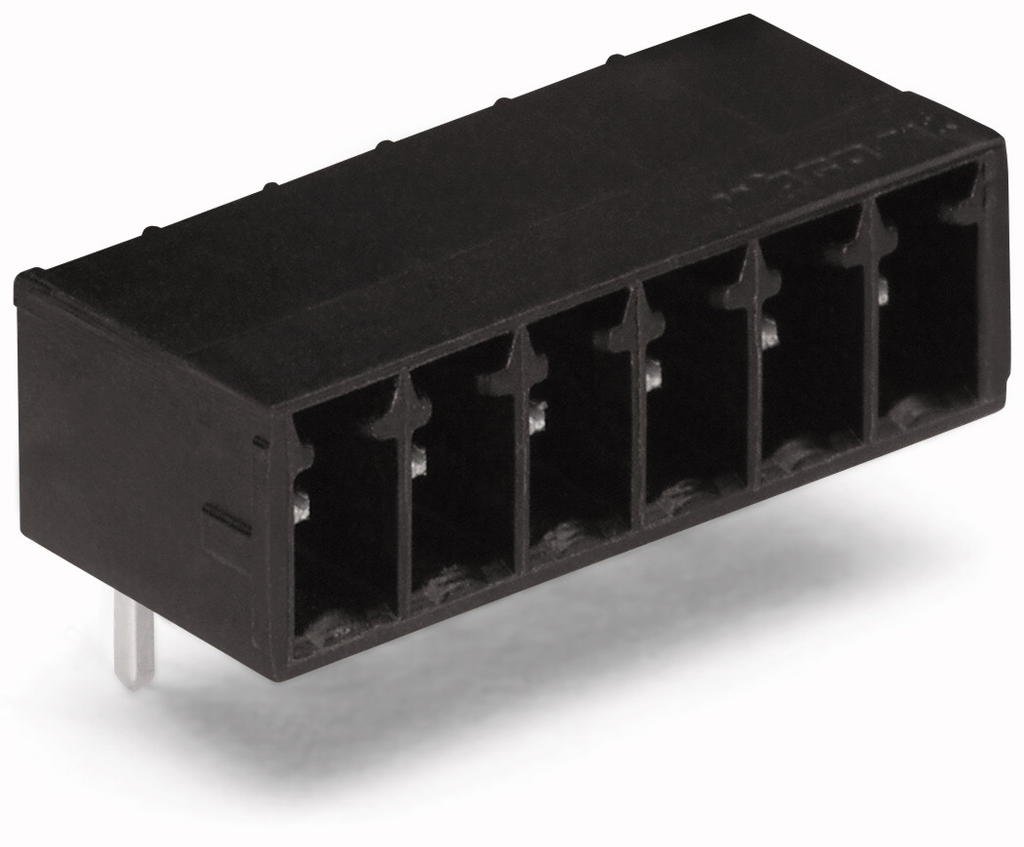

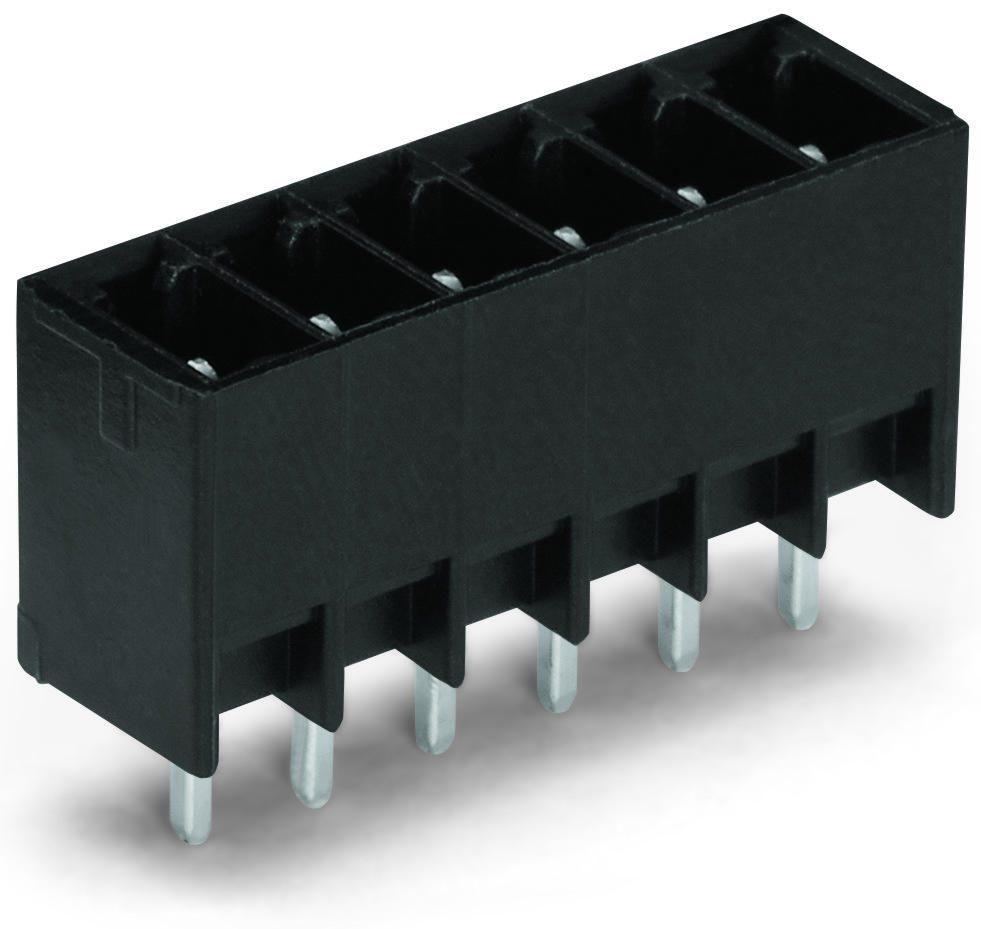

Wago 714

Параметры

Parameters / Models	714-101	714-102	714-102/000-047	714-103	714-103/000-047	714-104	714-104/000-047	714-105	714-105/000-047	714-106	714-106/000-047	714-108	714-108/000-047	714-110	714-110/000-047	714-112	714-112/000-047	714-114	714-114/000-047	714-115	714-116	714-132	714-133	714-134	714-135	714-136	714-138	714-140	714-142	714-144	714-145	714-146	714-162	714-163	714-164	714-165	714-166	714-168	714-170	714-172	714-174	714-175	714-176
Actuation type		Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Clamping spring material		Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	orange	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black
Connection technology		Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Connector connection type		for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs
Contact material		Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)
Contact plating		tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Contact type (pluggable connector)		Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина		23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	23 mm / 0.906 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch
Drilled hole diameter (tolerance), мм																						1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)	1.2(+ 0.1)
Fine-stranded conductor		0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG
Fine-stranded conductor with ferrule with plastic collar		0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²	0.25 … 0.75 mm²
Fine-stranded conductor with ferrule without plastic collar		0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²
Fire load, MJ	0.023	0.018		0.026		0.033		0.04		0.048		0.064		0.079		0.094		0.11				0.012	0.014	0.018	0.023	0.027	0.036	0.045	0.054	0.063	0.068	0.072	0.012	0.013	0.017	0.022	0.026	0.035	0.044	0.053	0.062	0.066	0.07
Flammability class per UL94		V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4045454857653	4045454857660	4055143237079	4045454858711	4055143236485	4045454858728	4055143237062	4045454858735	4055143240741	4045454858742	4055143240734	4045454858759	4055143237048	4045454858766	4055143237765	4045454858773	4055143237321	4045454858780	4055143237147	4055143233910	4055143233903	4045454857684	4045454858834	4045454858841	4045454858858	4045454858865	4045454858872	4045454858889	4045454858896	4045454858919	4045454858940	4045454858926	4045454859138	4045454859145	4045454859169	4045454859183	4045454859190	4045454859701	4045454859718	4045454859688	4045454859695	4045454859725	4045454859732
Height		7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	7.8 mm / 0.307 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	13.1 mm / 0.516 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch	10.3 mm / 0.406 inch
Height from the surface																						9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	9.7 mm / 0.382 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch	6.9 mm / 0.272 inch
Insulating material		Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)
Legend (ratings)		(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range		-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C	-60 … +100 °C
Material group		I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Mating direction to the PCB, °																						90	90	90	90	90	90	90	90	90	90	90
Mismating protection		No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Number of Poles		2	2	3	3	4	4	5	5	6	6	8	8	10	10	12	12	14	14	15	16	2	3	4	5	6	8	10	12	14	15	16	2	3	4	5	6	8	10	12	14	15	16
Number of connection types		1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels		1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of solder pins per potential																						1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
PCB contact																						THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT
Packaging type									BOX		BOX				BOX		BOX		BOX
Pin spacing		3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)	3.5 mm (0.138 inch)
Product Group	3 (Multi Conn. System)	3 (Multi Conn. System)		3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)		3 (Multi Conn. System)		3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)		3 (Multi Conn. System)		3 (Multi Conn. System)				3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)	3 (Multi Conn. System)
Rated current, A		8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Rated impulse voltage (II / 2), kV		2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Rated impulse voltage (III / 2), kV		2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Rated impulse voltage (III / 3), kV		2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Rated voltage (II / 2), В		320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Rated voltage (III / 2), В		160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160
Rated voltage (III / 3), В		160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160
Solder pin arrangement																						over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line	over the entire male connector, in line
Solder pin dimensions																						0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm	0.8 x 0.8 mm
Solder pin length, мм																						3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Solid conductor		0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG
Strip length		9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch
Total number of connection points		2	2	3	3	4	4	5	5	6	6	8	8	10	10	12	12	14	14	15	16
Total number of potentials		2	2	3	3	4	4	5	5	6	6	8	8	10	10	12	12	14	14	15	16	2	3	4	5	6	8	10	12	14	15	16	2	3	4	5	6	8	10	12	14	15	16
Вес, г	0.73	1.234	1.21	1.806	1.806	2.378	2.5	2.94	3.15	3.522	3.25	4.666	4.666	5.81	13.74	6.85	16.48	8.108	19.21	8.68	9.1	0.45	0.71	0.9	1.14	1.3	1.75	2.01	2.55	3.05	11.093	3.3	0.5	0.66	0.872	1.096	1.318	1.71	2.19	2.636	3.072	3.286	3.508
Ширина		7.7 mm / 0.303 inch	7.7 mm / 0.303 inch	11.2 mm / 0.441 inch	11.2 mm / 0.441 inch	14.7 mm / 0.579 inch	14.7 mm / 0.579 inch	18.2 mm / 0.717 inch	18.2 mm / 0.717 inch	21.7 mm / 0.854 inch	21.7 mm / 0.854 inch	28.7 mm / 1.13 inch	28.7 mm / 1.13 inch	35.7 mm / 1.406 inch	35.7 mm / 1.406 inch	42.7 mm / 1.681 inch	42.7 mm / 1.681 inch	49.7 mm / 1.957 inch	49.7 mm / 1.957 inch	53.2 mm / 2.094 inch	56.7 mm / 2.232 inch	8.4 mm / 0.331 inch	11.9 mm / 0.469 inch	15.4 mm / 0.606 inch	18.9 mm / 0.744 inch	22.4 mm / 0.882 inch	29.4 mm / 1.157 inch	36.4 mm / 1.433 inch	43.4 mm / 1.709 inch	50.4 mm / 1.984 inch	53.9 mm / 2.122 inch	57.4 mm / 2.26 inch	8.4 mm / 0.331 inch	11.9 mm / 0.469 inch	15.4 mm / 0.606 inch	18.9 mm / 0.744 inch	22.4 mm / 0.882 inch	29.4 mm / 1.157 inch	36.4 mm / 1.433 inch	43.4 mm / 1.709 inch	50.4 mm / 1.984 inch	53.9 mm / 2.122 inch	57.4 mm / 2.26 inch

Модельный ряд

Серия: 714 (43)

714-101 714-102 714-102/000-047 714-103 714-103/000-047 714-104 714-104/000-047 714-105 714-105/000-047 714-106 714-106/000-047 714-108 714-108/000-047 714-110 714-110/000-047 714-112 714-112/000-047 714-114 714-114/000-047 714-115 714-116 714-132 714-133 714-134 714-135 714-136 714-138 714-140 714-142 714-144 714-145 714-146 714-162 714-163 714-164 714-165 714-166 714-168 714-170 714-172 714-174 714-175 714-176

Классификация производителя

PCB Interconnect | Pluggable Connection Systems
