Datasheet Wago 714-114 — Даташит
1-проводниковая розетка; Нажимная кнопка; 1,5; Шаг контактов 3,5 мм; 14-пол.
Цены
1-CONDUCTOR FEMALE PLUG; PUSH-BU | |||
| 714-114 Wago | по запросу | ||
Подробное описание
Параметры
| Actuation type | Push-button |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | black |
| Connection technology | Push-in CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact material | Copper alloy |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Female connector/socket |
| Country of origin | DE |

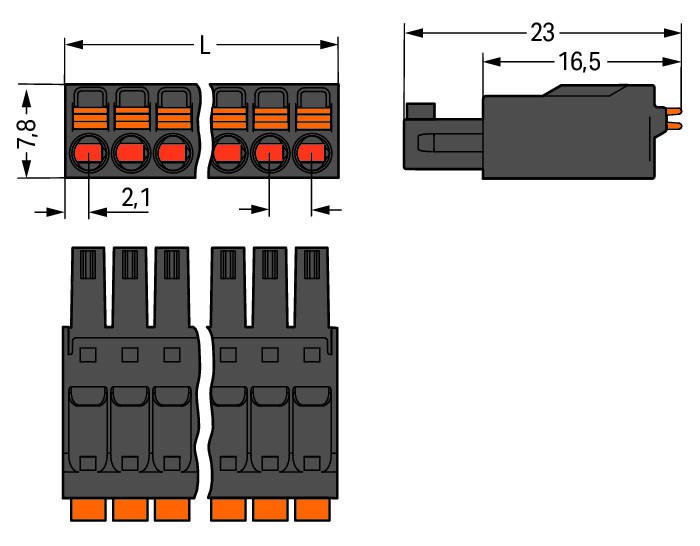

| Габариты: глубина | 23 mm / 0.906 inch |
| Fine-stranded conductor | 0.2 … 1.5 mm² / 24 … 16 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 0.75 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 1.5 mm² |
| Fire load | 0.11 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4045454858780 |
| Height | 7.8 mm / 0.307 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Material group | I |
| Mismating protection | No |
| Number of Poles | 14 |
| Number of connection types | 1 |
| Number of levels | 1 |
| Pin spacing | 3.5 mm (0.138 inch) |
| Product Group | 3 (Multi Conn. System) |
| Rated current | 8 A |
| Rated impulse voltage (II / 2) | 2.5 kV |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated impulse voltage (III / 3) | 2.5 kV |
| Rated voltage (II / 2) | 320 В |
| Rated voltage (III / 2) | 160 В |
| Rated voltage (III / 3) | 160 В |
| Solid conductor | 0.2 … 1.5 mm² / 24 … 16 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 Inch |
| Total number of connection points | 14 |
| Total number of potentials | 14 |
| Вес | 8.108 г |
| Ширина | 49.7 mm / 1.957 inch |
Модельный ряд
Серия: 714 (43)
- 714-101 714-102 714-102/000-047 714-103 714-103/000-047 714-104 714-104/000-047 714-105 714-105/000-047 714-106 714-106/000-047 714-108 714-108/000-047 714-110 714-110/000-047 714-112 714-112/000-047 714-114 714-114/000-047 714-115 714-116 714-132 714-133 714-134 714-135 714-136 714-138 714-140 714-142 714-144 714-145 714-146 714-162 714-163 714-164 714-165 714-166 714-168 714-170 714-172 714-174 714-175 714-176
Классификация производителя
- PCB Interconnect | Pluggable Connection Systems
