Datasheet Wago 736-552 — Даташит
Двухуровневая клеммная колодка для печатной платы; 2,5 мм²; Шаг контактов 7,5 мм; 2 x 2-полюсный; CAGE CLAMP

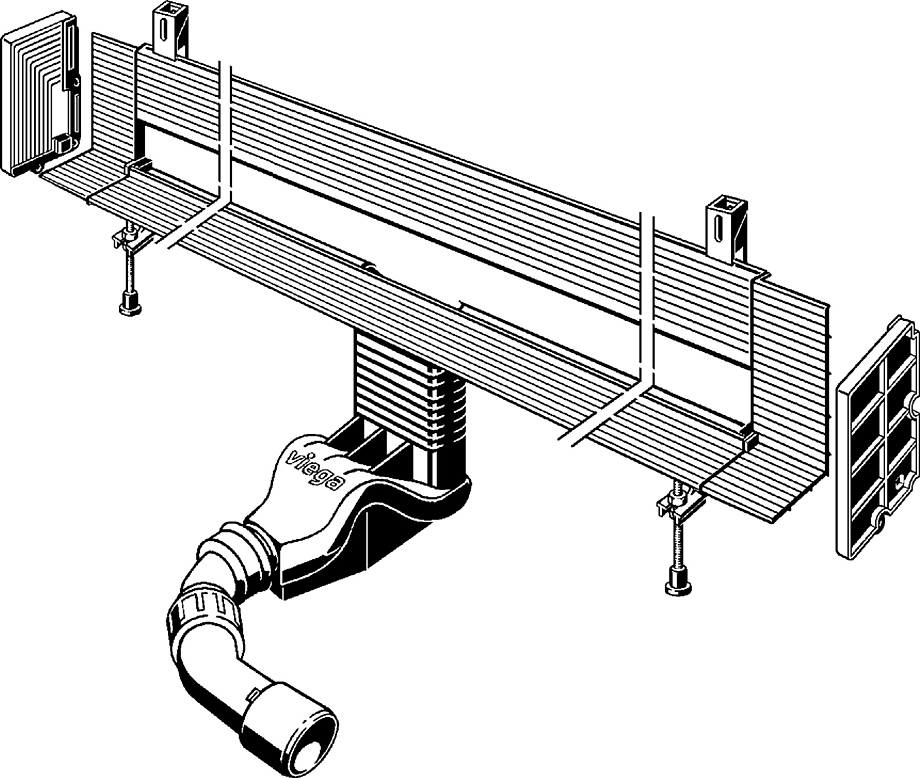

 Купить 736-552 на РадиоЛоцман.Цены — от 439 до 52 852 ₽5 предложений от 5 поставщиков Душевой лоток Viega Advantix Vario 736552* предназначен для использования в ванных и душевых комнатах в квартирах, домах, гостиницах, фитнес-центрах, больницах, бассейнах,... | |||
| 73655-2-3232 | 467 ₽ | ||
| Advantix Vario 736552 | 52 852 ₽ | ||
| 73655-2-3232 | по запросу | ||
| 736-552 Wago | по запросу | ||
Параметры
| Actuation type | Operating tool |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | gray |
| Conductor entry angle to the PCB | 45 ° |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Country of origin | PL |
| Габариты: глубина | 21 mm / 0.827 inch |
| Drilled hole diameter (tolerance) | 1.3(+ 0.1) мм |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² |
| Fire load | 0.091 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4044918910903 |
| Height | 30.5 mm / 1.201 inch |
| Height from the surface | 26.5 mm / 1.043 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 2 |
| Number of connection types | 1 |
| Number of levels | 2 |
| Number of solder pins per potential | 1 |
| PCB contact | THT |
| Pin spacing | 7.5 mm (0.295 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 21 A |
| Rated current (2) | 21 A |
| Rated impulse voltage (II / 2) | 6 kV |
| Rated impulse voltage (II / 2) 2 | 4 kV |
| Rated impulse voltage (III / 2) | 6 kV |
| Rated impulse voltage (III / 2) 2 | 4 kV |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated impulse voltage (III / 3) 2 | 4 kV |
| Rated voltage (II / 2) | 1000 В |
| Rated voltage (II / 2) 2 | 630 В |
| Rated voltage (III / 2) | 630 В |
| Rated voltage (III / 2) 2 | 320 В |
| Rated voltage (III / 3) | 400 В |
| Rated voltage (III / 3) 2 | 320 В |
| Ratings according to 2 | IEC/EN 60664-1 |
| Ratings note | Between the modules |
| Ratings note 2 | Between the decks |
| Solder pin arrangement | within the terminal block, staggered |
| Solder pin dimensions | 0.7 x 0.7 mm |
| Solder pin length | 4 мм |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 Inch |
| Total number of connection points | 4 |
| Total number of potentials | 4 |
| Вес | 5.292 г |
| Ширина | 13.5 mm / 0.531 inch |
Модельный ряд
Серия: 736 (89)
- 736-102 736-103 736-104 736-106 736-107/000-016 736-108 736-112 736-116 736-124 736-202 736-203 736-204 736-206 736-208 736-212 736-216 736-224 736-302 736-303 736-304 736-306 736-308 736-312 736-316 736-324 736-402 736-403 736-404 736-406 736-408 736-412 736-415 736-416 736-424 736-502 736-503 736-504 736-506 736-508 736-510 736-512 736-516 736-552 736-553 736-554 736-556 736-558 736-562 736-566 736-602 736-603 736-604 736-606 736-608 736-612 736-616 736-652 736-653 736-654 736-656 736-658 736-660 736-662 736-665 736-666 736-702 736-703 736-704 736-706 736-708 736-712 736-752 736-753 736-754 736-756 736-758 736-762 736-802 736-803 736-804 736-806 736-808 736-812 736-852 736-853 736-854 736-856 736-858 736-862
