Datasheet Wago 741-901 — Даташит

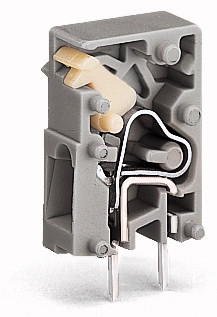

Стекируемый клеммный блок для печатных плат; Кнопка; 2,5 мм²; Шаг контактов 5 мм; 1-полюсный; CAGE CLAMP
STACKABLE PCB TERMINAL BLOCK; PU | |||
| 741-901 Wago | по запросу | ||
| 7.41901e+008 | по запросу | ||
Параметры
| Actuation type | Push-button |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | gray |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Country of origin | CH |
| Габариты: глубина | 12.8 mm / 0.504 inch |
| Drilled hole diameter (tolerance) | 1.1(+ 0.1) мм |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 1.5 mm² |
| Fire load | 0.022 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4044918677912 |
| Height | 22.5 mm / 0.886 inch |
| Height from the surface | 18.5 mm / 0.728 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 1 |
| Number of connection types | 1 |
| Number of levels | 1 |
| Number of solder pins per potential | 2 |
| PCB contact | THT |
| Pin spacing | 5 mm (0.197 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 16 A |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated impulse voltage (III / 2) | 4 kV |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (II / 2) | 500 В |
| Rated voltage (III / 2) | 250 В |
| Rated voltage (III / 3) | 250 В |
| Solder pin arrangement | within the terminal block, in line |
| Solder pin dimensions | 0.7 x 0.7 mm |
| Solder pin length | 4 мм |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 Inch |
| Total number of connection points | 1 |
| Total number of potentials | 1 |
| Вес | 1.274 г |
| Ширина | 5 mm / 0.197 inch |
