Datasheet Wago 741-912 — Даташит

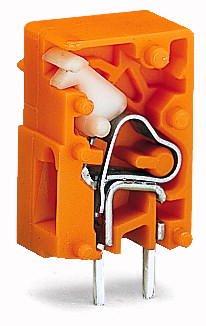

Стекируемый клеммный блок для печатных плат; Кнопка; 2,5 мм²; Шаг контактов 7,62 мм; 1-полюсный; CAGE CLAMP
Цены
STACKABLE PCB TERMINAL BLOCK; PU | |||
| 741-912 Wago | по запросу | ||
| 741-912 Wago | по запросу | ||
Параметры
| Actuation type | Push-button |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | orange |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Country of origin | CH |
| Габариты: глубина | 12.8 mm / 0.504 inch |
| Drilled hole diameter (tolerance) | 1.1(+ 0.1) мм |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 1.5 mm² |
| Fire load | 0.032 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4044918678032 |
| Height | 22.5 mm / 0.886 inch |
| Height from the surface | 18.5 mm / 0.728 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 1 |
| Number of connection types | 1 |
| Number of levels | 1 |
| Number of solder pins per potential | 2 |
| PCB contact | THT |
| Pin spacing | 7.62 mm (0.3 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 16 A |
| Rated impulse voltage (II / 2) | 6 kV |
| Rated impulse voltage (III / 2) | 6 kV |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (II / 2) | 800 В |
| Rated voltage (III / 2) | 400 В |
| Rated voltage (III / 3) | 400 В |
| Solder pin arrangement | within the terminal block, in line |
| Solder pin dimensions | 0.7 x 0.7 mm |
| Solder pin length | 4 мм |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 Inch |
| Total number of connection points | 1 |
| Total number of potentials | 1 |
| Вес | 1.622 г |
| Ширина | 7.62 mm / 0.3 inch |
Модельный ряд
Серия: 741 (100 из 120)
- 741-140 741-142 741-146 741-202 741-203 741-204 741-205 741-206 741-207 741-208 741-209 741-210 741-212 741-216 741-232 741-233 741-234 741-235 741-236 741-237 741-238 741-239 741-240 741-242 741-246 741-302 741-303 741-304 741-305 741-306 741-307 741-308 741-309 741-310 741-322 741-323 741-324 741-325 741-326 741-327 741-328 741-329 741-330 741-402 741-403 741-404 741-405 741-406 741-407 741-408 741-409 741-410 741-422 741-423 741-424 741-425 741-426 741-427 741-428 741-429 741-430 741-502 741-503 741-504 741-505 741-506 741-507 741-508 741-522 741-523 741-524 741-525 741-526 741-527 741-528 741-600 741-602 741-603 741-604 741-605 741-606 741-607 741-608 741-622 741-623 741-624 741-625 741-626 741-627 741-628 741-901 741-902 741-903 741-904 741-905 741-906 741-911 741-912 741-913 741-916
Классификация производителя
- PCB Interconnect
