Datasheet Wago 745-106 — Даташит
Клеммная колодка для печатной платы; 4 мм²; Шаг контактов 5 мм; 6-полюсный; CAGE CLAMP; возможность объединения
Цены
 Купить 745-106 на РадиоЛоцман.Цены — от 1 042 до 2 992 ₽19 предложений от 8 поставщиков 11.11mm (.437) Pitch Beau?„? PCB Fixed Mount Barrier Terminal Strip, Low Profile, 300V, 10 Circuits | |||

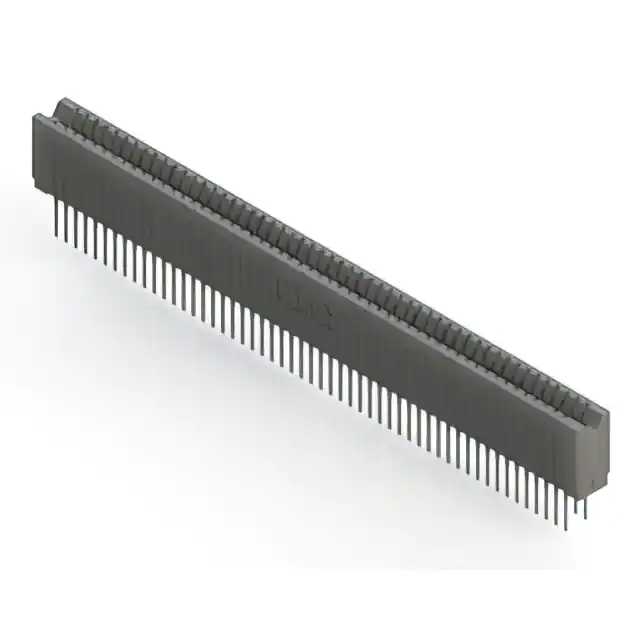

| 745-106-522-206 | от 1 042 ₽ | ||
| 745-106-540-206 | 1 168 ₽ | ||
| 745106-1 TE Connectivity | по запросу | ||
| M3E-745-106 MtronPTI | по запросу | ||
Параметры
| Actuation type | Operating tool |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | gray |
| Conductor entry angle to the PCB | 45 ° |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Country of origin | PL |
| Габариты: глубина | 22.9 mm / 0.902 inch |
| Drilled hole diameter (tolerance) | 1.5(+ 0.1) мм |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 2.5 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² |
| Fire load | 0.206 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4044918671071 |
| Height | 23 mm / 0.906 inch |
| Height from the surface | 19 mm / 0.748 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 6 |
| Number of connection types | 1 |
| Number of jumper slots | 1 |
| Number of levels | 1 |
| Number of solder pins per potential | 2 |
| PCB contact | THT |
| Pin spacing | 5 mm (0.197 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 32 A |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated impulse voltage (III / 2) | 4 kV |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (II / 2) | 630 В |
| Rated voltage (III / 2) | 320 В |
| Rated voltage (III / 3) | 320 В |
| Solder pin arrangement | over the entire terminal strip, in line |
| Solder pin dimensions | 0.8 x 1.2 mm |
| Solder pin length | 4 мм |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Total number of connection points | 6 |
| Total number of potentials | 6 |
| Вес | 12.482 г |
| Ширина | 31.5 mm / 1.24 inch |
