Datasheet Wago 745-207 — Даташит
клеммная колодка для печатной платы; 4 мм²; Расстояние между контактами 10 мм; 7-полюсный; ЗАЖИМ ДЛЯ КЛЕТКИ; вариант объединения

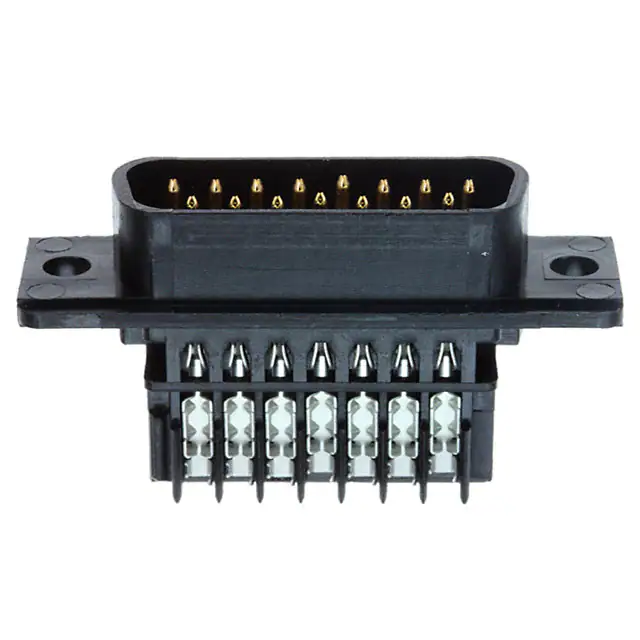

 Купить 745-207 на РадиоЛоцман.Цены — от 282 до 1 676 ₽23 предложений от 14 поставщиков D-Субминиатюрные Контакты, Conn D-Subminiature PIN 15POS 2.76mm IDT ST Cable Mount 15 Terminal 1Port | |||
| 745207-5 | от 345 ₽ | ||
| 745207-2 Tyco | 662 ₽ | ||
| 745207-7 TE Connectivity | 748 ₽ | ||
| 745207-7 | по запросу | ||
Параметры
| Actuation type | Operating tool |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | gray |
| Conductor entry angle to the PCB | 45 ° |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Country of origin | PL |
| Габариты: глубина | 22.9 mm / 0.902 inch |
| Drilled hole diameter (tolerance) | 1.5(+ 0.1) мм |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 2.5 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² |
| Fire load | 0.418 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4044918671361 |
| Height | 23 mm / 0.906 inch |
| Height from the surface | 19 mm / 0.748 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 7 |
| Number of connection types | 1 |
| Number of jumper slots | 1 |
| Number of levels | 1 |
| Number of solder pins per potential | 2 |
| PCB contact | THT |
| Pin spacing | 10 mm (0.394 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 32 A |
| Rated impulse voltage (II / 2) | 8 kV |
| Rated impulse voltage (III / 2) | 8 kV |
| Rated impulse voltage (III / 3) | 8 kV |
| Rated voltage (II / 2) | 1000 В |
| Rated voltage (III / 2) | 1000 В |
| Rated voltage (III / 3) | 630 В |
| Solder pin arrangement | over the entire terminal strip, in line |
| Solder pin dimensions | 0.8 x 1.2 mm |
| Solder pin length | 4 мм |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Total number of connection points | 7 |
| Total number of potentials | 7 |
| Вес | 20.487 г |
| Ширина | 66.5 mm / 2.618 inch |
