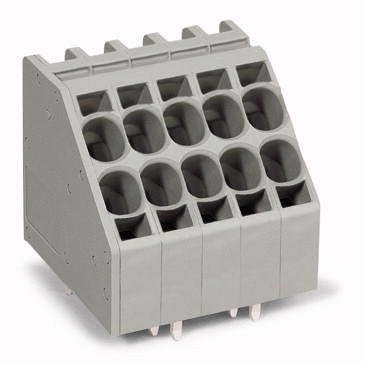

Datasheet Wago 746 — Даташит

Производитель	Wago
Серия	746

Параметры

Parameters / Models	746-2302	746-2303	746-2303/000-009	746-2303/000-016	746-2304	746-2305	746-2305/000-006	746-2305/000-016	746-2306	746-2307	746-2308	746-2308/000-006	746-2308/000-009	746-2309	746-2310	746-2312
Actuation type	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Clamping spring material	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	gray	gray	light gray	green-yellow	gray	gray	blue	green-yellow	gray	gray	gray	blue	light gray	gray	gray	gray
Conductor entry angle to the PCB, °	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Contact material	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Country of origin	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL
Габариты: глубина	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch	37 mm / 1.457 inch
Drilled hole diameter (tolerance), мм	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)	2.2(+ 0.1)
Fine-stranded conductor	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG
Fine-stranded conductor with ferrule with plastic collar	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²
Fine-stranded conductor with ferrule without plastic collar	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²	0.5 … 6 mm²
Fire load, MJ	0.301	0.423	0.408	0.409	0.545	0.667	0.641	0.643	0.789	0.911	1.033	0.992	0.993	1.155	1.277	1.521
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4045454156534	4045454156558	4045454299576	4050821478799	4045454156572	4045454123260	4050821256601	4050821256625	4045454156589	4045454156596	4045454156602	4050821460657	4050821477631	4045454156619	4045454156626	4045454156633
Height	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch	41.3 mm / 1.623 inch
Height from the surface	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch	36.9 mm / 1.453 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Number of Poles	2	3	3	3	4	5	5	5	6	7	8	8	8	9	10	12
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Number of solder pins per potential	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
PCB contact	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT
Pin spacing	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)
Product Group	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)
Rated current, A	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50
Rated impulse voltage (II / 2), kV	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Rated impulse voltage (III / 2), kV	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Rated impulse voltage (III / 3), kV	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Rated voltage (II / 2), В	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Rated voltage (III / 2), В	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Rated voltage (III / 3), В	800	800	800	800	800	800	800	800	800	800	800	800	800	800	800	800
Solder pin arrangement	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered
Solder pin dimensions	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm	1.6 x 1.2 mm
Solder pin length, мм	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4
Solid conductor	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG	0.5 … 10 mm² / 20 … 8 AWG
Strip length	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch
Total number of connection points	4	6	6	6	8	10	10	10	12	14	16	16	16	18	20	24
Total number of potentials	2	3	3	3	4	5	5	5	6	7	8	8	8	9	10	12
Вес, г	17.018	24.698	24.654	24.665	32.124	39.804	39.74	39.749	47.23	54.91	62.336	62.251	62.247	70.016	77.442	92.548
Ширина	17.7 mm / 0.697 inch	25.2 mm / 0.992 inch	25.2 mm / 0.992 inch	25.2 mm / 0.992 inch	32.7 mm / 1.287 inch	40.2 mm / 1.583 inch	40.2 mm / 1.583 inch	40.2 mm / 1.583 inch	47.7 mm / 1.878 inch	55.2 mm / 2.173 inch	62.7 mm / 2.469 inch	62.7 mm / 2.469 inch	62.7 mm / 2.469 inch	70.2 mm / 2.764 inch	77.7 mm / 3.059 inch	92.7 mm / 3.65 inch

Модельный ряд

Классификация производителя

• PCB Interconnect
