Datasheet Wago 770-804 — Даташит

Розетка для печатных плат; прямые; 4-пол.; Код. A

Цены

Купить 770-804 на РадиоЛоцман.Цены — от 1 790 до 2 657 ₽ 5 предложений от 5 поставщиков Испытательные Провода и Пробники
Компонентс Ру Россия	MP770804 TE Connectivity	1 790 ₽
Зенер Россия и страны ТС	MP770804	1 857 ₽
Элитан Россия	MP770804 Multicomp	2 657 ₽
Augswan Весь мир	770-804/011-000 Wago	по запросу

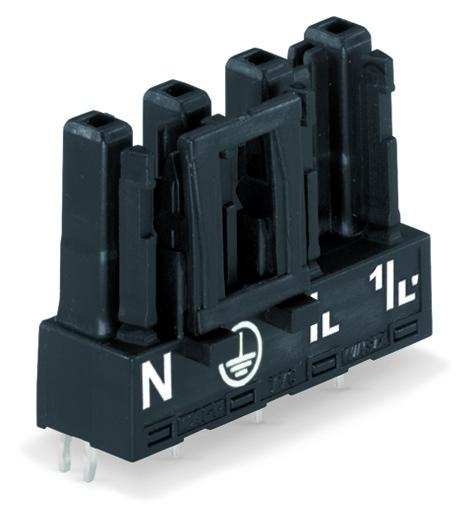

Wago 770-804

Coding	A
Цвет	black
Connector connection type	for PCBs
Contact material	Copper or copper alloy, surface-treated
Contact type (pluggable connector)	Female connector/socket
Country of origin	DE
Degree of protection	IP20
Габариты: глубина	14.6 mm / 0.575 inch
Design	straight
Drilled hole diameter (tolerance)	1.5(+ 0.1 ... - 0.1) мм
Fire load	0.158 MJ
Flammability class per UL94	V0
GTIN	4044918684651
Height	29.5 mm / 1.161 inch
Height from the surface	26 mm / 1.024 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Locking lever	да
Locking of plug-in connection	locking lever
Marking	N ⏚ 2\|L 1\|L'
Mating direction to the PCB	90 °
Mating force of a plug-in connection	approx. 20 … 70 N (depending on pole number)
Mismating protection	Yes
Number of Poles	4
Number of levels	1
Number of solder pins per potential	2
PCB contact	THT
Pin spacing	10 mm (0.394 inch)
Potential marking	N ⏚ 2/L 1/L'
Rated current	25 A
Rated impulse voltage (III / 3)	6 kV
Rated voltage (III / 3)	400 В
Retention force of a plug-in connection	when locked: > 80N
Solder pin arrangement	2 in-line solder pins/pole
Solder pin dimensions	1 x 0.8 mm
Solder pin length	3.5 мм
Surrounding air (operating) temperature	-35 … 85 °C
Total number of potentials	4
Unmating force of a plug-in connection	when unlocked: approx. 20 … 70 N (depending on pole number)
Вес	8.473 г
Ширина	37 mm / 1.457 inch

Серия: 770 (100 из 608)

770804, 770 804
