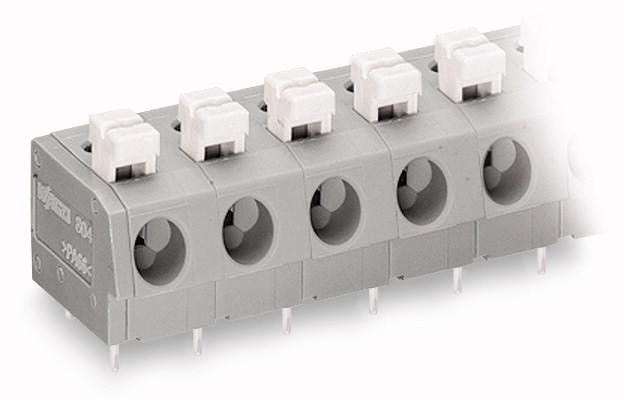

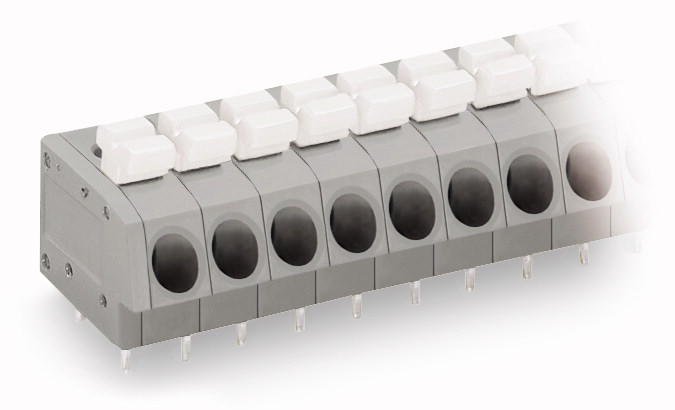

Datasheet Wago 804 — Даташит

Производитель	Wago
Серия	804

Цены

Купить 804-102 на РадиоЛоцман.Цены — от 91 до 86 790 ₽ 20 предложений от 9 поставщиков Настольный источник питания, Power Supply, 1CH, 32V, 10A, Prog
AiPCBA Весь мир	804-102 Wago	91 ₽
Зенер Россия и страны ТС	804-102	от 182 ₽
Элитан Россия	804-102 Wago	219 ₽
Компонентс Ру Россия	804-102 Wago	от 271 ₽

Параметры

Parameters / Models	804-102	804-102/000-051	804-103	804-104	804-104/000-004	804-105	804-106	804-107	804-108	804-109	804-110	804-111	804-112	804-113	804-114	804-115	804-116	804-302	804-303	804-304	804-304/000-012	804-305	804-306	804-307	804-308	804-309	804-310	804-311	804-312
Actuation type	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Clamping spring material	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	gray	pink	gray	gray	black	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	orange	gray	gray	gray	gray	gray	gray	gray	gray
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Contact material	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Country of origin	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH
Габариты: глубина	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.531 inch	15 mm / 0.591 inch	15 mm / 0.531 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	15 mm / 0.591 inch
Drilled hole diameter (tolerance), мм	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)	1.1(+ 0.1)
Fine-stranded conductor	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG	0.25 … 2.5 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²	0.25 … 1.5 mm²
Fine-stranded conductor with ferrule without plastic collar	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²
Fire load, MJ	0.037		0.052	0.067		0.082	0.097	0.112	0.127	0.142	0.157	0.172	0.187	0.202	0.217	0.232	0.247	0.044	0.066	0.088		0.11	0.132	0.154	0.176	0.198	0.22	0.242	0.264
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4044918514934	4055143378710	4044918514972	4044918515009	4055143248174	4044918515030	4044918515061	4044918515092	4044918515122	4044918515153	4044918515184	4044918515214	4044918515245	4044918515276	4044918515306	4044918515337	4044918515368	4044918515399	4044918515405	4044918515412	4055143278911	4044918515429	4044918515436	4044918515443	4044918515450	4044918515467	4044918515474	4044918515481	4044918515498
Height	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch	18.1 mm / 0.713 inch
Height from the surface	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Number of Poles	2	2	3	4	4	5	6	7	8	9	10	11	12	13	14	15	16	2	3	4	4	5	6	7	8	9	10	11	12
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of solder pins per potential	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
PCB contact	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT
Packaging type		BOX			BOX																BOX
Pin spacing	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)
Product Group	4 (Printed Circuit)		4 (Printed Circuit)	4 (Printed Circuit)		4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)		4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)
Rated current, A	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
Rated impulse voltage (II / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 3), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated voltage (II / 2), В	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630
Rated voltage (III / 2), В	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Rated voltage (III / 3), В	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	320	320	320	320	320	320	320	320	320	320	320	320
Solder pin arrangement	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered
Solder pin dimensions	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm	0.8 x 0.6 mm
Solder pin length, мм	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6
Solid conductor	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG	0.25 … 2.5 mm² / 20 … 12 AWG
Strip length	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch	10 … 11 mm / 0.39 … 0.43 Inch
Total number of connection points	2	2	3	4	4	5	6	7	8	9	10	11	12	13	14	15	16	2	3	4	4	5	6	7	8	9	10	11	12
Total number of potentials	2	2	3	4	4	5	6	7	8	9	10	11	12	13	14	15	16	2	3	4	4	5	6	7	8	9	10	11	12
Вес, г	2.208	2.227	3.192	4.176	5.114	5.16	6.144	7.128	8.112	9.096	10.08	11.064	12.048	13.032	14.016	15	15.984	2.427	3.63	4.833	4.815	6.036	7.239	8.442	9.645	10.848	12.051	13.254	14.457
Ширина	11.5 mm / 0.453 inch	11.5 mm / 0.453 inch	16.5 mm / 0.65 inch	21.5 mm / 0.846 inch	21.5 mm / 0.846 inch	26.5 mm / 1.043 inch	31.5 mm / 1.24 inch	36.5 mm / 1.437 inch	41.5 mm / 1.634 inch	46.5 mm / 1.831 inch	51.5 mm / 2.028 inch	56.5 mm / 2.224 inch	61.5 mm / 2.421 inch	66.5 mm / 2.618 inch	71.5 mm / 2.815 inch	76.5 mm / 3.012 inch	81.5 mm / 3.209 inch	14 mm / 0.551 inch	21.5 mm / 0.846 inch	29 mm / 1.142 inch	29 mm / 1.142 inch	36.5 mm / 1.437 inch	44 mm / 1.732 inch	51.5 mm / 2.028 inch	59 mm / 2.323 inch	66.5 mm / 2.618 inch	74 mm / 2.913 inch	81.5 mm / 3.209 inch	89 mm / 3.504 inch

Модельный ряд

Серия: 804 (30)

804-102 804-102/000-051 804-103 804-104 804-104/000-004 804-105 804-106 804-107 804-108 804-109 804-110 804-111 804-112 804-113 804-114 804-115 804-116 804-302 804-303 804-304 804-304/000-012 804-305 804-306 804-307 804-308 804-309 804-309/000-008 804-310 804-311 804-312

Классификация производителя

PCB Interconnect
