Datasheet Wago 806 — Даташит

Производитель	Wago
Серия	806

Цены

Купить 806-102 на РадиоЛоцман.Цены — от 214 до 6 671 ₽ 13 предложений от 13 поставщиков Ленточные и Плоские Кабели, Flat Cable 25Conductors 28AWG 30.48m Tinned Copper Gray/Red Edge 300V Roll
ChipWorker Весь мир	80-6102-0196-6 3M	2 100 ₽
Компонентс Ру Россия	80-6102-0196-6	6 671 ₽
TradeElectronics Россия	80-6102-0192-5	по запросу
ЭлектроПласт- Екатеринбург Россия	80-6102-0088-5	по запросу

Подробное описание

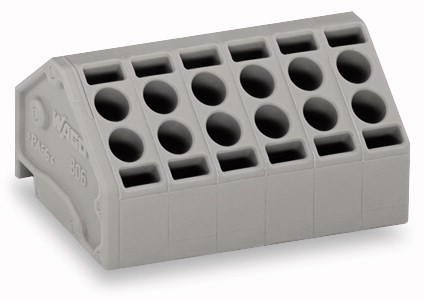

Wago 806

Параметры

Parameters / Models	806-102	806-103	806-104	806-105	806-106	806-107	806-108	806-109	806-110	806-111	806-112	806-202	806-203	806-204	806-205	806-206	806-207	806-208	806-209	806-210	806-211	806-212	806-902	806-903	806-904	806-905	806-906	806-907	806-908	806-909	806-910	806-911	806-912
Actuation type	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Clamping spring material	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray
Conductor entry angle to the PCB, °	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Connector connection type	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs	for PCBs
Contact material	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Contact type (pluggable connector)	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Female connector/socket	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug	Male connector/plug
Country of origin	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	PL	DE	CN	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	19.8 mm / 0.78 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch	2.7 mm / 0.106 inch

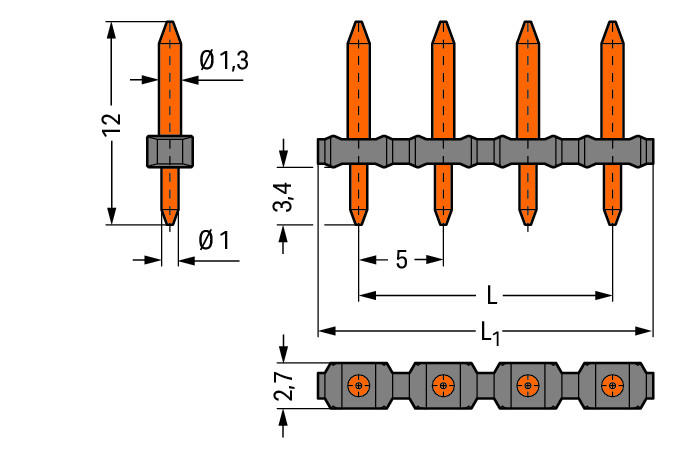

Drilled hole diameter (tolerance), мм																							1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)	1.3(+ 0.05)
Fine-stranded conductor	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²
Fine-stranded conductor with ferrule without plastic collar	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²	0.25 … 1 mm²
Fire load, MJ	0.056	0.08	0.104	0.128	0.152	0.176	0.2	0.224	0.248	0.272	0.296	0.059	0.083	0.107	0.131	0.155	0.179	0.203	0.227	0.251	0.275	0.299
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4045454076900	4045454076917	4045454076924	4045454076931	4045454076948	4045454076955	4045454076962	4045454076993	4045454077006	4045454077037	4045454077044	4045454077068	4045454077075	4045454077099	4045454077105	4045454077112	4045454077136	4045454077143	4045454077174	4045454077181	4045454077198	4045454077204	4044918368117	4044918325813	4044918325837	4044918325882	4044918325820	4044918429191	4044918368124	4044918429221	4044918429238	4044918429245	4044918429252
Height	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	16.25 mm / 0.64 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	23.3 mm / 0.917 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch	12 mm / 0.472 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Mating direction to the PCB, °	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90
Number of Poles	2	3	4	5	6	7	8	9	10	11	12	2	3	4	5	6	7	8	9	10	11	12	2	3	4	5	6	7	8	9	10	11	12
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
PCB contact	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT
Pin spacing	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm (0.197 inch)	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch
Product Group	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)
Rated current, A	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10
Rated impulse voltage (II / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 3), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated voltage (II / 2), В	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630
Rated voltage (III / 2), В	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Rated voltage (III / 3), В	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250

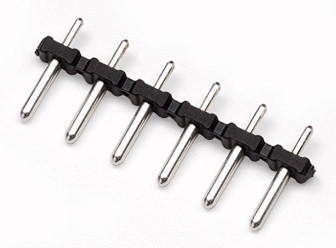

Solder pin diameter, мм	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Solder pin length, мм																							3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Solid conductor	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG	0.2 … 1.5 mm² / 24 … 16 AWG
Strip length	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch
Total number of connection points	4	6	8	10	12	14	16	18	20	22	24	4	6	8	10	12	14	16	18	20	22	24
Total number of potentials	2	3	4	5	6	7	8	9	10	11	12	2	3	4	5	6	7	8	9	10	11	12
Вес, г	2.728	3.959	5.19	6.421	7.652	8.883	10.114	11.345	12.576	13.807	15.038	2.826	4.057	5.288	6.519	7.75	8.981	10.212	11.443	12.674	13.91	15.141	0.28	2.514	0.55	0.68	0.7	0.935	1.1	1.2	1.4	9.218	1.7
Ширина	11.5 mm / 0.453 inch	16.5 mm / 0.65 inch	21.5 mm / 0.846 inch	26.5 mm / 1.043 inch	31.5 mm / 1.24 inch	36.5 mm / 1.437 inch	41.5 mm / 1.634 inch	46.5 mm / 1.831 inch	51.5 mm / 2.028 inch	56.5 mm / 2.224 inch	61.5 mm / 2.421 inch	11.5 mm / 0.453 inch	16.5 mm / 0.65 inch	21.5 mm / 0.846 inch	26.5 mm / 1.043 inch	31.5 mm / 1.24 inch	36.5 mm / 1.437 inch	41.5 mm / 1.634 inch	46.5 mm / 1.831 inch	51.5 mm / 2.028 inch	56.5 mm / 2.224 inch	61.5 mm / 2.421 inch	9.8 mm / 0.386 inch	14.8 mm / 0.583 inch	19.8 mm / 0.78 inch	24.8 mm / 0.976 inch	29.8 mm / 1.173 inch	34.8 mm / 1.37 inch	39.8 mm / 1.567 inch	44.8 mm / 1.764 inch	49.8 mm / 1.961 inch	54.8 mm / 2.157 inch	59.8 mm / 2.354 inch

Модельный ряд

Серия: 806 (33)

806-102 806-103 806-104 806-105 806-106 806-107 806-108 806-109 806-110 806-111 806-112 806-202 806-203 806-204 806-205 806-206 806-207 806-208 806-209 806-210 806-211 806-212 806-902 806-903 806-904 806-905 806-906 806-907 806-908 806-909 806-910 806-911 806-912

Классификация производителя

PCB Interconnect | Pluggable Connection Systems
