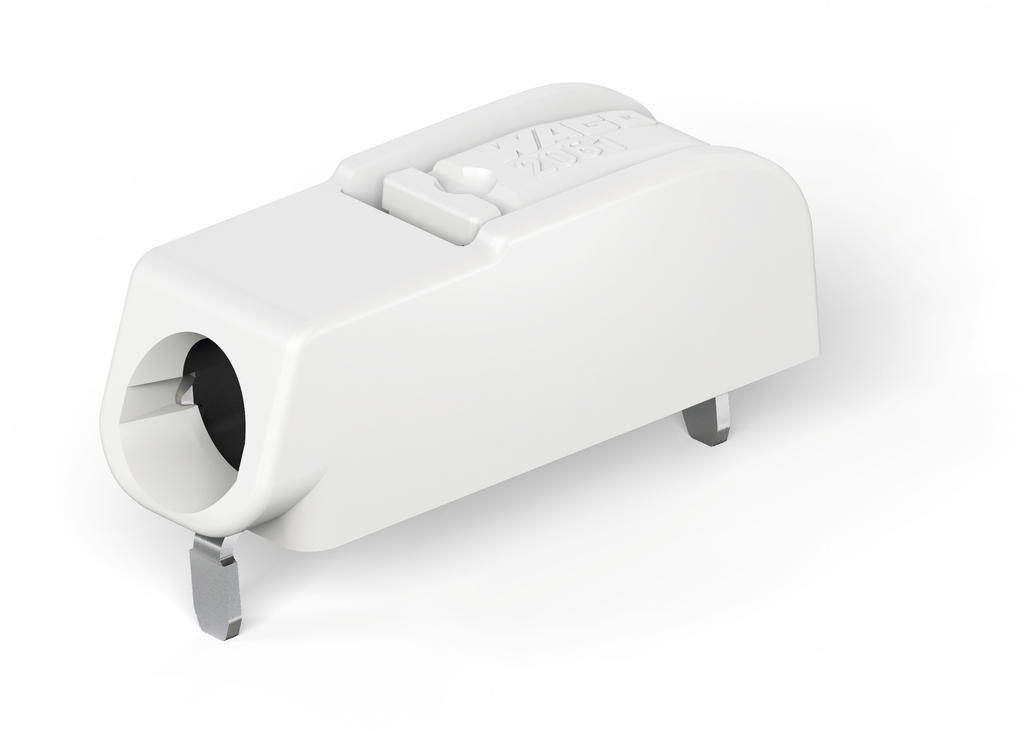

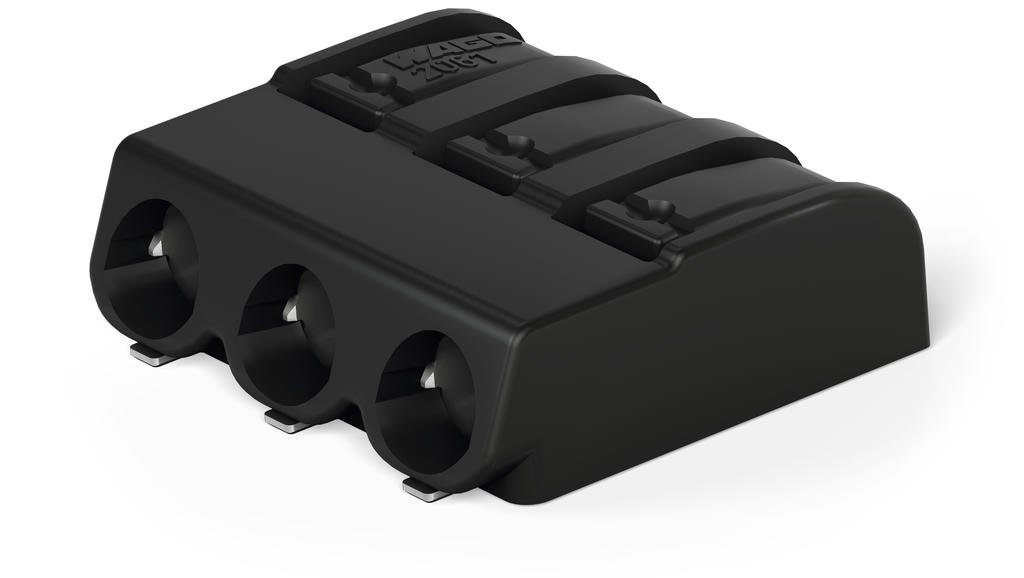

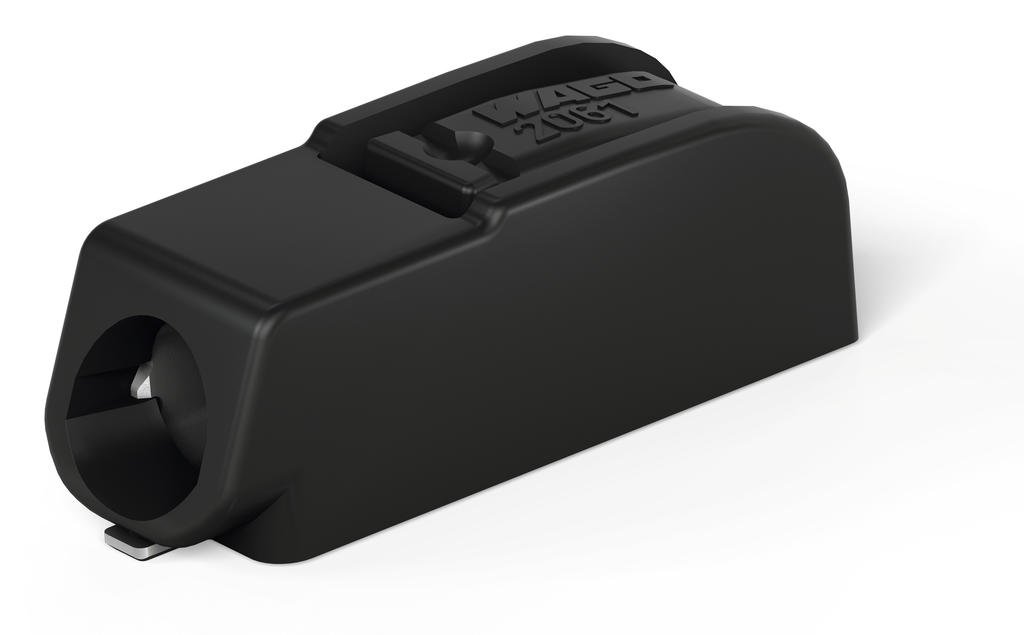

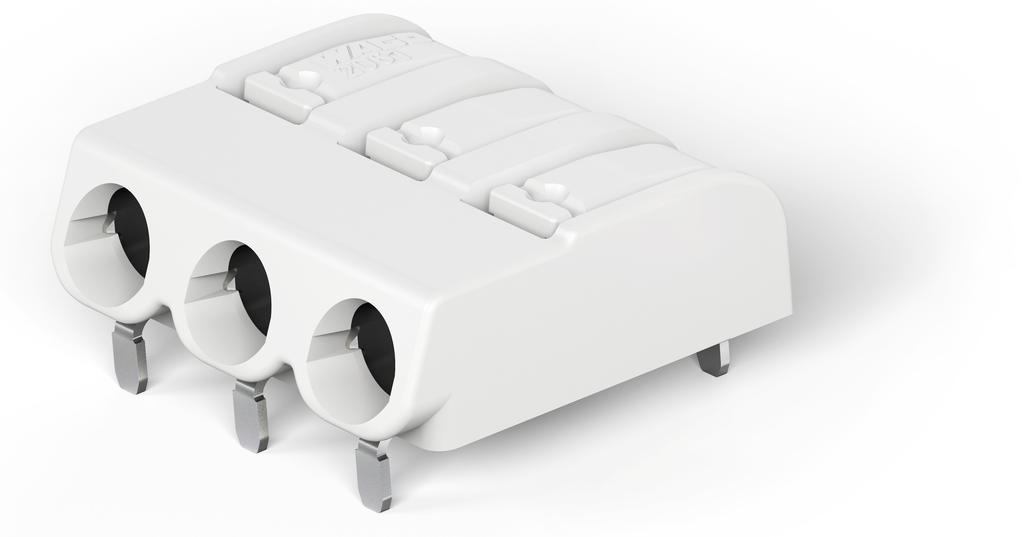

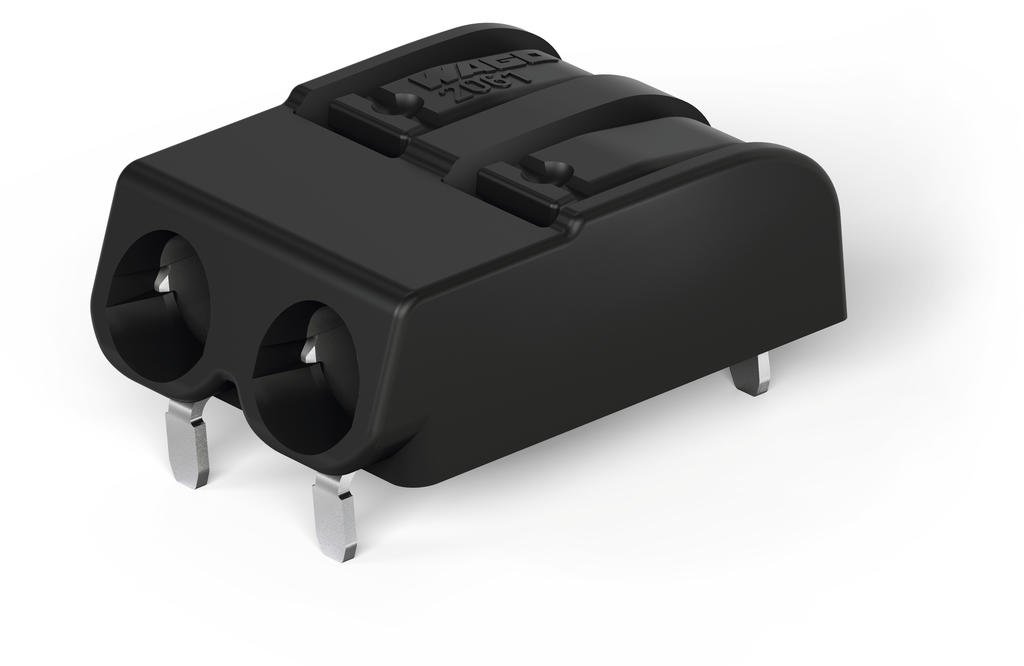

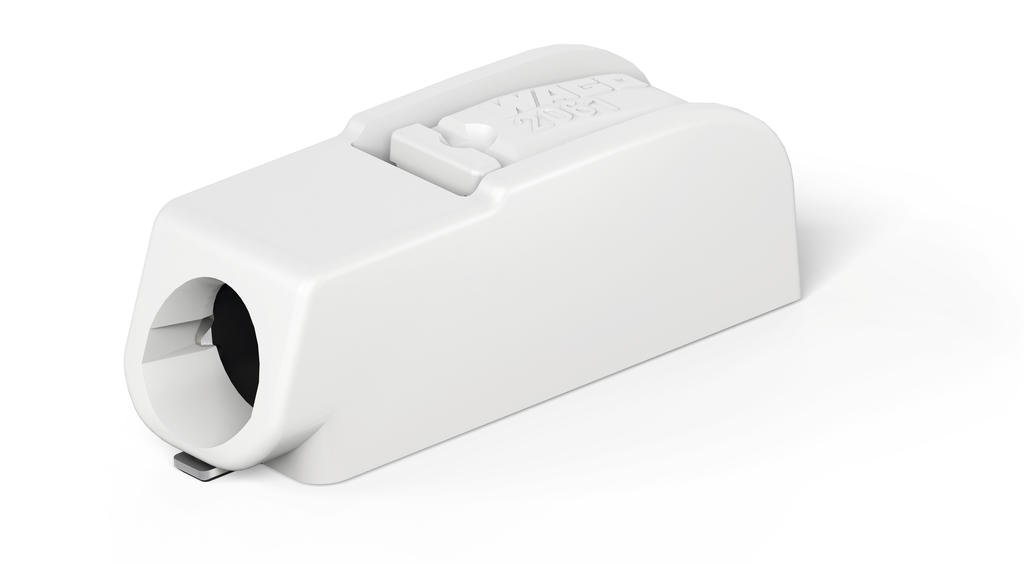

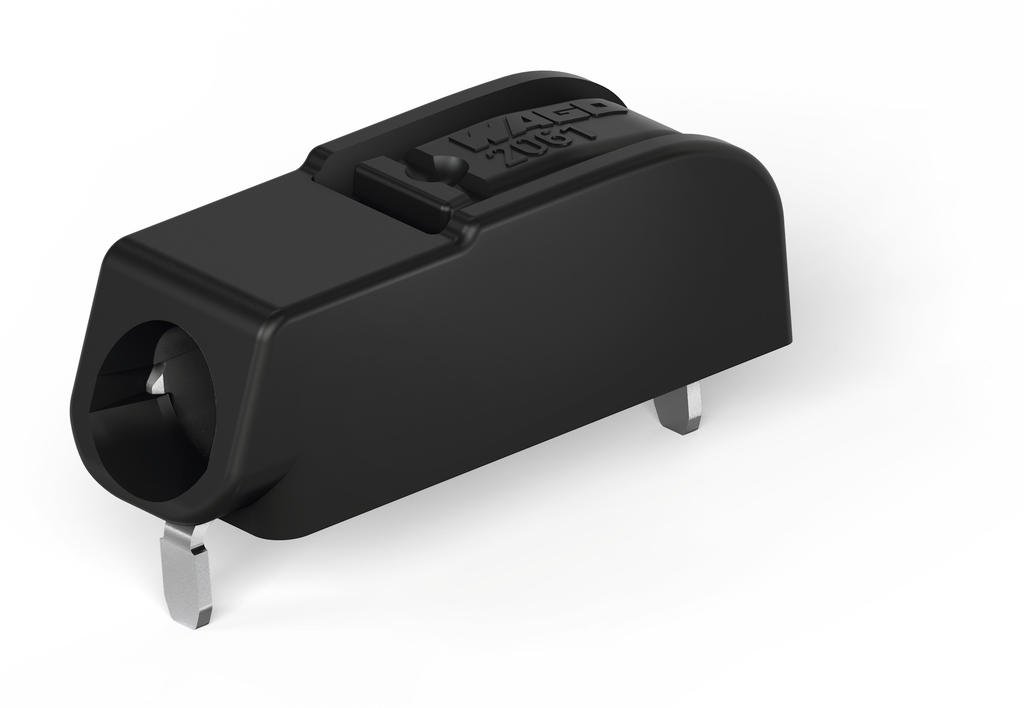

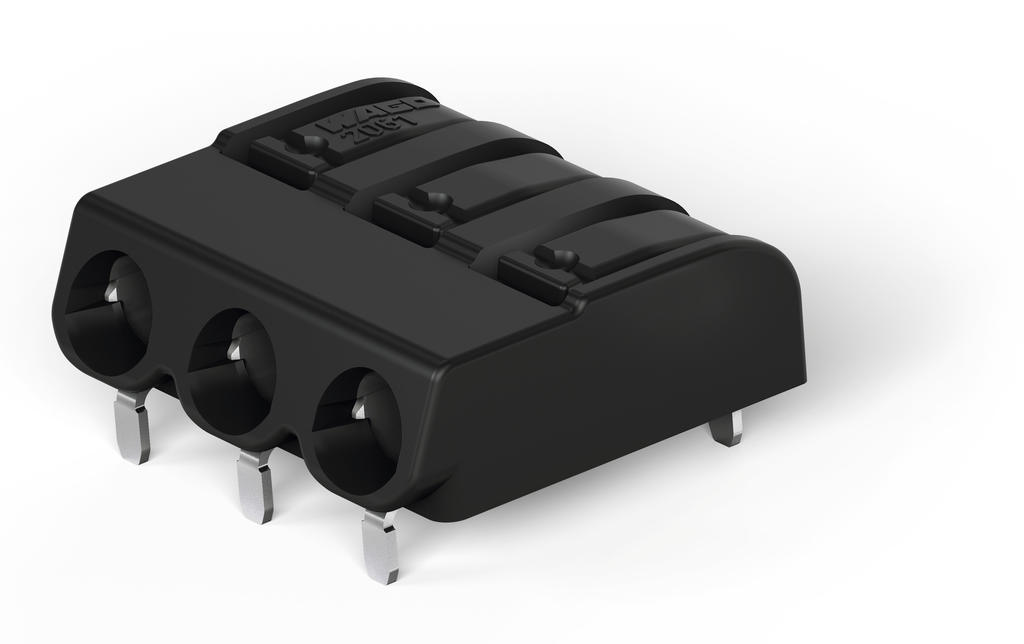

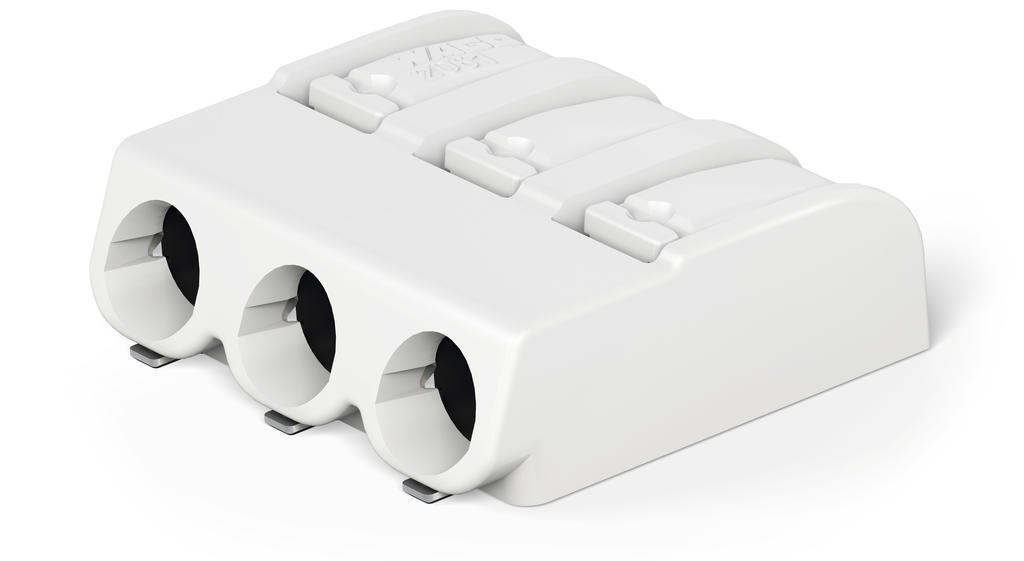

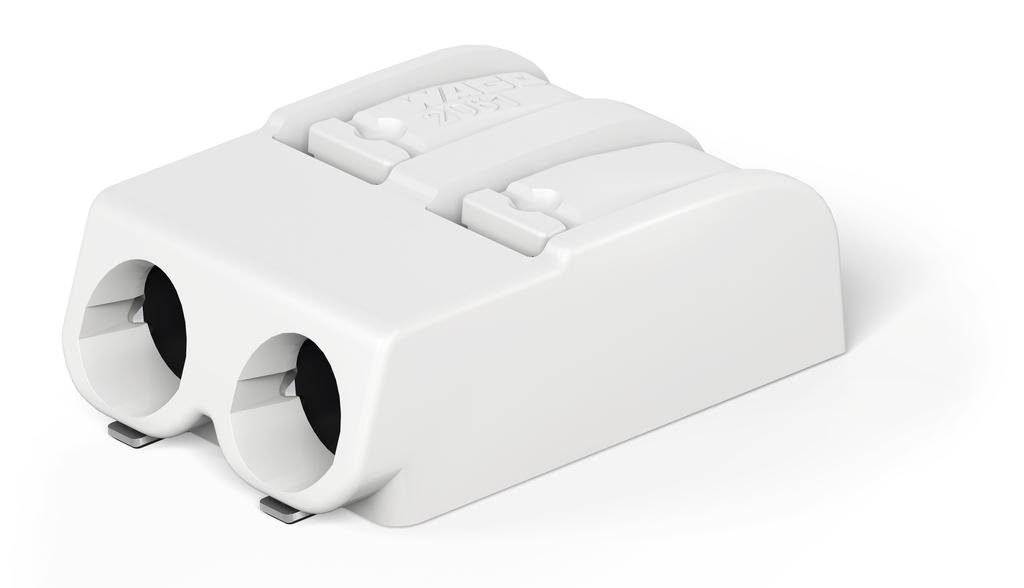

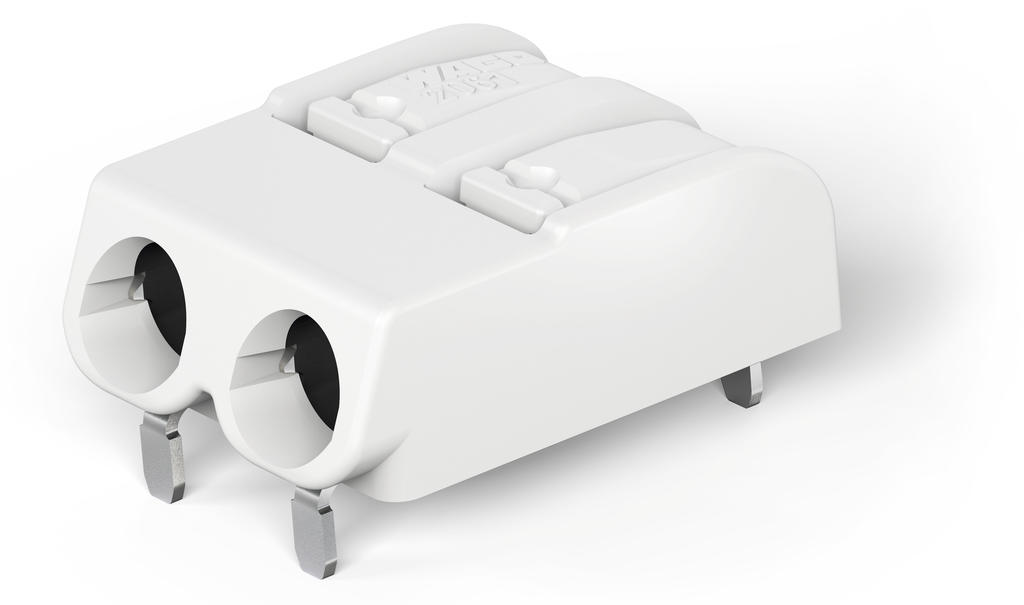

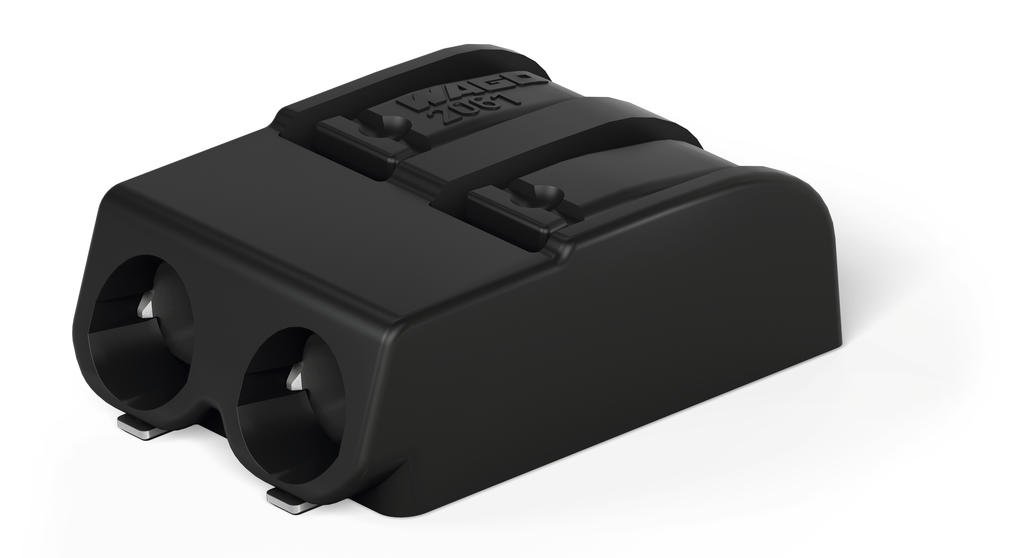

Datasheet Wago 2061 — Даташит

Производитель	Wago
Серия	2061

Цены

Купить 2061-1601/998-404 на РадиоЛоцман.Цены — от 137 до 5 432 ₽ 19 предложений от 6 поставщиков Клеммная колодка типа провод к плате, White, 1 вывод(-ов), 20 AWG, 16 AWG, 1.5 мм², Вставной
Компонентс Ру Россия	2061-1601/998-404 Wago	от 137 ₽	Купить
Зенер Россия и страны ТС	2061-1601/998-404	от 138 ₽	Купить
Онлайн Компоненты Россия	2061-1601/998-404 Wago	от 200 ₽	Купить
Augswan Весь мир	2061-1601/998-404 Wago	по запросу	Купить

Параметры

Parameters / Models	2061-1601/998-404	2061-1602/998-404	2061-1603/998-404	2061-1621/998-404	2061-1622/998-404	2061-1623/998-404	2061-1641/998-404	2061-1642/998-404	2061-1643/998-404	2061-1661/998-404	2061-1662/998-404	2061-1663/998-404	2061-601/998-404	2061-602/998-404	2061-603/998-404	2061-621/998-404	2061-622/998-404	2061-623/998-404
Actuation type	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Цвет	white	white	white	black	black	black	white	white	white	black	black	black	white	white	white	black	black	black
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Contact material	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy	Copper alloy
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Country of origin	CH	CN	CN	CN	CH	CH	CH	CH	CH	CH	CH	CH	CN	CH	CH	CN	CH	CN
Габариты: глубина	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.2 mm / 0.598 inch	15.8 mm / 0.622 inch	15.8 mm / 0.622 inch	15.8 mm / 0.622 inch	15.8 mm / 0.622 inch	15.8 mm / 0.622 inch	15.8 mm / 0.622 inch
Fine-stranded conductor	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG
Fine-stranded conductor with ferrule with plastic collar	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²
Fine-stranded conductor with ferrule without plastic collar	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²	0.5 … 0.75 mm²
Fire load, MJ		0.017	0.026	0.008									0.008			0.008		0.026
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4055143274715	4055143274692	4055143274753	4055143274739	4055143274708	4055143274760	4055143274722	4055143274678	4055143274777	4055143274746	4055143274685	4055143274784	4055143278065	4050821859802	4055143242783	4055143251129	4055143240758	4055143251105
Height	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	8 mm / 0.315 inch	7.1 mm / 0.28 inch	7.1 mm / 0.28 inch	7.1 mm / 0.28 inch	7.1 mm / 0.28 inch	7.1 mm / 0.28 inch	7.1 mm / 0.28 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch
Height from the surface	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch	5.6 mm / 0.22 inch
Insulating material	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)	Polyphtalamide (PPA GF)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Number of Poles	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of solder pins per potential	2	2	2	2	2	2	2	2	2	2	2	2
PCB contact	THR	THR	THR	THR	THR	THR	THR	THR	THR	THR	THR	THR	SMD	SMD	SMD	SMD	SMD	SMD
Packaging type	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
Pin spacing	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)	6 mm (0.24 inch)
Plated through-hole diameter (THR), мм	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)	1.5 (+ 0.1)
Rated current, A	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5
Rated impulse voltage (II / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 3), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated voltage (II / 2), В	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630	630
Rated voltage (III / 2), В	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
Rated voltage (III / 3), В	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250
Reel diameter of tape-and-reel packaging, мм	330	330	330	330	330	330	330	330	330	330	330	330	330	330	330	330	330	330
Solder pin arrangement	within the terminal block, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	within the terminal block, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	within the terminal block, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	within the terminal block, in line	over the entire terminal strip, in line	over the entire terminal strip, in line
Solder pin dimensions	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm	1.2 x 0.35 mm
Solder pin length, мм	2.4	2.4	2.4	2.4	2.4	2.4	1.5	1.5	1.5	1.5	1.5	1.5
Solid conductor	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG
Strip length	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch	7 … 10 mm / 0.28 … 0.39 Inch
Tape width, мм	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
Total number of connection points	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
Total number of potentials	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
Вес, г	0.534	1.067	1.63	0.54	1.067	1.63	0.524	1.047	1.6	0.524	1.047	1.6	0.418	1.053	1.609	0.527	1.053	1.61
Ширина	5.7 mm / 0.224 inch	11.7 mm / 0.461 inch	17.7 mm / 0.697 inch	5.7 mm / 0.224 inch	11.7 mm / 0.461 inch	17.7 mm / 0.697 inch	5.7 mm / 0.224 inch	11.7 mm / 0.461 inch	17.7 mm / 0.697 inch	5.7 mm / 0.224 inch	11.7 mm / 0.461 inch	17.7 mm / 0.697 inch	5.7 mm / 0.224 inch	11.7 mm / 0.461 inch	17.7 mm / 0.697 inch	5.7 mm / 0.224 inch	11.7 mm / 0.461 inch	17.7 mm / 0.697 inch

Модельный ряд

Классификация производителя

• PCB Interconnect
