Datasheet Wago 2092-1636/024-000 — Даташит
Panel feedthrough male connector; зажимное кольцо; Шаг контактов 5 мм; 6-пол.
PANEL FEEDTHROUGH MALE CONNECTOR | |||
| 2092-1636/024-000 Wago | по запросу | ||

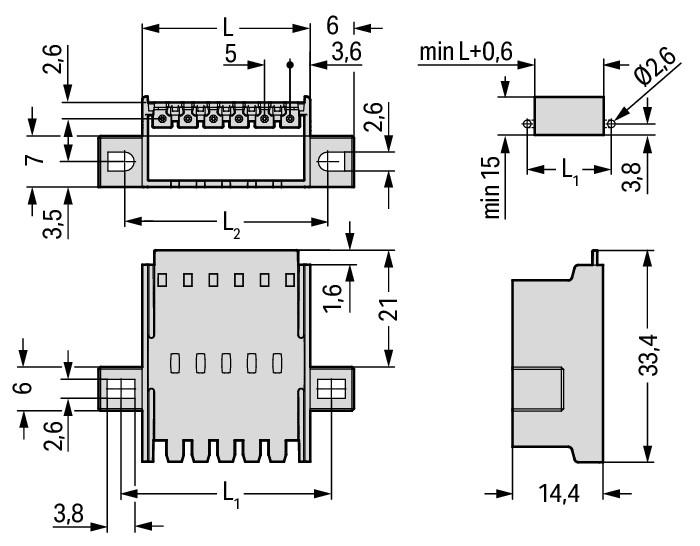

Подробное описание
Параметры
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | light gray |
| Connector connection type | for pluggable connectors |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Country of origin | DE |
| Габариты: глубина | 33.4 mm / 1.315 inch |
| Fire load | 0.116 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4050821165743 |
| Height | 14.4 mm / 0.567 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Locking of plug-in connection | Male locking latch |
| Material group | I |
| Mismating protection | No |
| Mounting type | Mounting flange |
| Number of Poles | 6 |
| Number of levels | 1 |
| Pin spacing | 5 mm (0.197 inch) |
| Product Group | 26 (picoMAX) |
| Rated current | 16 A |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated impulse voltage (III / 2) | 4 kV |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (II / 2) | 630 В |
| Rated voltage (III / 2) | 320 В |
| Rated voltage (III / 3) | 250 В |
| Total number of potentials | 6 |
| Type of mounting | Feed-through mounting Panel mounting |
| Вес | 5.53 г |
| Ширина | 32.2 mm / 1.268 inch |
