Datasheet Wago 2092-3425/005-000 — Даташит
Вилка THT; 1.4 mm Ø solder pin; угловые; зажимное кольцо; Шаг контактов 7,5 мм; 5-пол.
Цены
THT MALE HEADER; 1.4 MM SOLDER | |||
| 2092-3425/005-000 Wago | по запросу | ||

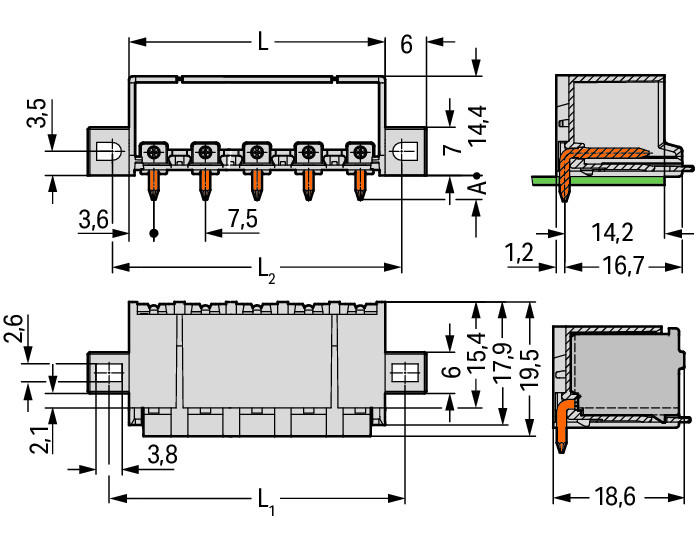

Подробное описание
Параметры
| Цвет | light gray |
| Connector connection type | for PCBs |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Country of origin | DE |
| Габариты: глубина | 19.5 mm / 0.768 inch |
| Drilled hole diameter (tolerance) | 1.6(+ 0.1) мм |
| Fire load | 0.092 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4050821165965 |
| Height | 18 mm / 0.709 inch |
| Height from the surface | 14.4 mm / 0.567 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Locking of plug-in connection | Male locking latch |
| Material group | I |
| Mismating protection | No |
| Mounting type | Mounting flange |
| Number of Poles | 5 |
| Number of levels | 1 |
| PCB contact | THT |
| Pin spacing | 7.5 mm (0.295 inch) |
| Product Group | 26 (picoMAX) |
| Rated current | 16 A |
| Rated impulse voltage (II / 2) | 6 kV |
| Rated impulse voltage (III / 2) | 6 kV |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (II / 2) | 1000 В |
| Rated voltage (III / 2) | 630 В |
| Rated voltage (III / 3) | 400 В |
| Solder pin diameter | 1.4 мм |
| Solder pin length | 3.6 мм |
| Total number of potentials | 5 |
| Type of mounting | Feed-through mounting Panel mounting |
| Вес | 4.22 г |
| Ширина | 49.2 mm / 1.937 inch |
Модельный ряд
Серия: 2092 (100 из 338)
- 2092-3102/002-1000 2092-3103 2092-3103/002-000 2092-3103/002-1000 2092-3104 2092-3104/002-000 2092-3105 2092-3105/002-000 2092-3105/002-1000 2092-3122 2092-3123 2092-3124 2092-3125 2092-3152 2092-3153 2092-3154 2092-3155 2092-3172 2092-3172/200-000 2092-3173 2092-3173/200-000 2092-3174 2092-3174/200-000 2092-3175 2092-3175/200-000 2092-3302 2092-3302/200-000 2092-3303 2092-3303/200-000 2092-3304 2092-3304/200-000 2092-3305 2092-3305/200-000 2092-3322 2092-3322/200-000 2092-3323 2092-3323/200-000 2092-3324 2092-3324/200-000 2092-3325 2092-3352 2092-3353 2092-3354 2092-3355 2092-3372 2092-3373 2092-3374 2092-3375 2092-3402 2092-3402/005-000 2092-3402/200-000 2092-3402/205-000 2092-3403 2092-3403/005-000 2092-3403/200-000 2092-3403/205-000 2092-3404 2092-3404/005-000 2092-3404/200-000 2092-3404/205-000 2092-3405 2092-3405/005-000 2092-3405/200-000 2092-3405/205-000 2092-3422 2092-3422/005-000 2092-3422/200-000 2092-3422/205-000 2092-3423 2092-3423/005-000 2092-3423/200-000 2092-3423/205-000 2092-3424 2092-3424/005-000 2092-3424/200-000 2092-3424/205-000 2092-3425 2092-3425/005-000 2092-3425/200-000 2092-3425/205-000 2092-3502/002-000 2092-3503/002-000 2092-3504/002-000 2092-3505/002-000 2092-3522/002-000 2092-3522/020-000 2092-3523/002-000 2092-3523/020-000 2092-3524/002-000 2092-3524/020-000 2092-3525/002-000 2092-3525/020-000 2092-3600 2092-3600/002-000 2092-3601 2092-3601/002-000 2092-3602 2092-3602/002-000 2092-3603 2092-3603/002-000
Классификация производителя
- PCB Interconnect | Pluggable Connection Systems
Варианты написания:
20923425/005000, 2092 3425/005 000
