Datasheet Wago 2626 — Даташит

Производитель	Wago
Серия	2626

Цены

Купить 2626-1101 на РадиоЛоцман.Цены — от 243 до 14 518 ₽ 21 предложений от 6 поставщиков PCB TERMINAL BLOCK; 6 MM; PIN SP
Зенер Россия и страны ТС	2626-1101	от 243 ₽	Купить
ЭИК Россия	2626-1101 Wago	от 340 ₽	Купить
Элитан Россия	2626-1101 Wago	408 ₽	Купить
Augswan Весь мир	2626-1101/000-006 Wago	по запросу	Купить

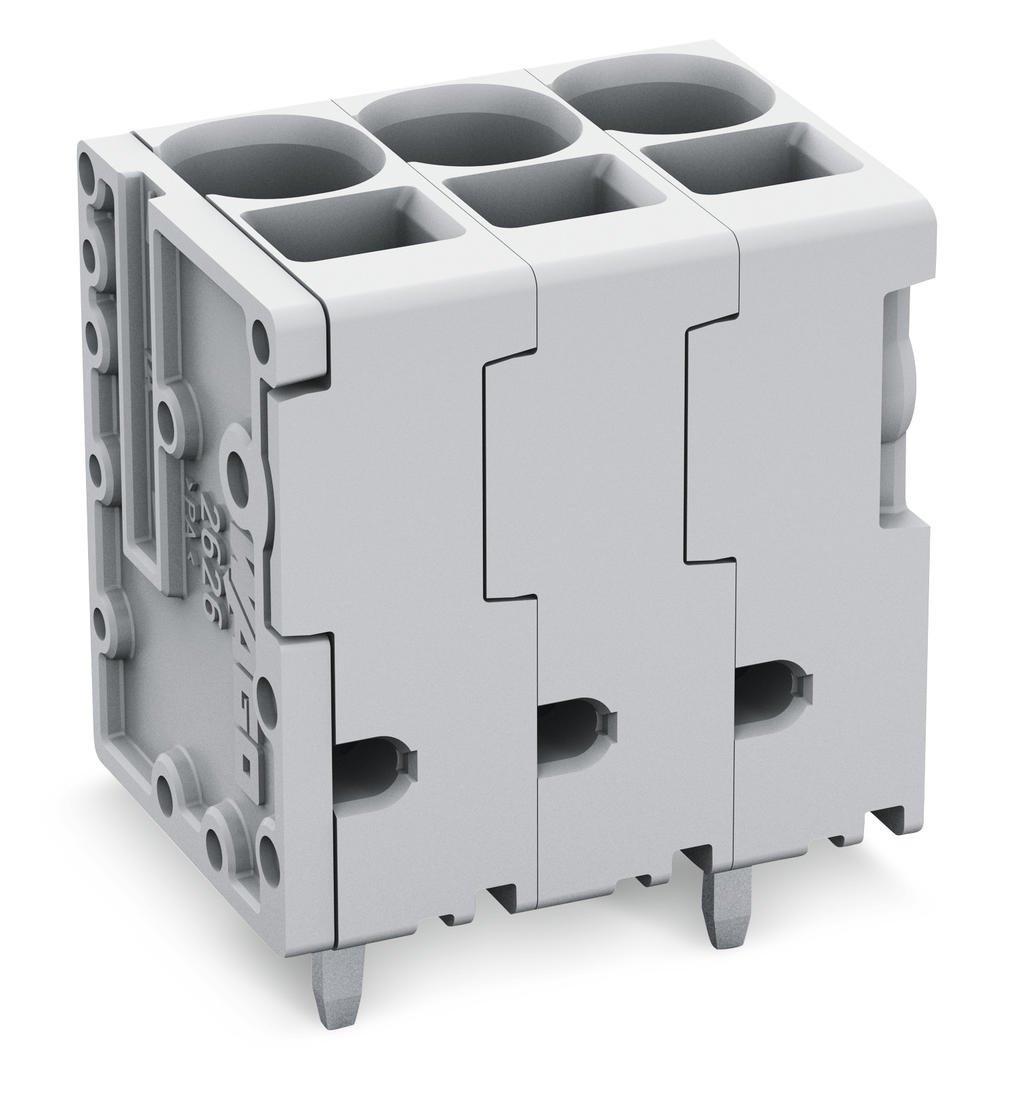

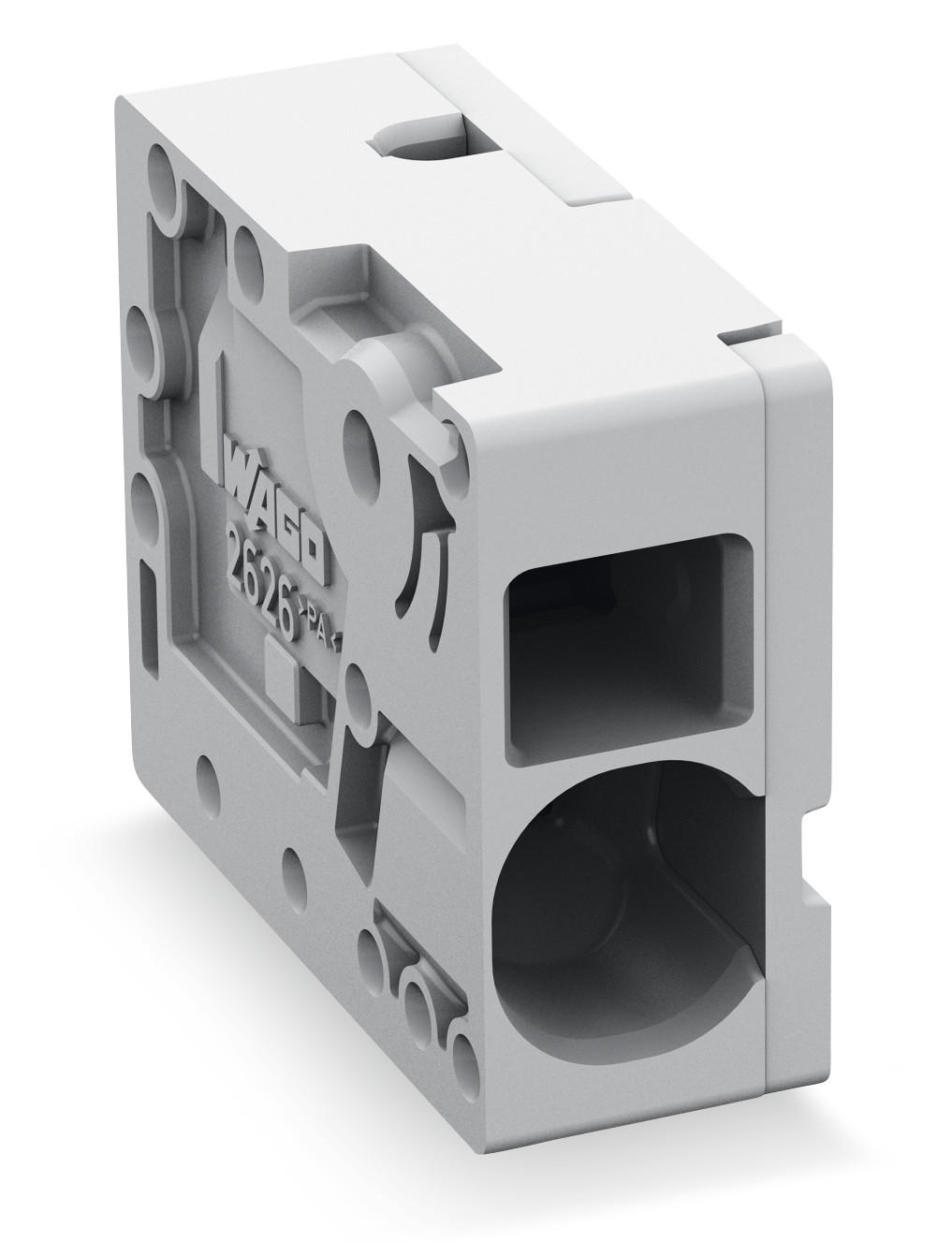

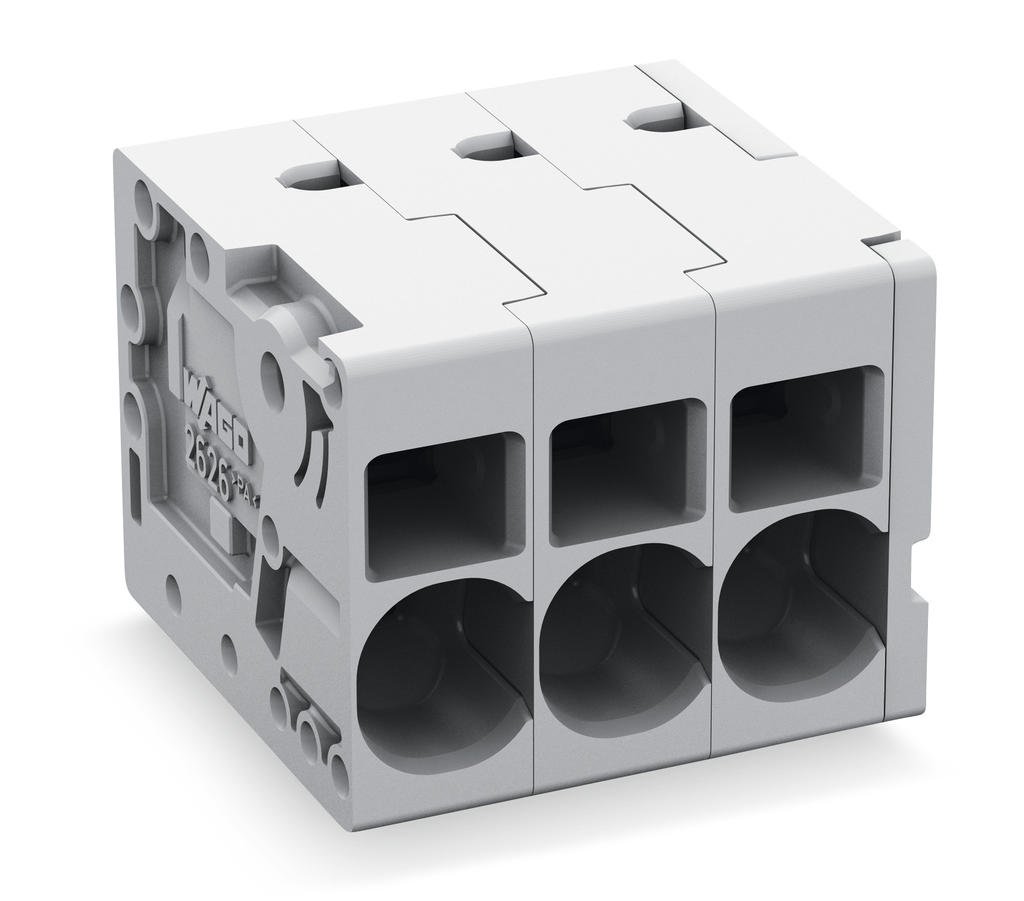

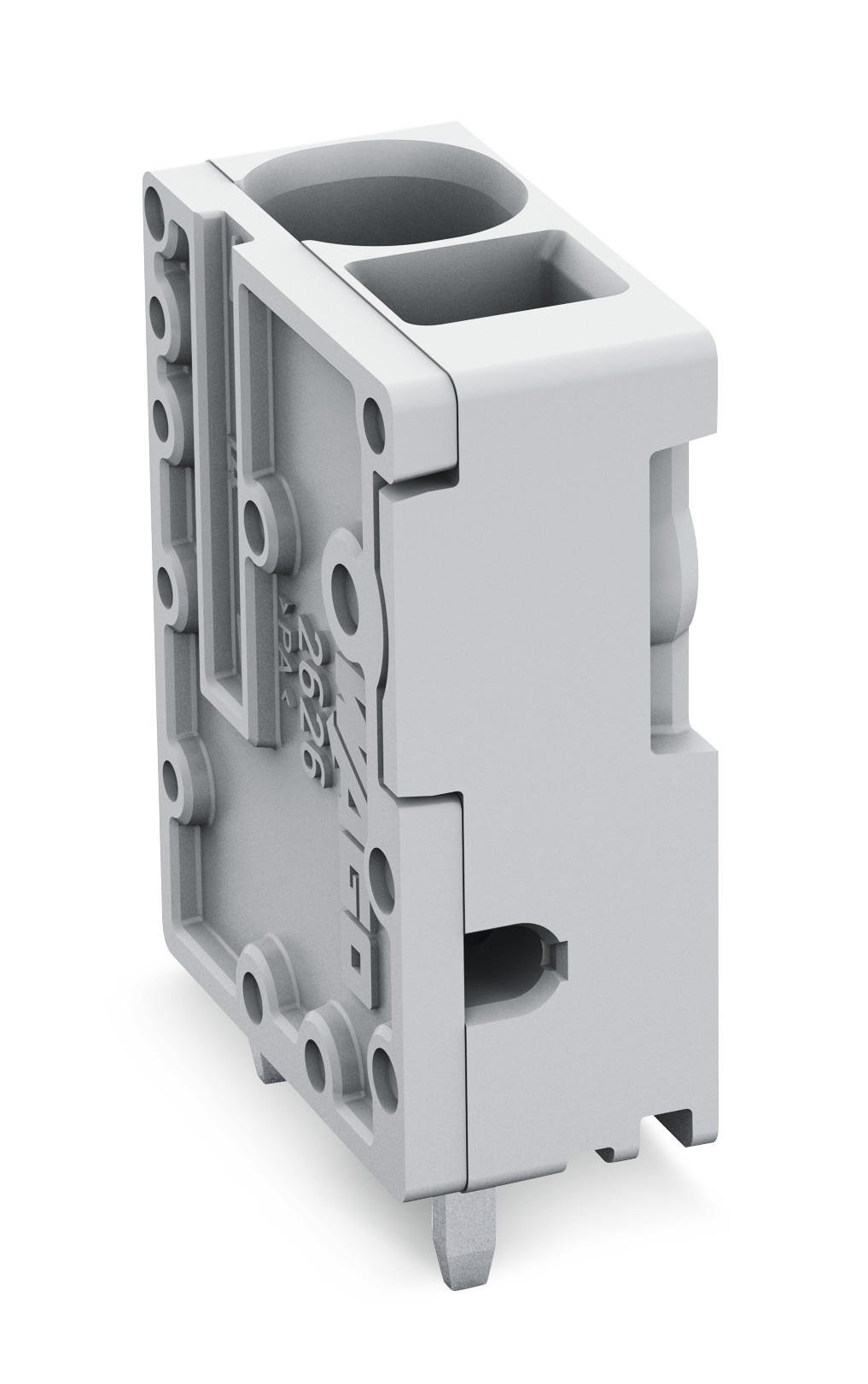

Параметры

Parameters / Models	2626-1101	2626-1102/020-000	2626-1103/020-000	2626-1103/020-004	2626-1104/020-000	2626-1104/020-004	2626-1105/020-000	2626-1105/020-004	2626-1106/020-000	2626-1107/020-000	2626-1108/020-000	2626-1109/020-000	2626-1110/020-000	2626-1111/020-000	2626-1112/020-000	2626-3101	2626-3102	2626-3102/020-000	2626-3103	2626-3103/020-000	2626-3104	2626-3104/020-000	2626-3105/020-000	2626-3105/020-004	2626-3106/020-000	2626-3107/020-000	2626-3108/020-000	2626-3109/020-000	2626-3110/020-000	2626-3111/020-000	2626-3112/020-000	2626-3452
Actuation type	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Clamping spring material	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	gray	gray	gray	black	gray	black	gray	black	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray	black	gray	gray	gray	gray	gray	gray	gray	gray
Conductor entry angle to the PCB, °																90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Contact material	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Габариты: глубина	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch
Drilled hole diameter (tolerance), мм	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)	2(+ 0.1)
Fine-stranded conductor	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²
Fine-stranded conductor with ferrule without plastic collar	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²	0.25 … 6 mm²
Fine-stranded conductor, with twin ferrule	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²	0.25 … 2.5 mm²
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4055143587068	4055143587075	4055143587099	4055143766043	4055143587105	4055143766029	4055143587129	4055143766012	4055143587174	4055143587198	4055143587204	4055143587211	4055143587228	4055143587242	4055143587259	4055143587266	4055143731744	4055143587273	4055143731751	4055143587303	4055143731768	4055143587327	4055143587334	4055143646413	4055143587341	4055143587358	4055143587365	4055143587372	4055143587389	4055143587396	4055143587402	4055143686839
Height	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	23.6 mm / 0.929 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch	28.2 mm / 1.11 inch
Height from the surface	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	19.6 mm / 0.772 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch	24.2 mm / 0.953 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C
Material group	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Number of Poles	1	2	3	3	4	4	5	5	6	7	8	9	10	11	12	1	2	2	3	3	4	4	5	5	6	7	8	9	10	11	12	2
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of solder pins per potential	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	2	2	1	2	1	2	1	1	1	1	1	1	1	1	1	1	1
PCB contact	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT
Packaging type				BOX		BOX		BOX									BOX		BOX		BOX											BOX
Pin spacing	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)	7.5 mm (0.295 inch)
Rated current, A	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41	41
Rated impulse voltage (II / 2), kV	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	6	8	6	8	6	8	8	8	8	8	8	8	8	8	8	8
Rated impulse voltage (III / 2), kV	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	6	8	6	8	6	8	8	8	8	8	8	8	8	8	8	8
Rated impulse voltage (III / 3), kV	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	6	8	6	8	6	8	8	8	8	8	8	8	8	8	8	8
Rated voltage (II / 2), В	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Rated voltage (III / 2), В	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	630	1000	630	1000	630	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Rated voltage (III / 3), В	800	800	800	800	800	800	800	800	800	800	800	800	800	800	800	800	630	800	630	800	630	800	800	800	800	800	800	800	800	800	800	1000
Solder pin arrangement	within the terminal block, in line	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	within the terminal block, in line	over the entire terminal strip, in line	over the entire terminal strip, staggered	over the entire terminal strip, in line	over the entire terminal strip, staggered	over the entire terminal strip, in line	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, staggered	over the entire terminal strip, in line
Solder pin dimensions	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm	1.5 x 1 mm
Solder pin length, мм	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Solid conductor	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG	0.2 … 10 mm² / 24 … 8 AWG
Strip length	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch	13 … 15 mm / 0.51 … 0.59 Inch
Total number of connection points	1	2	3	3	4	4	5	5	6	7	8	9	10	11	12	1	2	2	3	3	4	4	5	5	6	7	8	9	10	11	12	2
Total number of potentials	1	2	3	3	4	4	5	5	6	7	8	9	10	11	12	1	2	2	3	3	4	4	5	5	6	7	8	9	10	11	12	2
Type of mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting	Feed-through mounting
Вес, г	4.634	8.288	12.142	12.142	15.936	15.936	19.79	19.79	23.584	27.438	31.232	35.086	38.88	42.734	46.528	4.514	8.428	8.038	12.342	11.742	16.256	15.476	19.18	19.18	22.914	26.618	30.352	34.056	37.79	41.494	45.228	10.648
Ширина	9.3 mm / 0.366 inch	16.8 mm / 0.661 inch	24.3 mm / 0.957 inch	24.3 mm / 0.957 inch	31.8 mm / 1.252 inch	31.8 mm / 1.252 inch	39.3 mm / 1.547 inch	39.3 mm / 1.547 inch	46.8 mm / 1.843 inch	54.3 mm / 2.138 inch	61.8 mm / 2.433 inch	69.3 mm / 2.728 inch	76.8 mm / 3.024 inch	84.3 mm / 3.319 inch	91.8 mm / 3.614 inch	9.3 mm / 0.366 inch	16.8 mm / 0.661 inch	16.8 mm / 0.661 inch	24.3 mm / 0.957 inch	24.3 mm / 0.957 inch	31.8 mm / 1.252 inch	31.8 mm / 1.252 inch	39.3 mm / 1.547 inch	39.3 mm / 1.547 inch	46.8 mm / 1.843 inch	54.3 mm / 2.138 inch	61.8 mm / 2.433 inch	69.3 mm / 2.728 inch	76.8 mm / 3.024 inch	84.3 mm / 3.319 inch	91.8 mm / 3.614 inch	16.8 mm / 0.661 inch
