Datasheet Wago 2716-202 — Даташит

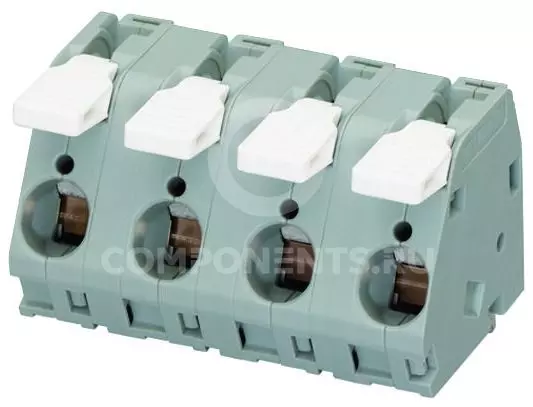

Клеммная колодка для печатной платы; рычаг; 16 мм²; Шаг контактов 15 мм; 2-полюсный; CAGE CLAMP
Купить 2716-202 на РадиоЛоцман.Цены — от 216 до 1 081 ₽ 10 предложений от 5 поставщиков Клеммная колодка типа провод к плате, 15 мм, 2 вывод(-ов), 16 AWG, 6 AWG, 16 мм², Зажим | |||
| 2716-202 Wago | 216 ₽ | ||
| 2716-202 Wago | 971 ₽ | ||
| 2716-202 Wago | от 1 081 ₽ | ||
| 2716-202 Wago | по запросу | ||
Параметры
| Actuation type | Lever |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Цвет | gray |
| Conductor entry angle to the PCB | 30 ° |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Country of origin | PL |
| Габариты: глубина | 30 mm / 1.181 inch |
| Drilled hole diameter (tolerance) | 1.6(+ 0.1) мм |
| Fine-stranded conductor | 1.5 … 16 mm² / 16 … 6 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 1.5 … 10 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 1.5 … 10 mm² |
| Fire load | 0.365 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4045454739416 |
| Height | 33.3 mm / 1.311 inch |
| Height from the surface | 28.8 mm / 1.134 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 2 |
| Number of connection types | 1 |
| Number of levels | 1 |
| Number of solder pins per potential | 4 |
| PCB contact | THT |
| Pin spacing | 15 mm (0.591 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 76 A |
| Rated impulse voltage (II / 2) | 8 kV |
| Rated impulse voltage (III / 2) | 8 kV |
| Rated impulse voltage (III / 3) | 8 kV |
| Rated voltage (II / 2) | 1000 В |
| Rated voltage (III / 2) | 1000 В |
| Rated voltage (III / 3) | 800 В |
| Solder pin arrangement | over the entire terminal strip, in line |
| Solder pin dimensions | 0.95 x 1.2 mm |
| Solder pin length | 4.5 мм |
| Solid conductor | 1.5 … 16 mm² / 16 … 6 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 Inch |
| Total number of connection points | 2 |
| Total number of potentials | 2 |
| Вес | 19.96 г |
| Ширина | 26.5 mm / 1.043 inch |
Модельный ряд
Серия: 2716 (29)
Классификация производителя
- PCB Interconnect
