Datasheet Wago 730 — Даташит

Производитель	Wago
Серия	730

Цены

Купить 730-103 на РадиоЛоцман.Цены — от 297 до 503 ₽ 730-103, Розетка 3-конт., автозачистка провода, оранжевая
AiPCBA Весь мир	730-103 Wago	297 ₽	Купить
Амарид-Электро Россия	730-103 Wago Оф. дистрибьютор	503 ₽	Купить
Augswan Весь мир	730-103 Wago	по запросу	Купить
ЭлектроПласт Россия	M39012/73-0103	по запросу	Купить

Подробное описание

Параметры

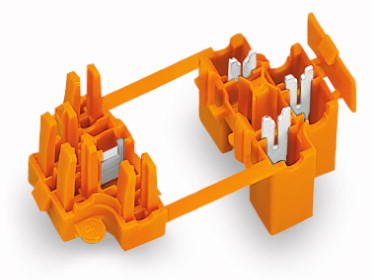

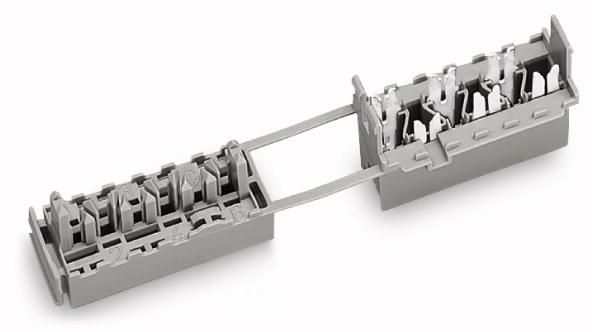

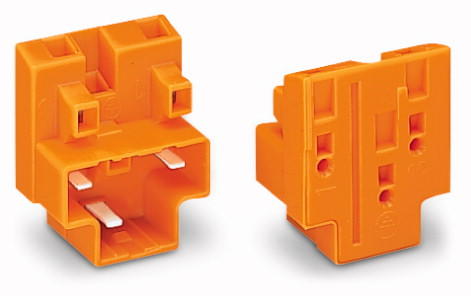

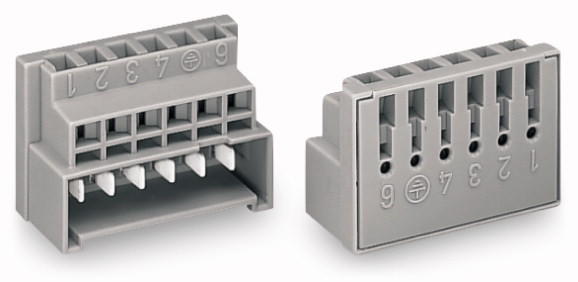

Parameters / Models	730-103	730-106	730-113	730-116	730-123	730-126
Actuation type			Operating tool	Operating tool
Clamping spring material	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Цвет	orange	gray	orange	gray	orange	gray
Connection technology	IDC	IDC	CAGE CLAMP®	CAGE CLAMP®	IDC	IDC
Connector connection type	for conductors	for conductors	for conductors	for conductors	for conductors	for conductors
Contact material	Brass	Brass	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Brass	Brass
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Contact type (pluggable connector)	Female connector/socket	Female connector/socket	Male connector/plug	Male connector/plug	Female connector/socket	Female connector/socket
Country of origin	CN	DE	DE	DE		DE

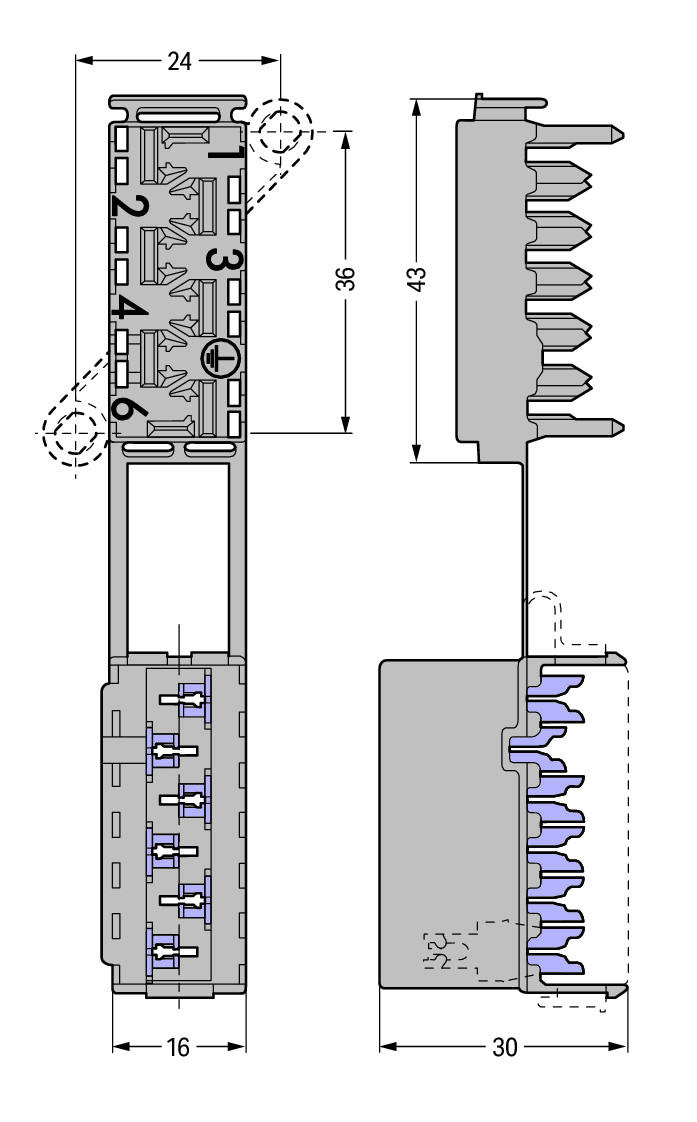

Габариты: глубина	23 mm / 0.906 inch	30 mm / 1.181 inch	22.5 mm / 0.886 inch	30 mm / 1.181 inch	23 mm / 0.906 inch	30 mm / 1.181 inch
Fine-stranded conductor	0.75 … 1.5 mm² / 18 … 16 AWG	0.75 … 1.5 mm² / 18 … 16 AWG	0.08 … 2.5 mm² / 28 … 14 AWG	0.08 … 2.5 mm² / 28 … 14 AWG	0.75 … 1.5 mm² / 18 … 16 AWG	0.75 … 1.5 mm² / 18 … 16 AWG
Fine-stranded conductor with ferrule with plastic collar			0.25 … 1.5 mm²	0.25 … 1.5 mm²
Fine-stranded conductor with ferrule without plastic collar			0.25 … 2.5 mm²	0.25 … 2.5 mm²
Fire load, MJ	0.169	0.273	0.214	0.292	0.169	0.273
Flammability class per UL94	V0	V0	V0	V0	V0	V0
GTIN	4050821429715	4044918253444	4044918508988	4044918524520	4044918600637	4044918253468
Height	27 mm / 1.063 inch	16 mm / 0.63 inch	35.5 mm / 1.398 inch	29 mm / 1.142 inch	27 mm / 1.063 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +85 °C	-60 … +85 °C	-60 … +85 °C	-60 … +85 °C	-60 … +85 °C	-60 … +85 °C
Material group	I	I	I	I	I	I

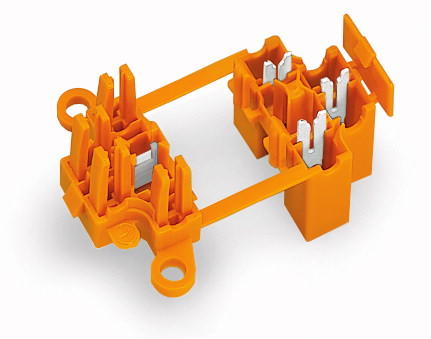

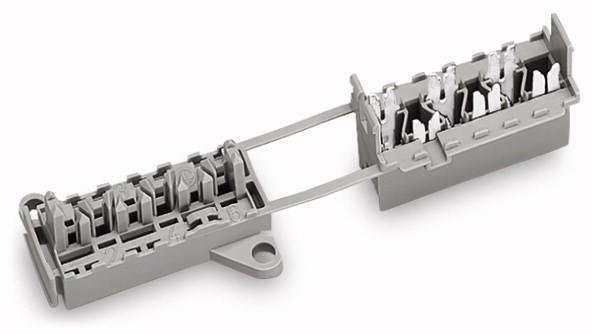

Mounting type					Mounting flange	Mounting flange
Number of Poles	3	6	3	6	3	6
Number of connection types	1	1	1	1	1	1
Number of levels	1	1	1	1	1	1
Packaging type			bag	bag
Product Group	13 (Misc. Multi Conn. System)	13 (Misc. Multi Conn. System)	13 (Misc. Multi Conn. System)			13 (Misc. Multi Conn. System)
Rated current, A	10	10	10	10	10	10
Rated impulse voltage (II / 2), kV	6	6	6	6	6	6
Rated impulse voltage (III / 2), kV	6	6	6	6	6	6
Rated impulse voltage (III / 3), kV	6	6	6	6	6	6
Rated voltage (II / 2), В	1000	1000	1000	1000	1000	1000
Rated voltage (III / 2), В	630	630	630	630	630	630
Rated voltage (III / 3), В	500	500	500	500	500	500
Solid conductor			0.08 … 2.5 mm² / 28 … 14 AWG	0.08 … 2.5 mm² / 28 … 14 AWG
Strip length			8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch
Total number of potentials	3	6	3	6	3	6
Вес, г	7.064	12.3	9.759	16.744	7.064	11.728
Ширина	26.5 mm / 1.043 inch	43 mm / 1.693 inch	30 mm / 1.181 inch	43 mm / 1.693 inch	26.5 mm / 1.043 inch	43 mm / 1.693 inch

Модельный ряд

Классификация производителя

• Pluggable Connection Systems
