Datasheet Wago 770-103 — Даташит
Разъем; с корпусом разгрузки натяжения; 3-пол.; Код. A
Цены
 Купить 770-103 на РадиоЛоцман.Цены — от 58 до 84 912 ₽34 предложений от 22 поставщиков ✔ Стол для чистой посуды COMENDA LC 770103 1200 L купить в интернет-магазине Ресторан Комплект ✔ Цена, характеристики, сравнение, фото, руководство.... | |||
| 770103-1 TE Connectivity | 58 ₽ | ||
| 770103-1 TE Connectivity | 61 ₽ | ||
| 770103 | 57 008 ₽ | ||
| Стол для чистой посуды COMENDA LC 770103 1200 L | 84 182 ₽ | ||
Подробное описание
Параметры
| Actuation type | Operating tool Push-in |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Coding | A |
| Цвет | black |
| Connectable sheathed cable diameter | 8 … 11.5 mm |
| Connection technology | Push-in CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact material | Copper or copper alloy, surface-treated |
| Contact type (pluggable connector) | Female connector/socket |
| Country of origin | DE |
| Degree of protection | IP 2xC |

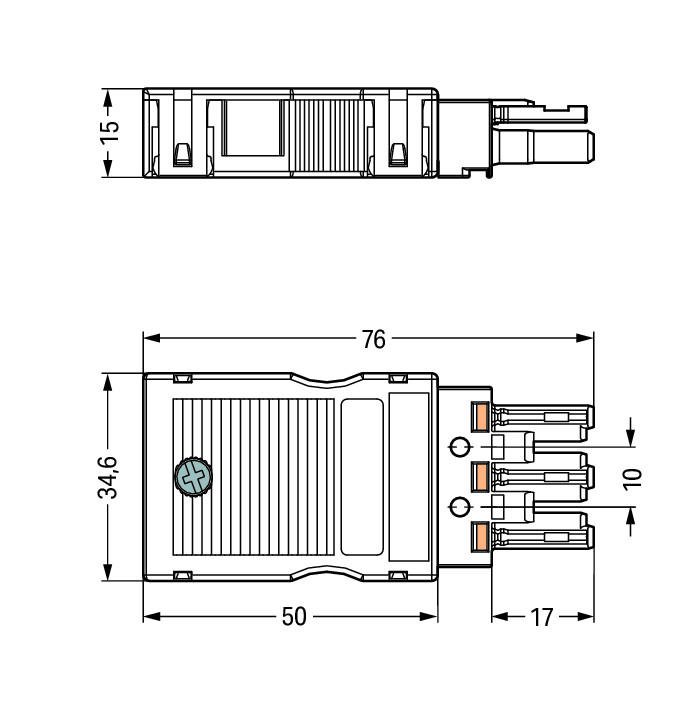

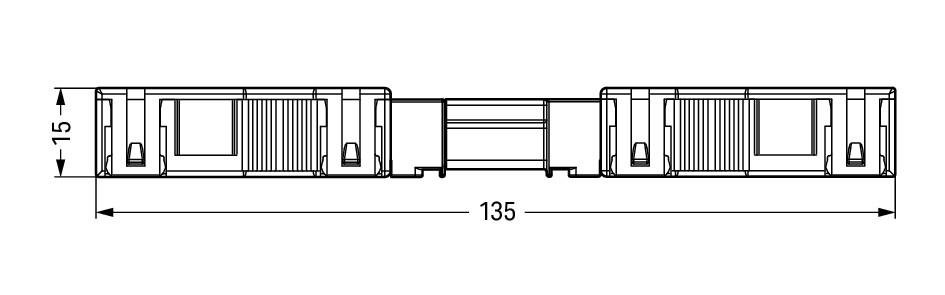

| Габариты: глубина | 75.9 mm / 2.988 inch |
| Fine-stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² / 20 … 16 AWG |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² / 20 … 14 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 1.5 mm² / 16 AWG |
| Fire load | 0.421 MJ |
| Flammability class per UL94 | V0 |
| GTIN | 4044918252096 |
| Height | 15 mm / 0.591 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Locking lever | нет |
| Locking of plug-in connection | locking lever |
| Marking | L ⏚ N |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Mismating protection | Yes |
| Nominal cross section | 4 mm² |
| Note (strip length) | see also packaging or instructions |
| Number of Poles | 3 |
| Number of test slots | 3 |
| Pin spacing | 10 mm (0.394 inch) |
| Potential marking | L ⏚ N |
| Product Group | 20 (WINSTA) |
| Rated current | 25 A |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (III / 3) | 250 В |
| Retention force of a plug-in connection | when locked: > 80N |
| Solid conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Solid conductor, push-in termination | 1.5 … 4 mm² / 16 … 12 AWG |
| Strain relief | Strain relief housing |
| Strain relief color | black |
| Stranded conductor | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Strip length | 55 мм |
| Surrounding air (operating) temperature | -35 … 85 °C |
| Total number of connection points | 6 |
| Total number of potentials | 3 |
| Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
| Вес | 20 г |
| Ширина | 34.6 mm / 1.362 inch |
