Datasheet Wago 772 — Даташит

Производитель	Wago
Серия	772

Цены

Подробное описание

Параметры

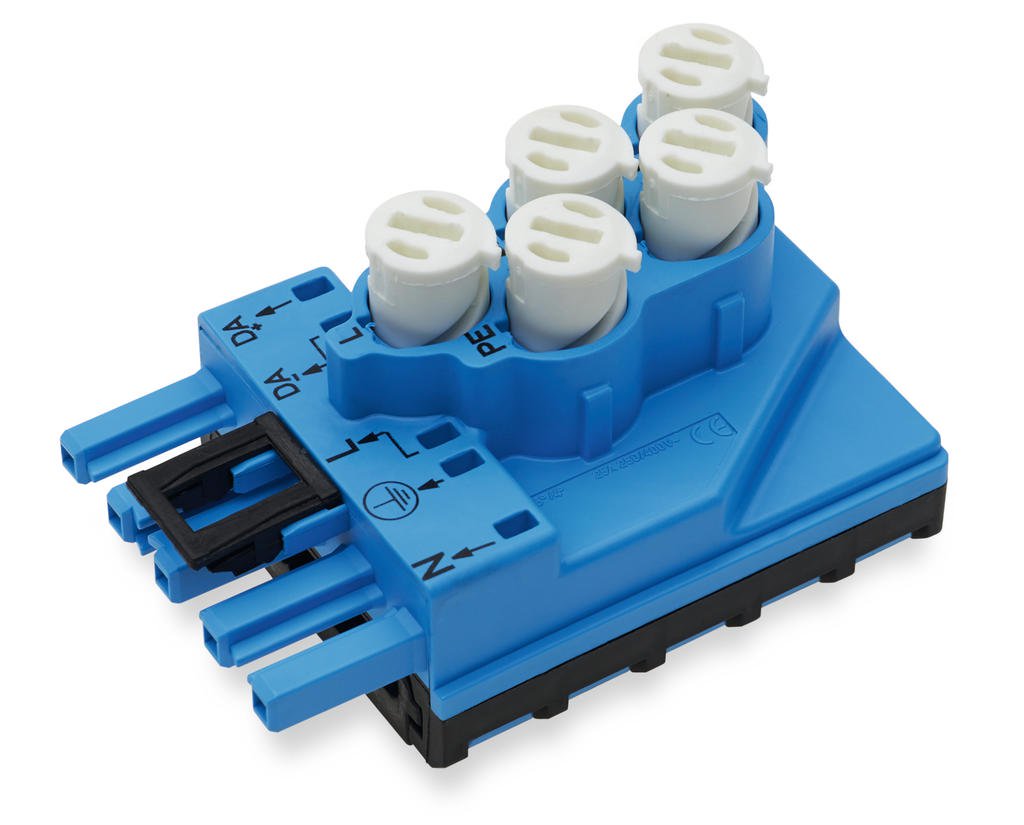

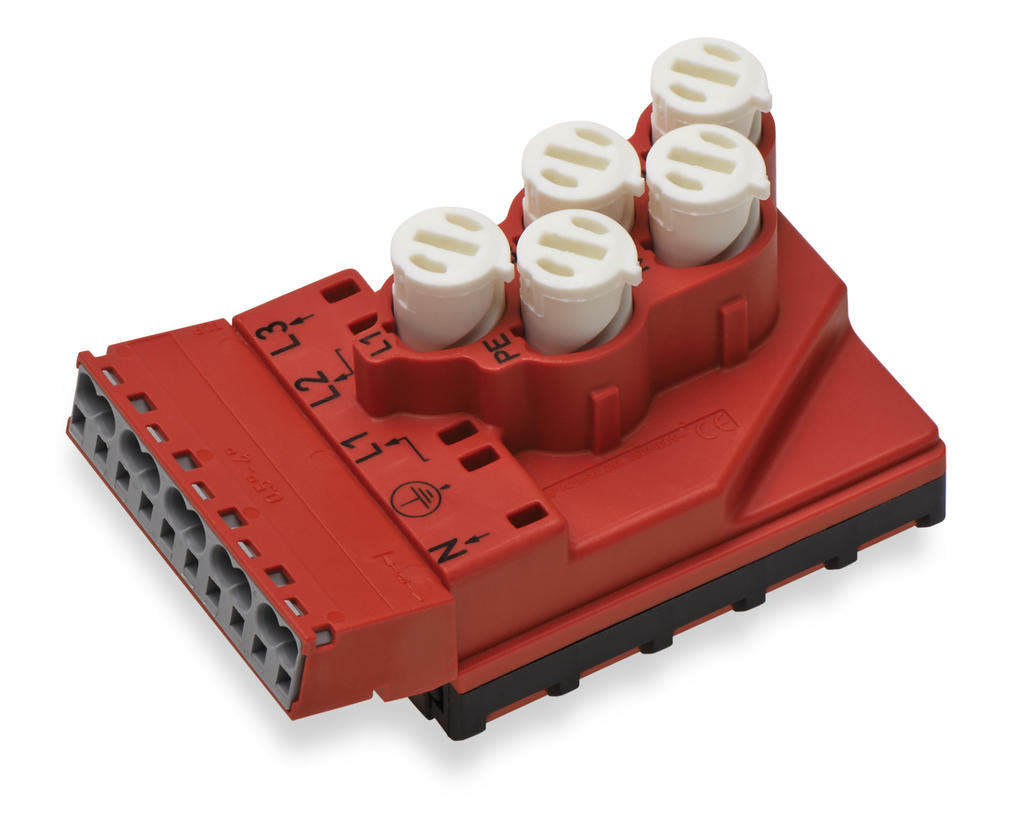

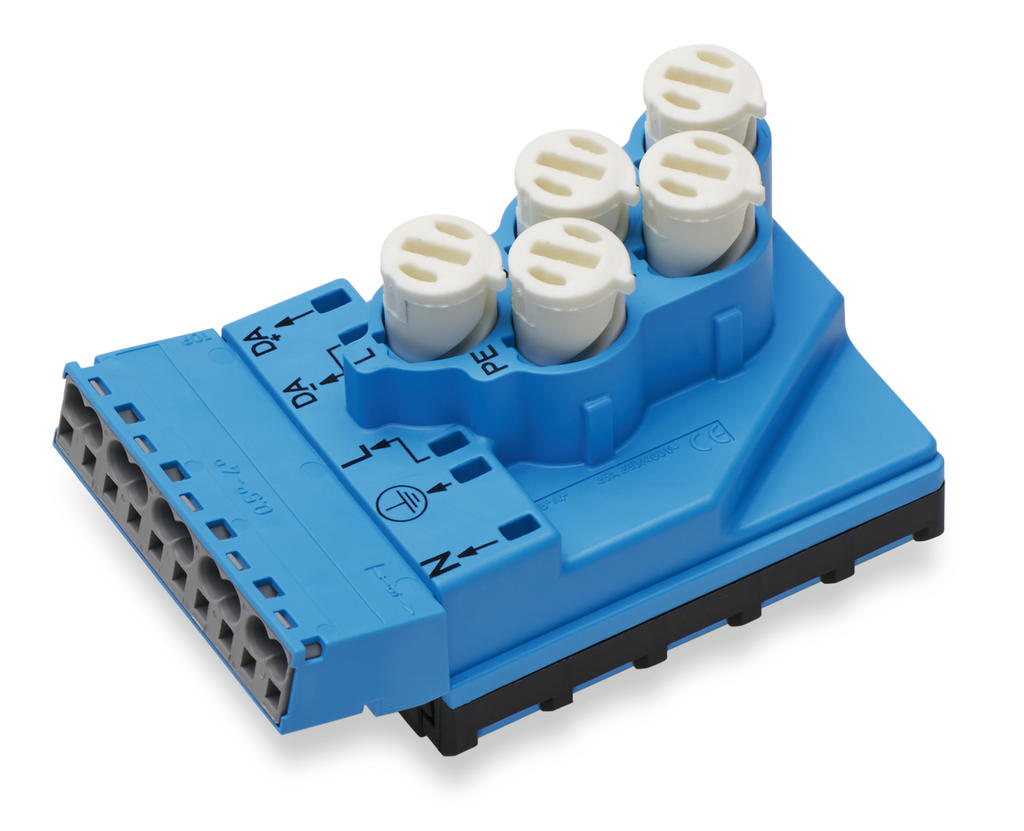

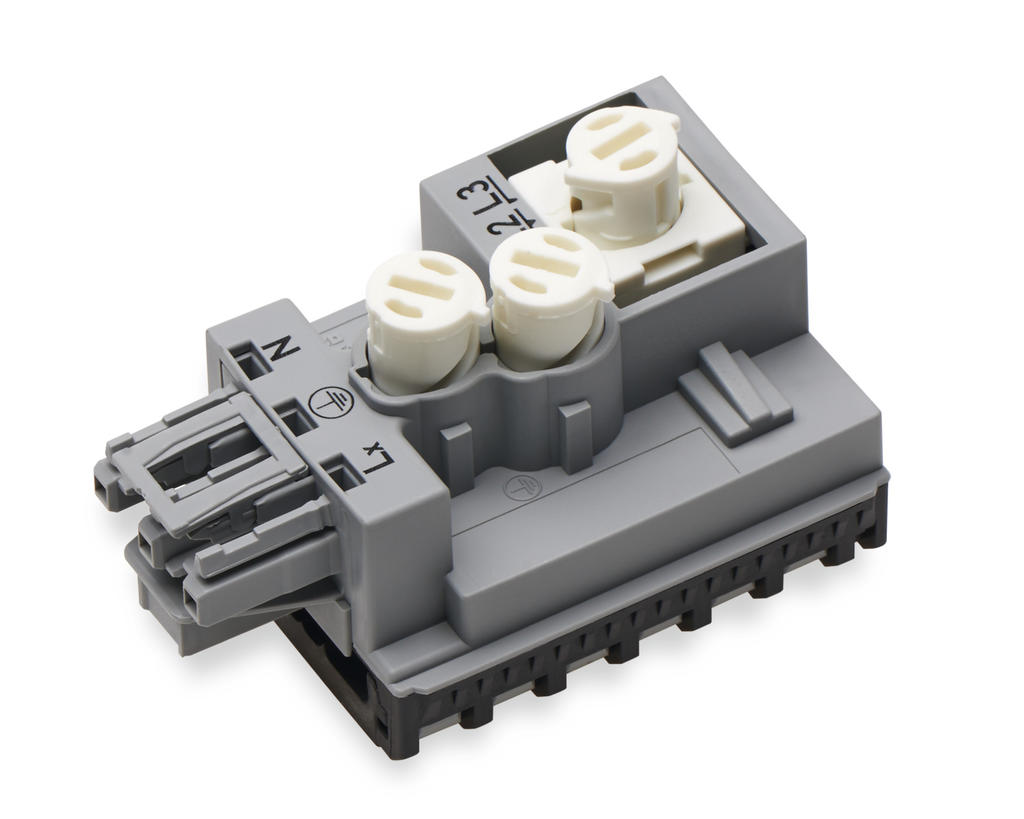

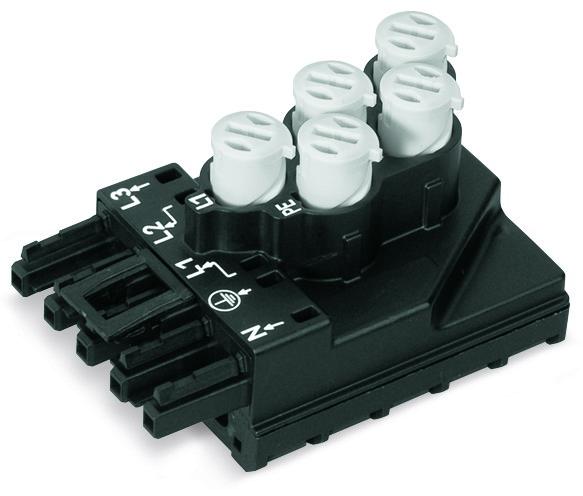

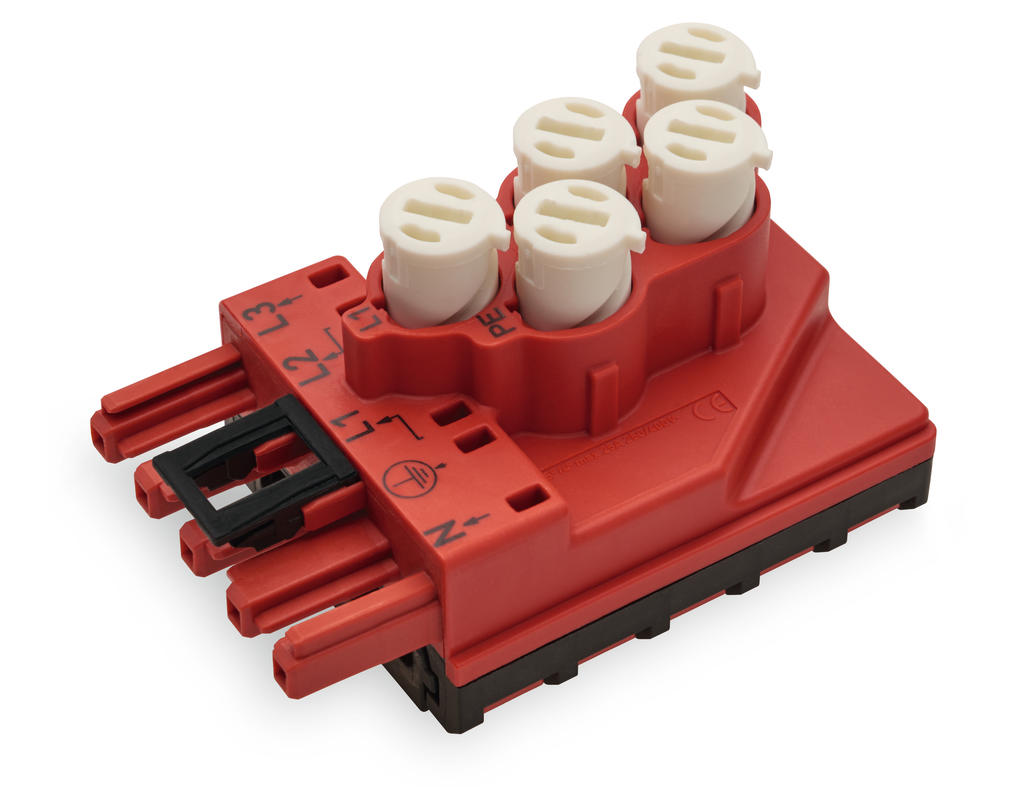

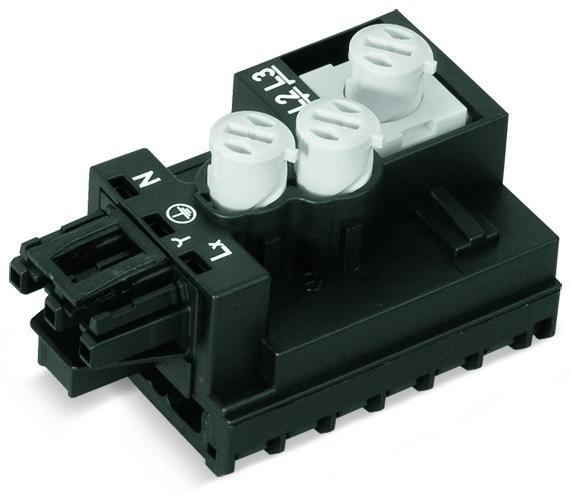

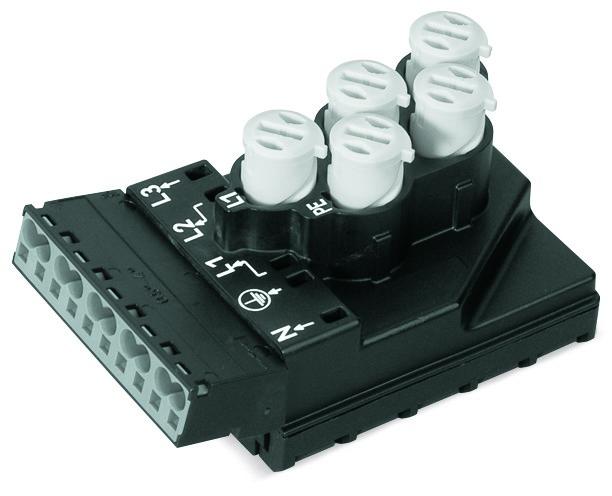

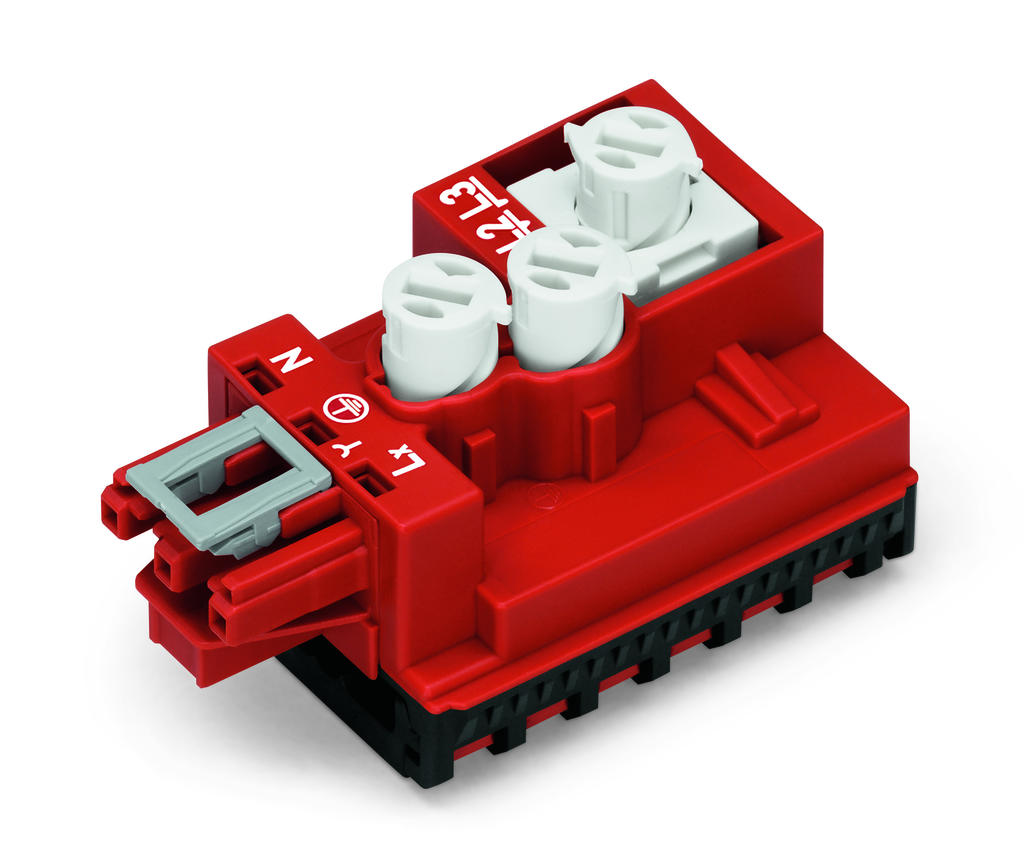

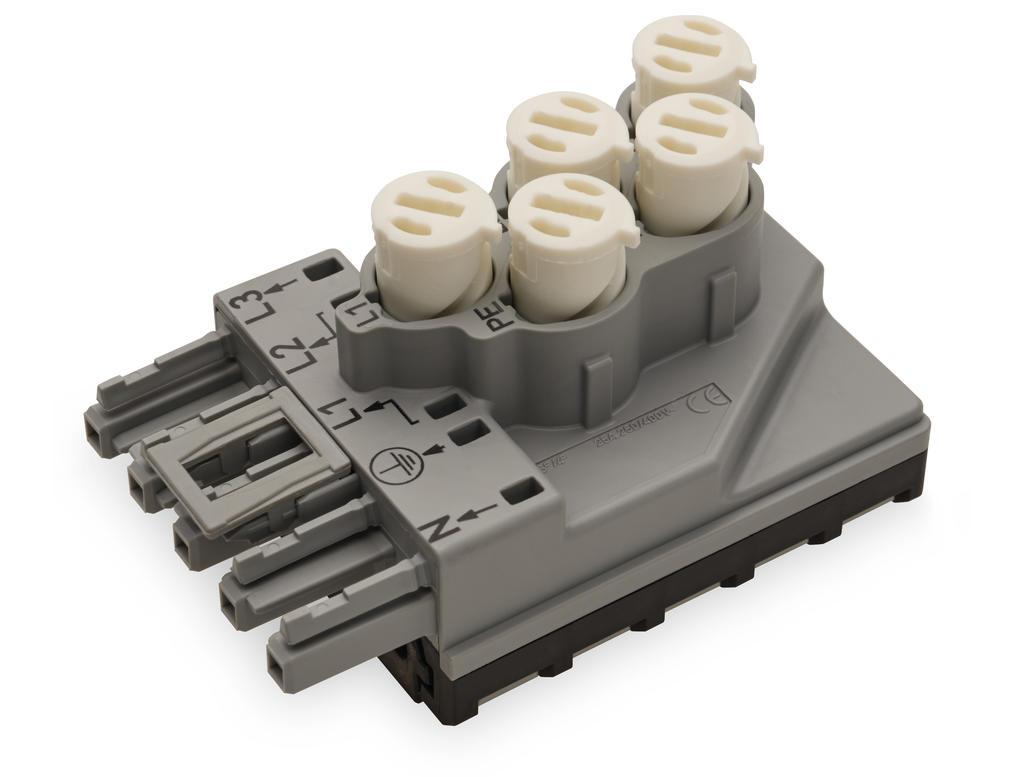

Parameters / Models	772-260	772-261	772-262	772-263	772-264/060-000	772-265/060-000	772-266/060-000	772-267	772-268	772-269	772-271	772-272
Actuation type		Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool	Operating tool
Coding			A	A		B	B		P	P		I
Цвет	black	black	black	black	gray	gray	gray	red	red	red	blue	blue
Connection technology		Push-in CAGE CLAMP®	IDC	IDC	Push-in CAGE CLAMP®	IDC	IDC	Push-in CAGE CLAMP®	IDC	IDC	Push-in CAGE CLAMP®	IDC
Connection technology 2		IDC connection			IDC connection			IDC connection			IDC connection
Contact material		Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated	Copper or copper alloy, surface-treated
Country of origin	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Degree of protection		IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20

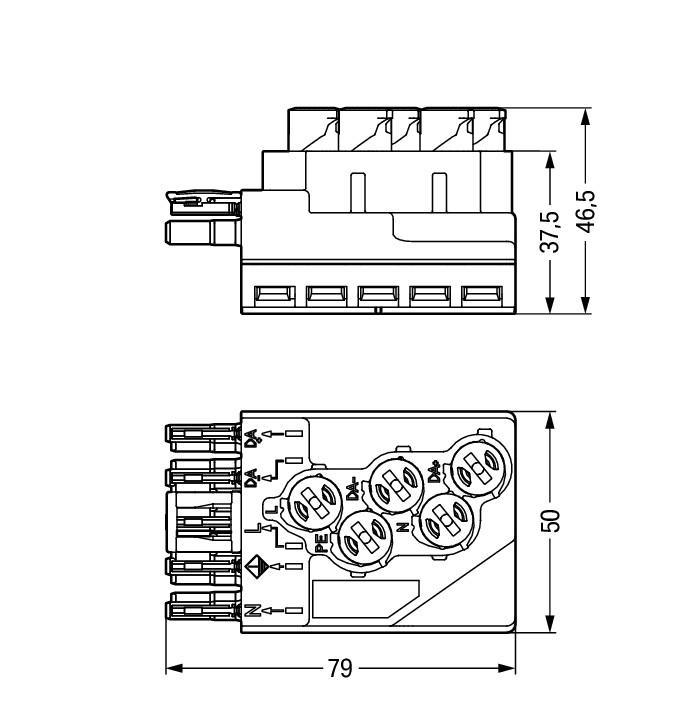

Габариты: глубина		82.5 mm / 3.248 inch	79 mm / 3.11 inch	79 mm / 3.11 inch	82.5 mm / 3.248 inch	79 mm / 3.11 inch	79 mm / 3.11 inch	82.5 mm / 3.248 inch	79 mm / 3.11 inch	79 mm / 3.11 inch	82.5 mm / 3.248 inch	79 mm / 3.11 inch
Fine-stranded conductor		0.5 … 4 mm² / 20 … 12 AWG			0.5 … 4 mm² / 20 … 12 AWG			0.5 … 4 mm² / 20 … 12 AWG			0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor with ferrule with plastic collar		0.25 … 1.5 mm² / 20 … 16 AWG			0.25 … 1.5 mm² / 20 … 16 AWG			0.25 … 1.5 mm² / 20 … 16 AWG			0.25 … 1.5 mm² / 20 … 16 AWG
Fine-stranded conductor with ferrule without plastic collar		0.25 … 2.5 mm² / 20 … 14 AWG			0.25 … 2.5 mm² / 20 … 14 AWG			0.25 … 2.5 mm² / 20 … 14 AWG			0.25 … 2.5 mm² / 20 … 14 AWG
Fine-stranded conductor with ferrule, push-in termination, from		1.5 mm² / 16 AWG			1.5 mm² / 16 AWG			1.5 mm² / 16 AWG			1.5 mm² / 16 AWG
Fire load, MJ	0.346	2.221	1.772	1.843	2.221	1.756	1.845	2.221	1.762	1.833	2.288	1.847
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
GTIN	4045454543983	4045454061999	4045454062002	4045454062019	4050821585770	4050821585787	4050821585794	4045454599515	4045454599522	4045454599539	4055143174671	4055143174688
Height		46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch	46.5 mm / 1.831 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Locking of plug-in connection			locking lever	locking lever		locking lever	locking lever		locking lever	locking lever		locking lever
Marking		N ⏚ L1 L2 L3	N ⏚ L1 L2 L3	L ⏚ N	N ⏚ L1 L2 L3	N ⏚ L1 L2 L3	L ⏚ N	N ⏚ L1 L2 L3	N ⏚ L1 L2 L3	L ⏚ N	N ⏚ L DA- DA+	N ⏚ L DA- DA+
Mating force of a plug-in connection		approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)	approx. 30–70N (depending on number of poles)
Mismating protection		Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes

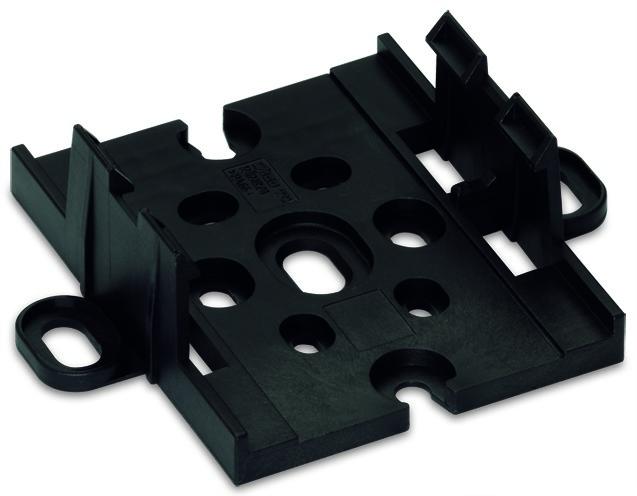

Mounting type	Screw mounting
Nominal cross section		4 mm²			4 mm²			4 mm²			4 mm²
Number of Poles		5	5	3	5	5	3	5	5	3	5	5
Packaging type											not packed	not packed
Potential marking		N ⏚ L1 L2 L3	N ⏚ L1 L2 L3	L ⏚ N	N ⏚ L1 L2 L3	N ⏚ L1 L2 L3	L ⏚ N	N ⏚ L1 L2 L3	N ⏚ L1 L2 L3	L ⏚ N	N ⏚ L DA- DA+	N ⏚ L DA- DA+
Product Group	20 (WINSTA)	20 (WINSTA)	20 (WINSTA)	20 (WINSTA)				20 (WINSTA)	20 (WINSTA)	20 (WINSTA)	20 (WINSTA)	20 (WINSTA)
Rated current, A		25	25	25	25	25	25	25	25	25	25	25
Rated impulse voltage (III / 3), kV		6	6	6	6	6	6	6	6	6	6	6
Rated voltage (III / 3), В		400	400	400	400	400	400	400	400	400	400	400
Solid conductor		0.5 … 4 mm² / 20 … 12 AWG			0.5 … 4 mm² / 20 … 12 AWG			0.5 … 4 mm² / 20 … 12 AWG			0.5 … 4 mm² / 20 … 12 AWG
Solid conductor, push-in termination		1.5 … 4 mm² / 16 … 12 AWG			1.5 … 4 mm² / 16 … 12 AWG			1.5 … 4 mm² / 16 … 12 AWG			1.5 … 4 mm² / 16 … 12 AWG
Stranded conductor		0.5 … 2.5 mm² / 20 … 14 AWG			0.5 … 2.5 mm² / 20 … 14 AWG			0.5 … 2.5 mm² / 20 … 14 AWG			0.5 … 2.5 mm² / 20 … 14 AWG
Strip length		9 mm / 0.35 Inch			9 mm / 0.35 Inch			9 mm / 0.35 Inch			9 mm / 0.35 Inch
Surrounding air (operating) temperature	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C	-35 … 85 °C
Total number of connection points		10			10			10			10
Total number of potentials		5	5	3	5	5	3	5	5	3	5	5
Unmating force of a plug-in connection		when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N	when unlocked: approx. 15–20N
Вес, г	11.6	95.013	76.355	70.052	94.953	75.82	70.127	94.953	76.025	69.722	94.953	82
Ширина		50 mm / 1.969 inch	50 mm / 1.969 inch	49 mm / 1.929 inch	50 mm / 1.969 inch	50 mm / 1.969 inch	49 mm / 1.929 inch	50 mm / 1.969 inch	50 mm / 1.969 inch	49 mm / 1.929 inch	50 mm / 1.969 inch	50 mm / 1.969 inch

Модельный ряд

Классификация производителя

• Pluggable Connection Systems
