Datasheet Wago 896 — Даташит
Производитель | Wago |
Серия | 896 |
Цены

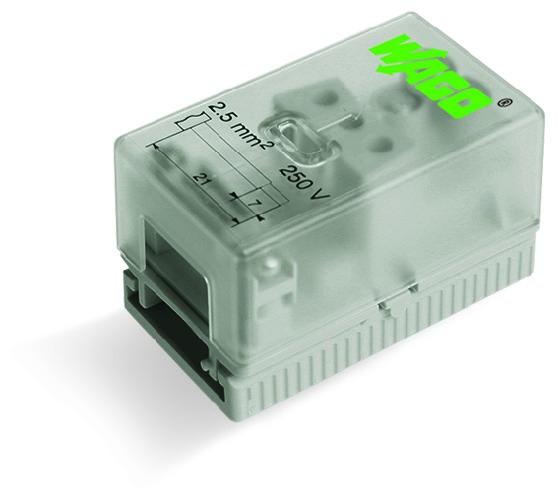

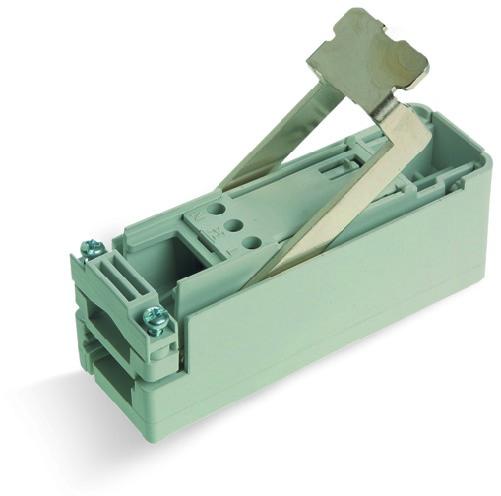

Купить 896-231 на РадиоЛоцман.Цены — от 101 до 3 223 ₽ Подводящий модуль с винтовым вводом для плоского кабеля 3 х 2,5 мм | |||
896-231 Wago | 101 ₽ | ||
896-231 Wago Оф. дистрибьютор | 3 223 ₽ |
Подробное описание
Параметры
Parameters / Models | 896-231 | 896-232 | 896-233 | 896-234 |
---|---|---|---|---|
Actuation type | Operating tool | Operating tool | ||
Coding | A | A | ||
Цвет | gray | gray | black | white |
Connection technology | Screw clamp connection | Screw clamp connection | ||
Connection technology 2 | IDC connection | IDC connection | ||
Contact material | Copper or copper alloy, surface-treated | Copper or copper alloy, surface-treated | Copper or copper alloy, surface-treated | Copper or copper alloy, surface-treated |
Country of origin | CH | CH | DE | DE |
Cross section of single conductor, mm² | 2.5 | 2.5 | ||
Degree of protection | IP20 | IP20 | IP20 | IP20 |

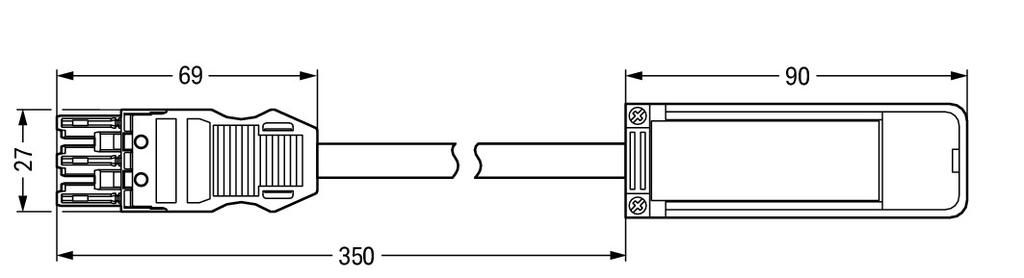

Габариты: глубина | 55 mm / 2.165 inch | 90 mm / 3.543 inch | ||
Durchmesser der Mantelleitung | 9.2 … 11.4 mm | 9.2 … 11.4 mm | ||
Fire load, MJ | 0.864 | 1.5 | 2.767 | 2.77 |
Flammability class per UL94 | V0 | V0 | V0 | V0 |
GTIN | 4045454004194 | 4045454004217 | 4045454004279 | 4045454154639 |
Ground function | with preceding GND contact | with preceding GND contact | ||
Height | 33 mm / 1.299 inch | 34 mm / 1.339 inch | ||
Insulating material | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) |
Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Locking of plug-in connection | locking lever | locking lever | ||
Marking | L ⏚ N | L ⏚ N | ||
Mating force of a plug-in connection | approx. 30–70N (depending on number of poles) | approx. 30–70N (depending on number of poles) | approx. 30 … 70 N (depending on pole number) | approx. 30 … 70 N (depending on pole number) |
Mismating protection | Yes | Yes | Yes | Yes |
Product Group | 20 (WINSTA) | 20 (WINSTA) | 20 (WINSTA) | 20 (WINSTA) |
Rated current, A | 24 | 24 | ||
Rated impulse voltage (III / 3), kV | 4 | 4 | ||
Rated voltage (III / 3), В | 250 | 250 | ||
Reaction to fire class per EN 50575 | Eca | Eca | ||
Retention force of a plug-in connection | when locked: > 80N | when locked: > 80N | ||
Surrounding air (operating) temperature | -35 … 85 °C | -35 … 85 °C | -35 … 85 °C | -35 … 85 °C |
Total length, m | 0.44 | 0.44 | ||
Total number of connection points | 3 | 3 | ||
Total number of potentials | 3 | 3 | ||
Unmating force of a plug-in connection | when unlocked: approx. 15–20N | when unlocked: approx. 15–20N | when unlocked: approx. 30 … 70 N (depending on pole number) | when unlocked: approx. 30 … 70 N (depending on pole number) |
Вес, г | 45 | 90 | 161.356 | 161.279 |
Ширина | 33 mm / 1.299 inch | 30 mm / 1.181 inch |
Модельный ряд
Классификация производителя
- Pluggable Connection Systems
