TCR5BM series
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic TCR5BM series
500 mA CMOS Ultra Low Dropout Regulator
The TCR5BM series are CMOS single-output voltage regulators with an
on/off control input, featuring ultra low dropout voltage, high PSRR, low
inrush current and fast load transient response.
A differentiating feature is the use of a secondary bias rail as a reference
voltage that allows ultra low dropout of 100 mV (Typ.) at IOUT = 500 mA (1.1
V output, VBIAS = 3.3 V).
These voltage regulators are available in fixed output voltages between 0.8
V and 3.6 V, and capable of driving up to 500 mA. Other features include
overcurrent protection, thermal shutdown, and Auto-discharge.

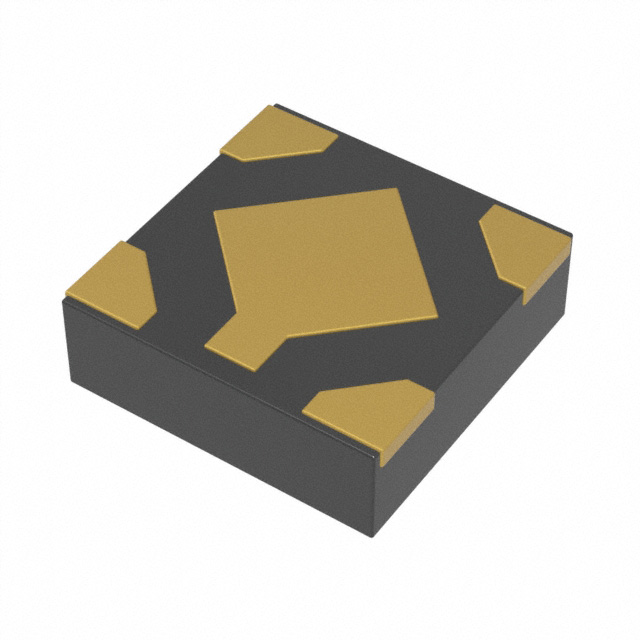

The TCR5BM series are offered in the ultra small plastic mold package
DFN5B (1.2 mm x 1.2 mm; t 0.38 mm).
As small ceramic input and output capacitors can be used with the
TCR5BM series, these devices are ideal for portable applications that require
high-density board assembly such as cellular phones. DFN5B
Weight : 1.4 mg (Typ.) Features
• Low dropout voltage
VDO = 100 mV (Typ.) at 1.1 V output, VBIAS = 3.3 V , IOUT = 500 mA • Low stand-by current (IBIAS(OFF) = 1 μA (Max) • Low quiescent bias current ( IBIAS(ON) = 19 μA (Typ.) at VBIAS = 5.3 V, IOUT = 0 mA ) • Wide range output voltage line up VOUT = 0.8 to 3.6 V • Overcurrent protection • Thermal shutdown • Inrush current reduction • Under voltage lockout (TCR5BMxxA products) • Auto-discharge • Pull down connection between CONTROL and GND • Ultra small package DFN5B (1.2 mm x 1.2 mm ; t 0.38 mm) Start of commercial production 2018-08 © 2018-2019
Toshiba Electronic Devices & Storage Corporation 1 2019-01-15 TCR5BM series
Absolute Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit Bias voltage VBIAS -0.3 to 6.0 V Input voltage VIN -0.3 to 6.0 V Control voltage VCT -0.3 to 6.0 V Output voltage VOUT -0.3 to VIN + 0.3 ≤ 6.0 V Power dissipation PD 600 Junction temperature Tj -40 to 150 °C Tstg −55 to 150 °C Storage temperature range Note: (Note 1) mW Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant …
