50 MHz to 4.0 GHz
RF/IF Gain Block
ADL5602 Data Sheet
FEATURES FUNCTIONAL BLOCK DIAGRAM
GND Fixed gain of 20 dB
Operation from 50 MHz to 4.0 GHz
Highest dynamic range gain block
Input/output internally matched to 50 Ω
Integrated bias control circuit
OIP3 of 42.0 dBm at 2.0 GHz
P1dB of 19.3 dBm at 2.0 GHz
Noise figure of 3.3 dB at 2.0 GHz
Single 5 V power supply
Low quiescent current of 89 mA

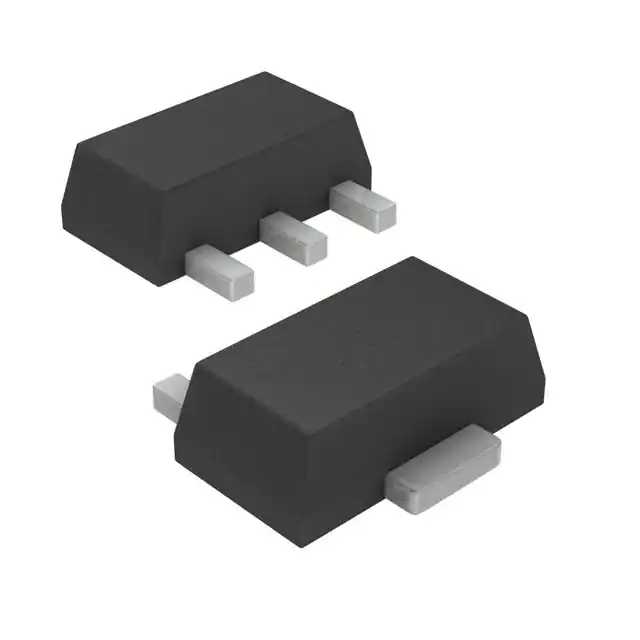

Thermally efficient SOT-89 package
ESD rating of ±1.5 kV (Class 1C) (2) ADL5602 1 2 3 RFIN GND RFOUT 08190-001 BIAS Figure 1. GENERAL DESCRIPTION
The ADL5602 is a broadband 20 dB linear amplifier that operates
at frequencies up to 4 GHz. The device can be used in a wide
variety of cellular, CATV, military, and instrumentation equipment. The ADL5602 is fabricated on an InGaP HBT process and has
an ESD rating of ±1.5 kV (Class 1C). The device is available in a
thermally efficient SOT-89 package. The ADL5602 provides the highest dynamic range available
from an internally matched gain block. This is accomplished
by providing extremely low noise figures and very high OIP3 …
