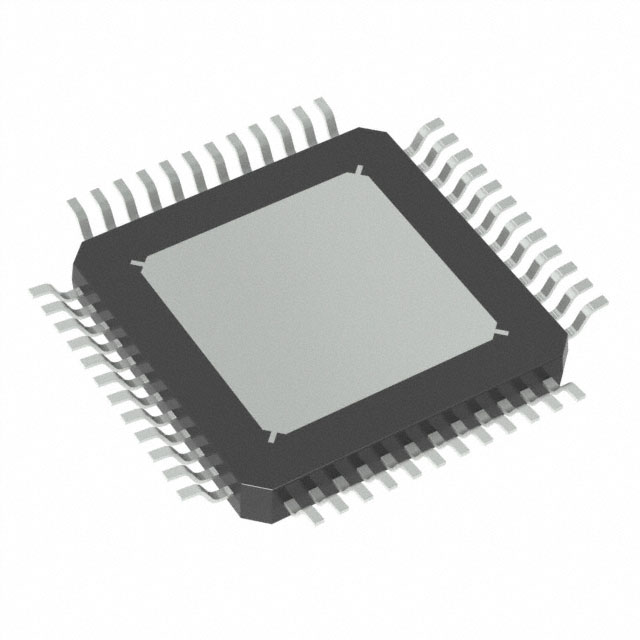

POWER DRIVER FOR STEPPER MOTORS INTEGRATED CIRCUITS TMC6200 DATASHEET
Universal high voltage BLDC/PMSM/Servo MOSFET 3-halfbridge gate-driver with in line motor current
sensing. External MOSFETs for up to 100A motor current. APPLICATIONS
PMSM FOC drives and BLDC motors
Industrial Drives
Factory Automation
Lab Automation
Robotics
CNC machines
Textile Machines
Pumps
Surveillance Cameras
Home Automation
Printers FEATURES AND BENEFITS DESCRIPTION 3-phase motors up to 100A coil current (external MOSFETs) The TMC6200 is a high-power gate-driver
for PMSM servo or BLDC motors. Using
six external MOSFETs and two or three
sense resistors, it integrates the full high
voltage part of a PMSM drive system for
12V, 24V or 48V, including in-line current
sense amplifiers with programmable
amplification. It can drive a wide range
of motors from Watt to Kilowatt.
Software controlled drive strength allows …
