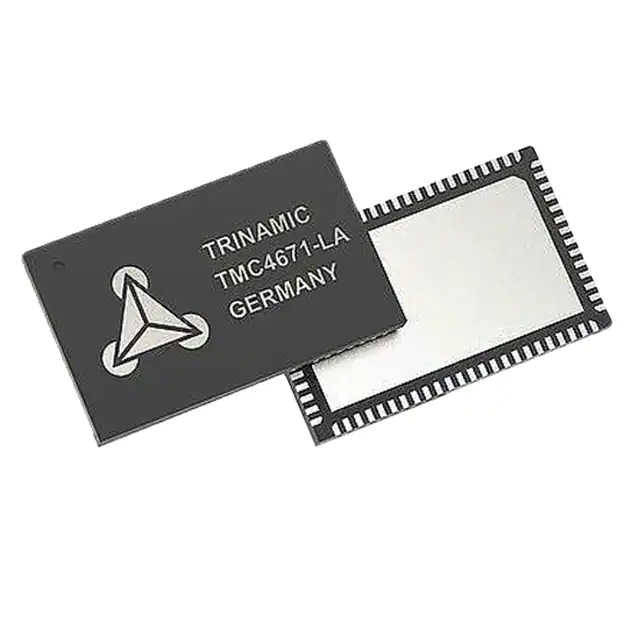

INTEGRATED CIRCUITS Dedicated Motion Controller for 2-/3-Phase PMSM TMC4671 Datasheet
IC Version V1.00 | Document Revision V1.06 • 2019-Feb-06
The TMC4671 is a fully integrated servo controller, providing Field Oriented Control for BLDC/PMSM
and 2-phase Stepper Motors as well as DC motors and voice coils. All control functions are implemented in hardware. Integrated ADCs, position sensor interfaces, position interpolators, enable
a fully functional servo controller for a wide range of servo applications. Features
• Servo Controller
w/ Field Oriented Control (FOC)
• Torque Control (FOC),
Velocity Control, Position Control
• Feed Forward Control Inputs
• Integrated ADCs, ∆Σ-ADC Frontend
• Encoder Engine: Hall analog/digital,
Encoder analog/digital
• Supports 3-Phase PMSM/BLDC,
2-Phase Stepper Motors,
and DC Motors
• Advanced PWM Engine (25kHz . 100kHz)
• Application SPI + Debug (UART, SPI)
• Step-Direction Interface (S/D) Applications
• Robotics
• Pick and Place Machines
• Factory Automation • E-Mobility
• Laboratory Automation …
