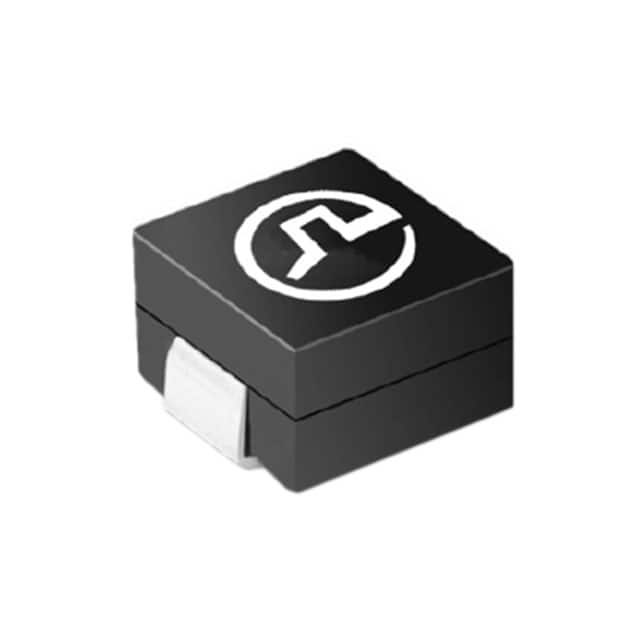

SMT Power Inductors Power Beads -PA051XNL, PA121XNL, PA151XNL Series Current Rating: Over 70Apk
Inductance Range: 72nH to 470nH
Four Package Sizes:
PA0512/PA1212: 7.0 x 7.0 x 4.96mm Max
PA0511/PA1211: 10.2 x 7.0 x 4.96mm Max
PA0515: 11.2 x 11.2 x9.0mm Max
PA0513/PA1513: 13.5 x 13.0 x 8.0mm Max
Electrical Specifications @ 25°C -Operating Temperature -40°C to +130°C 7,8
Part
Number Inductance
@ 0ADC
(nH ±20%) Inductance
@ Irated
(nH TYP) Irated
(ADC) 1 Saturation Current 3
(TYP) DCR
(mΩ)
2 Heating 4
Current
(A TYP) 25°C 100°C 58 45 46 38 PA0512NL and PA1212NL -7.0mm x 7.0mm x 4.96mm Max
PA0512.700NLT 72 72 31 PA0512.101NLT 105 102 31 PA0512.151NLT 150 134 24 30 24 PA1212.700NLT 72 72 31 58 45 PA1212.101NLT 105 102 31 46 38 PA1212.151NLT 150 134 24 30 24 0.32 ±9.4% 0.46 ±6.5% 31 31 PA0511NL and PA1211NL -10.2mm x 7.0mm x 4.96mm Max
PA0511.850NLT 85 85 31 70+ 70 PA0511.900NLT 100 100 31 70 65 PA0511.101NLT 120 120 31 52 42 PA0511.151NLT 155 150 31 40 36 PA0511.221NLT 220 176 25 33 25 PA1211.850NLT * 85 85 31 70+ 70 PA1211.900NLT * 100 100 31 70 65 PA1211.101NLT 120 120 31 52 42 PA1211.151NLT 155 150 31 40 36 PA1211.221NLT 220 176 25 33 25 68 59 50 44 43 36 30 23 0.39 ±7.7% 0.55 ±7.3% 31 31 PA0515NL -11.2mm x 11.2mm x 9.0mm Max
PA0515.221NLT 225 225 35 PA0515.271NLT 270 280 35 PA0515.321NLT 325 325 35 PA0515.471NLT 470 380 23 1 power.pulseelectronics.com 0.63 ±9.5% 35 SPM2007_29 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Power Beads -PA051XNL, PA121XNL, PA151XNL Series …
