UF5400, UF5401, UF5402, UF5403, UF5404, UF5405, UF5406, UF5407, UF5408
www.vishay.com Vishay General Semiconductor Soft Recovery Ultrafast Plastic Rectifier
FEATURES
• Glass passivated pellet chip junction
• Ultrafast reverse recovery time
• Low forward voltage drop
• Low switching losses, high efficiency
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106 DO-201AD • Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer and telecommunication. PRIMARY CHARACTERISTICS
IF(AV) 3.0 A VRRM 50 V, 100 V, 200 V, 300 V, 400 V,
500 V, 600 V, 800 V, 1000 V IFSM 150 A trr 50 ns, 75 ns VF 1.0 V, 1.7 V TJ max. 150 °C Package DO-201AD Diode variations Single die MECHANICAL DATA

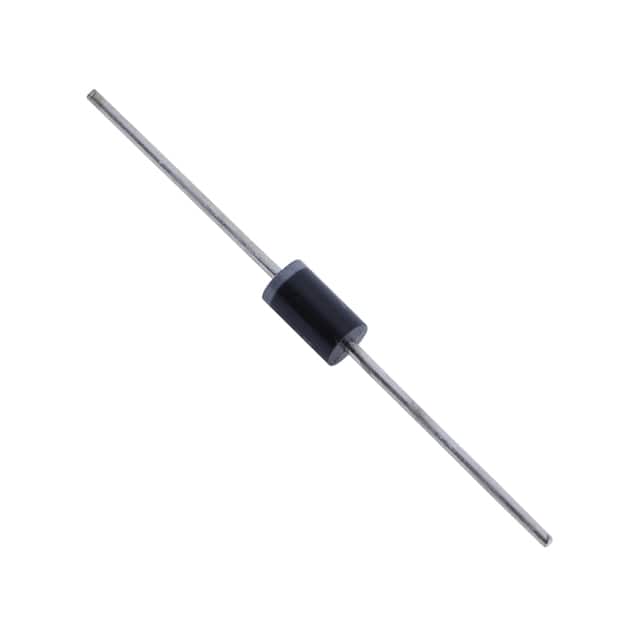

Case: DO-201AD
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 -RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test per Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER SYMBOL UF5400 UF5401 UF5402 UF5403 UF5404 UF5405 UF5406 UF5407 UF5408 UNIT Maximum repetitive peak
reverse voltage VRRM 50 100 200 300 400 500 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 210 280 350 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 300 400 500 600 800 1000 V Maximum average forward …
