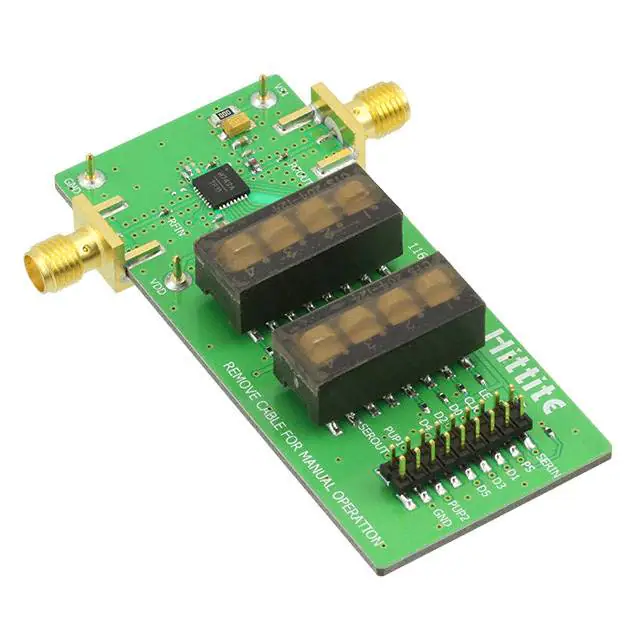

HMC742ALP5E
v01.1213 VARIABLE GAIN AMPLIFIERS -DIGITAL -SMT 0.5 dB LSB GaAs MMIC 6-BIT DIGITAL
VARIABLE GAIN AMPLIFIER, 70 MHz -4 GHz
Typical Applications Features The HMC742ALP5E is ideal for: -19.5 to 12 dB Gain Control in 0.5 dB Steps • Cellular/3G Infrastructure Power-up State Selection • WiBro / WiMAX / 4G High Output IP3: +39 dBm • Microwave Radio & VSAT TTL/CMOS Compatible
Serial, Parallel, or latched Parallel Control • Test Equipment and Sensors ±0.25 dB Typical Gain Step Error • IF & RF Applications Single +5V Supply
32 Lead 5x5 mm SMT Package: 25 mm2 Functional Diagram General Description
The HMC742ALP5E is a digitally controlled variable
gain amplifier which operates from 70 MHz to 4
GHz, and can be programmed to provide from -19.5
dB attenuation, to 12 dB of gain, in 0.5 dB steps.
The HMC742ALP5E delivers noise figure of 4 dB
in its maximum gain state, with output IP3 of up to
+39 dBm in any state. The dual mode gain control
interface accepts either a three-wire serial input or a 6
bit parallel word. The HMC742ALP5E also features a
user selectable power up state and a serial output for
cascading other serially controlled Hittite components.
The HMC742ALP5E is housed in an RoHS compliant
5x5 mm QFN leadless package, and requires minimal
external components. Electrical Specifications, TA = +25° C, 50 Ohm System Vdd = +5V, Vs= +5V
Parameter Min. Gain (Maximum Gain State)
Gain Control Range
Input Return Loss …
