Data Sheet RV1S9160A R08DS0167EJ0100
Rev.1.00
HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, Jun 4, 2019

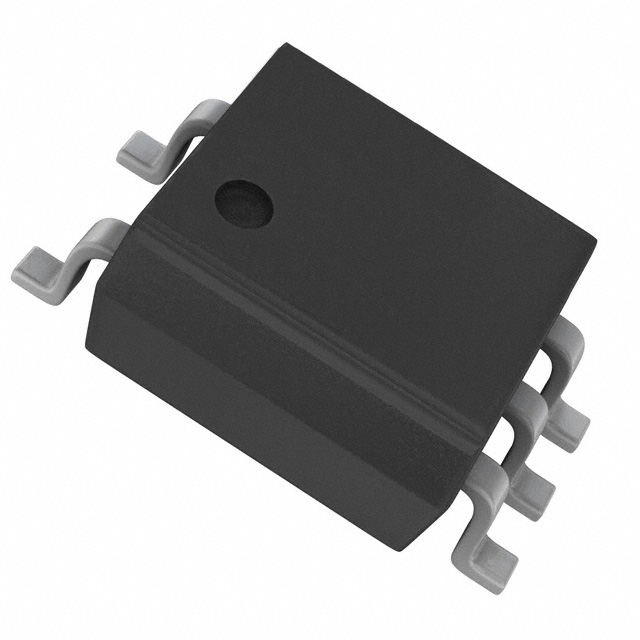

5-PIN SOP PHOTOCOUPLER DESCRIPTION
The RV1S9160A is a photocoupler featuring high-speed switching up to 15Mbps with active low output
logic which consist of an AlGaAs LED on the input side and an integrated circuit with a photodiode on the
output.
This product enables to low current operation on 3.3V/5V power supply with high noise-tolerant
CMR:50kV/us min. and high temperature operation up to Ta=125°C in logic interface circuit. FEATURES







 High speed communication (15 Mbps）
High temperature operation (-40 to +125°C）
High common mode (dv/dt) tolerant (CMH, CML = 50 kV/s MIN.）
High isolation voltage (BV = 3750 Vr.m.s.）
Low input drive current (IFHL = 2.0 mA MAX.)
Low voltage power supply operation (VDD = 2.7 V~5.5 V）
Low pulse width distortion (PWD = 20 ns MAX.) …
