Datasheet Broadcom HCNW2211-000E — Даташит
Very High CMR, Wide VCC Logic Gate Optocouplers
Datasheets
Very High CMR, Wide VCC Logic Gate Optocouplers
Цены
 Купить HCNW2211-000E на РадиоЛоцман.Цены — от 105 до 1 034 ₽38 предложений от 19 поставщиков Оптопара, с цифровым выходом, 1 канал, 5 кВ, 5 Мбод, DIP, 8 вывод(-ов) | |||
| HCNW2211-000E DIP8-400 | от 105 ₽ | ||
| HCNW2211-000E Avago Technologies | 99 ₽ | ||
| HCNW2211-000E Broadcom | от 796 ₽ | ||
| HCNW2211000E Avago Technologies | по запросу | ||
Подробное описание

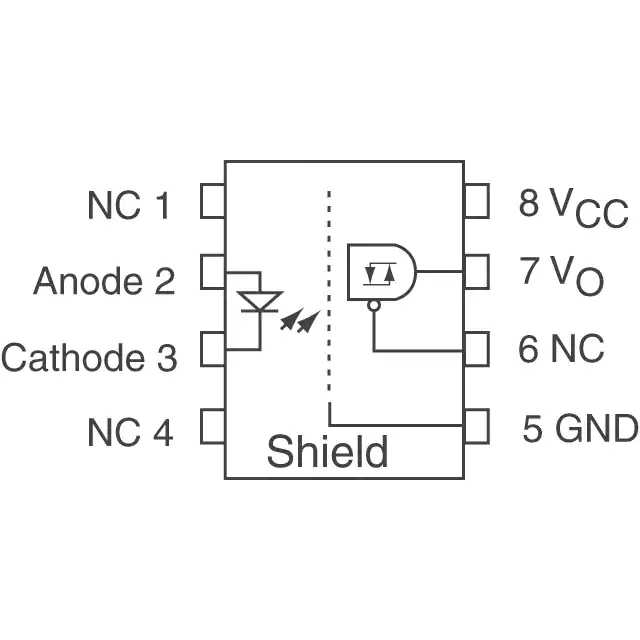

The HCNW2211 optocoupler is an optically-coupled logic gate.
It contains an AlGaAs LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, illuminating the need for additional waveshaping.
A superior internal shield on the HCNW2211 guarantees common mode transient immunity of 10 kV/ms at a common mode voltage of 1000 volts.
The electrical and switching characteristics of the HCNW2211 is guaranteed from -40 degrees C to 85 degrees C and a VCC from 4.5 volts to 20 volts. Low IF and wide VCC range allows compatibility with TTL, LSTTL, and CMOS logic and result in lower power consumption compared to other high speed couplers. Logic signals are transmitted with a typical propagation delay of 150 ns.
Другие варианты исполнения
HCNW2201 HCPL-0201 HCPL-0211 HCPL-2201 HCPL-2202 HCPL-2211 HCPL-2212 HCPL-2231 HCPL-2231 HCPL-2232
Модельный ряд
- HCNW2211 HCNW2211#300 HCNW2211#500 HCNW2211-000E HCNW2211-300E HCNW2211-500E
Классификация производителя
- Optocouplers and Opto-Isolators > Industrial Plastic > Digital Optocouplers > 5MBd Digital Optocouplers
Варианты написания:
HCNW2211000E, HCNW2211 000E
