PCMFxUSB3BA/C series Common-mode EMI filter for differential channels with
integrated bidirectional ESD protection
Rev. 2 — 14 August 2019 Product data sheet 1. General description
Common-mode ElectroMagnetic Interference (EMI) filters with integrated bidirectional ElectroStatic
Discharge (ESD) protection for one, two and three differential channels. The devices are designed
to provide low insertion loss for differential high-speed signals on each channel while unwanted
common-mode signals are attenuated.
Each differential channel incorporates two signal lines that are coupled by integrated coils. Diodes
provide protection to downstream components from ESD voltages up to ±15 kV on each signal line.
Table 1. Product overview

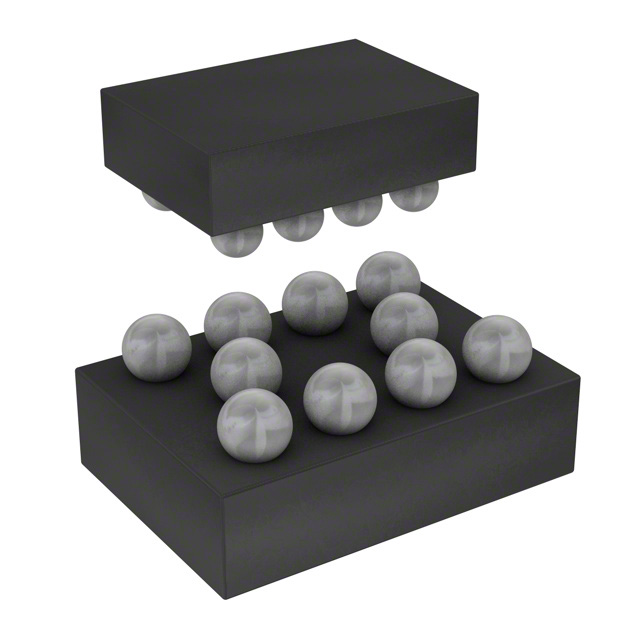

Type number Number of channels Package Name PCMF1USB3BA/C 1 WLCSP5 PCMF2USB3BA/C 2 WLCSP10 PCMF3USB3BA/C 3 WLCSP15 2. Features and benefits
•
•
•
•
•
• One, two and three differential channels common-mode EMI filters with integrated ESD
protection
ESD protection up to ±15 kV contact discharge according to IEC 61000-4-2
Superior common-mode suppression over a wide frequency range
Superior RF performance compared to other integrated filters or discrete filters with external
ESD protection
Extremely high symmetry between line pairs …
