BC817DPN NPN/PNP general purpose transistor
27 November 2019 Product data sheet 1. General description
NPN/PNP general-purpose double transistors in an SOT457 (SC-74) plastic package. 2. Features and benefits
•
•
• Reduces component count
Reduces pick and place costs
AEC-Q101 qualified 3. Applications
• General purpose switching and amplification 4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter Conditions Min Typ Max Unit -45 V -500 mA -1 A -400 Per transistor; for the PNP transistor with negative polarity
VCEO collector-emitter
voltage IC collector current ICM peak collector current open base single pulse; tp ≤ 1 ms Per transistor unless otherwise specified; for the PNP transistor with negative polarity
hFE
[1] DC current gain VCE = 1 V; IC = 100 mA [1] 160 Pulsed test: tp ≤ 300 μs; δ ≤ 0.02 5. Pinning information
Table 2. Pinning information
Pin
Symbol
Description

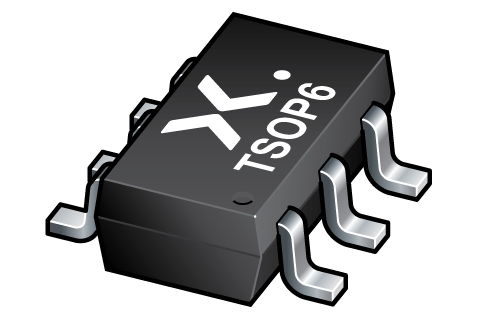

1 E1 emitter TR1 2 B1 base TR1 3 C2 collector TR2 4 E2 emitter TR2 5 B2 base TR2 6 C1 collector TR1 Simplified outline Graphic symbol 6 5 4 1 2 3 SC-74; TSOP6 (SOT457) C1 B2 TR2 TR1
E1 E2 B1 C2
sym019 BC817DPN Nexperia NPN/PNP general purpose transistor 6. Ordering information …
