ZPY3V9 to ZPY100
www.vishay.com Vishay Semiconductors Zener Diodes
FEATURES
• Silicon planar power Zener diodes
• For use in stabilizing and clipping circuits with
high power rating
• The Zener voltages are graded according to the
international E 12 standard.
• These diodes are also available in the MELF
case with the type designation ZMY3V9 to
ZMY100
• AEC-Q101 qualified DESIGN SUPPORT TOOLS AVAILABLE • Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912 3D 3D 3D Models PRIMARY CHARACTERISTICS
PARAMETER VALUE UNIT VZ range nom. 3.9 to 100 V Test current IZT 5 to 100 mA VZ specification Pulse current Circuit configuration Single ORDERING INFORMATION
ORDERING CODE TAPED UNITS PER REEL MINIMUM ORDER
QUANTITY ZPY3V9 to ZPY100-series-TR 5000 (52 mm tape on 13" reel) 25 000/box ZPY3V9 to ZPY100-series-TAP 5000 per ammopack
(52 mm tape) 25 000/box DEVICE NAME
ZPY3V9 to ZPY100

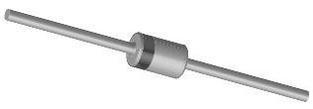

ZPY3V9 to ZPY100 PACKAGE
PACKAGE NAME WEIGHT MOLDING COMPOUND
FLAMMABILITY RATING MOISTURE SENSITIVITY
LEVEL SOLDERING CONDITIONS DO-41 (DO-204AL) 310 mg UL 94 V-0 MSL level 1
(according J-STD-020) Peak temperature max. 260 °C ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) …
