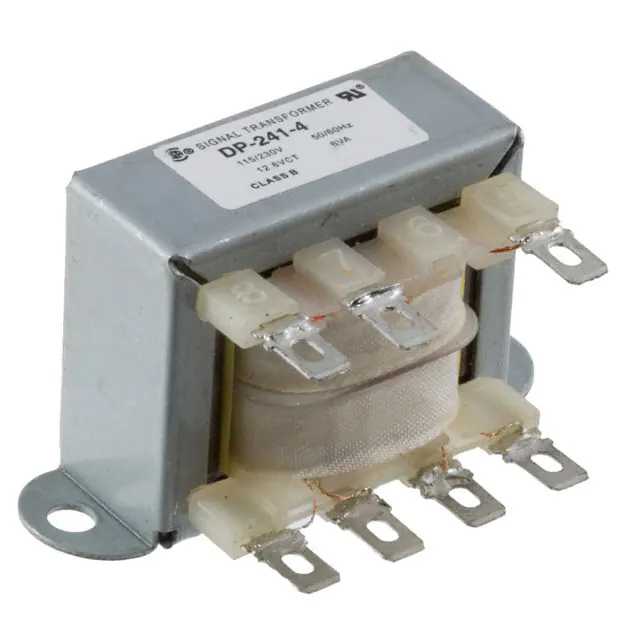

Chassis Mount 241 Series
Two-4-One™ Power Transformers Split Bobbin Construction Providing Superior
Isolation
Signal’s 241 transformers use a split bobbin construction that
provides superior isolation and low capacitive coupling. General Specifications
• • • • • • Power -2.4 VA to 100 VA
Dielectric Strength -2500 Vrms Hipot
Primaries -Single or dual primaries (115 V or 115/230 V -50/60 Hz)
Secondary -Single center tapped secondary
Terminals -Solder lug / quick connect type terminals
Insulation -Class B (130° C) UL 1446 E66312 Agency Certifications
• UL recognized to UL 506 / UL 5085-1, File # E63829
• CSA certified to C22.2 #66.1, File # 221070 RoHS Compliant belfuse.com/signal 241 Series Datasheet
Part Number Selection
Part Number
